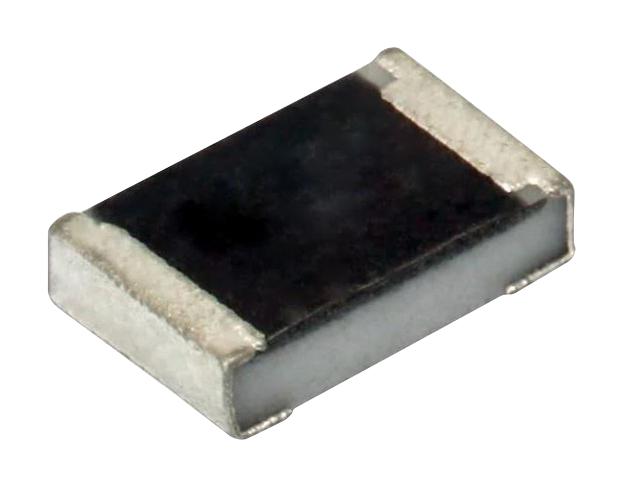

RK73H1JTTD2372F

RK73H1JTTD2372F Specifications

Manufacturer: KOA Speer
Part Number: RK73H1JTTD2372F
Product Type: High Precision Thick Film Chip Resistor
Resistance Value: 23.7 kΩ
Tolerance: ±1%
Temperature Coefficient of Resistance (TCR): ±100 ppm/°C
Power Rating: 0.1 W (1/10 W)
Maximum Working Voltage: 75 V
Maximum Overload Voltage: 150 V
Operating Temperature Range: -55°C to +155°C
Package / Case: 0603 (1608 Metric)
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant

Key Features

The RK73H1JTTD2372F is a high-precision thick film chip resistor from KOA Speer, offering a resistance value of 23.7 kΩ with a tolerance of ±1%. It features a temperature coefficient of ±100 ppm/°C, ensuring stable performance across a wide temperature range. With a power rating of 0.1 W and maximum working voltage of 75 V, this resistor is suitable for various electronic applications requiring precise resistance values. Its compact 0603 package and surface-mount design facilitate high-density PCB layouts. Additionally, the resistor is AEC-Q200 qualified, making it suitable for automotive applications, and is RoHS compliant, adhering to environmental and safety standards.

Applications

Precision electronic circuits
Signal processing
Automotive electronics
Communication devices
Medical equipment

Product Overview

The RK73H1JTTD2372F resistor is designed for applications requiring high precision and stability. Its thick film construction provides reliable performance, while the ±1% tolerance ensures accurate resistance values. The resistor’s low TCR of ±100 ppm/°C minimizes resistance variation due to temperature changes, making it ideal for environments with fluctuating temperatures. Its 0603 package size allows for compact circuit designs, and the surface-mount configuration supports automated assembly processes. Compliant with RoHS standards and AEC-Q200 qualified. The RK73H1JTTD2372F meets global environmental and automotive industry regulations, making it a suitable choice for environmentally conscious and automotive designs.
