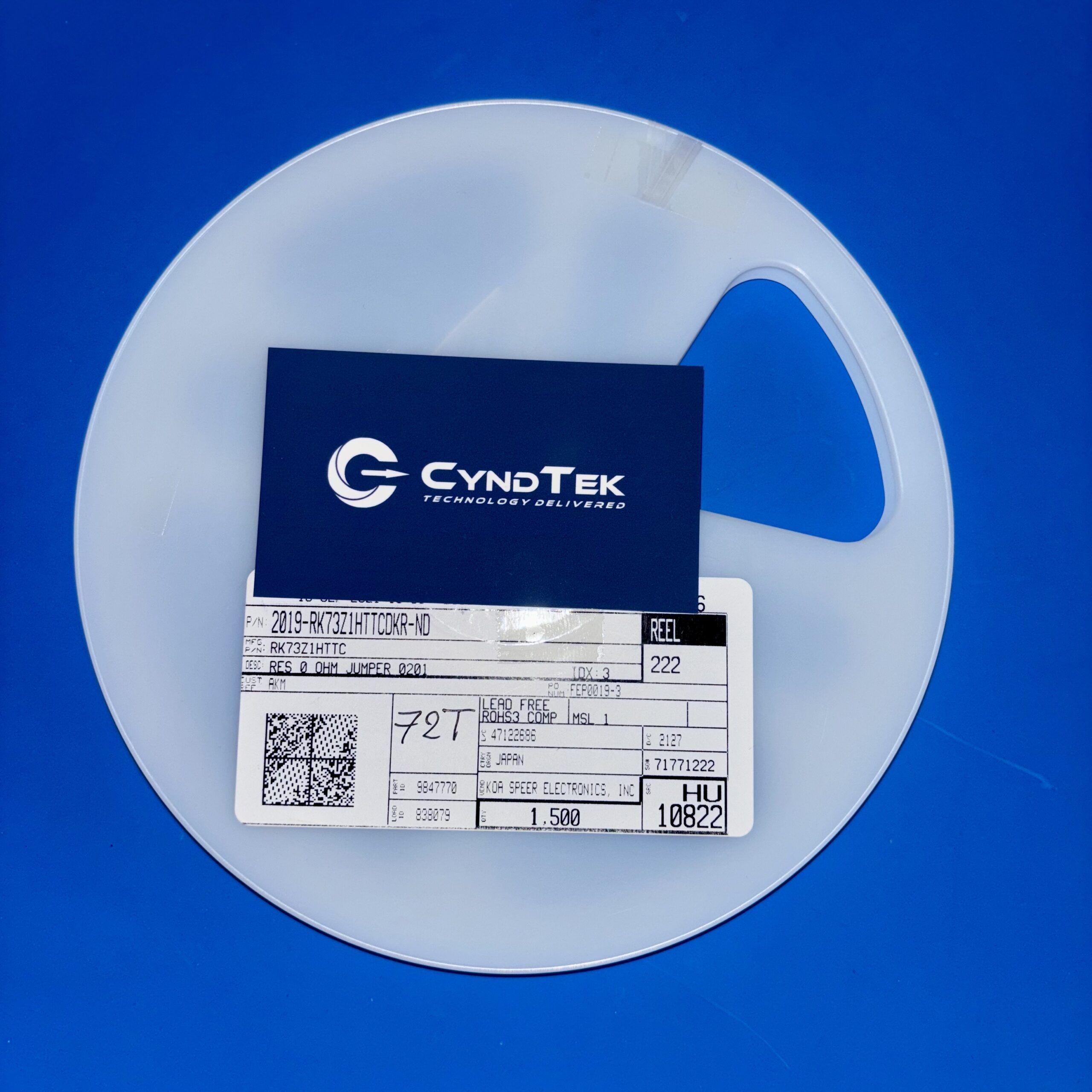

RK73Z1HTTC

RK73Z1HTTC Specifications

Manufacturer: KOA Speer Electronics, Inc.
Part Number: RK73Z1HTTC
Product Type: Zero Ohm Jumper Chip Resistor
Resistance: 0 Ohms
Power Rating: Not specified
Temperature Coefficient: Not applicable
Operating Temperature Range: -55°C to +125°C
Package / Case: 0201 (0603 Metric)
Dimensions: 0.024″ L x 0.012″ W (0.60mm x 0.30mm)
Height – Seated (Max): 0.010″ (0.26mm)
Mounting Type: Surface Mount
Features: Automotive AEC-Q200 Qualified, Moisture Resistant
RoHS Status: RoHS Compliant

Key Features

The RK73Z1HTTC from KOA Speer Electronics is a zero-ohm jumper chip resistor designed for surface-mount applications. Its 0201 package size allows for high-density PCB layouts, making it suitable for compact electronic devices. The resistor operates reliably over a temperature range of -55°C to +125°C, accommodating various environmental conditions. It is AEC-Q200 qualified, indicating its suitability for automotive applications, and features moisture resistance, enhancing its durability in humid environments.

Applications

Zero-ohm jumpers like the RK73Z1HTTC are commonly used in circuit board designs to connect traces, allowing for configuration flexibility without the need for actual resistive properties. They serve as convenient placeholders for future circuit modifications or as test points during development. Their use simplifies PCB design and manufacturing by enabling easy circuit alterations without redesigning the board layout.

Product Overview

KOA Speer Electronics’ RK73Z1HTTC zero-ohm jumper chip resistor offers designers a reliable and space-saving solution for circuit interconnections. Its compact 0201 package supports modern miniaturized electronic designs, while its compliance with AEC-Q200 standards ensures performance in automotive environments. The moisture-resistant feature further extends its applicability to conditions where humidity is a concern.
