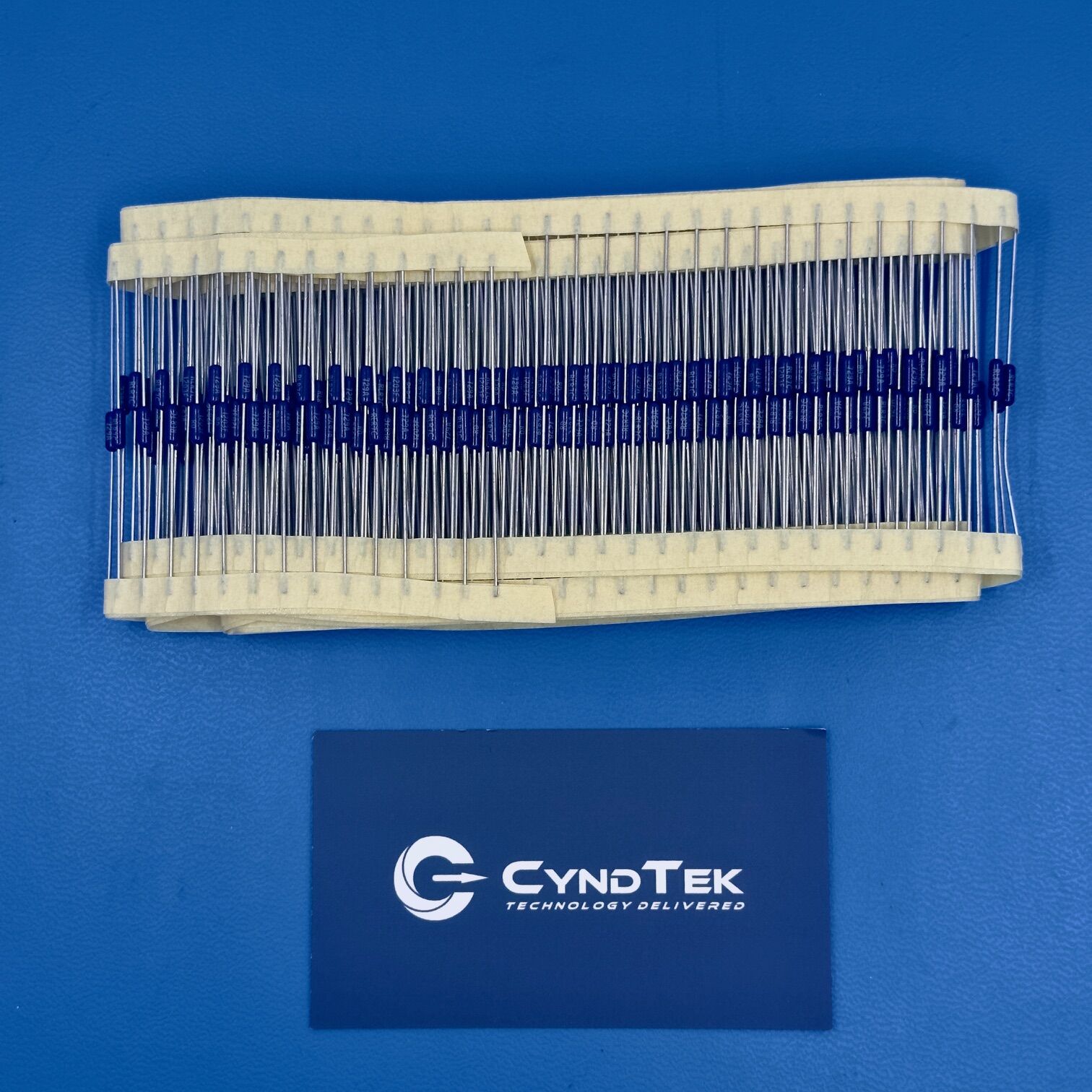

RLR07C1203FR Specifications
Manufacturer: Vishay
Part Number: RLR07C1203FR
NSN: 5905-00-764-5206
Product Type: Fixed Resistor
Resistance Value: 120 kΩ
Tolerance: ±1%
Power Rating: 0.25 W
Resistor Type: Metal Film
Temperature Coefficient: ±100 ppm/°C
Mounting Type: Through Hole
Lead Style: Axial Lead
Military Specification: MIL-R-39017
Operating Temperature Range: -55°C to +175°C
Packaging: Factory
Key Features
The RLR07C1203FR is a precision metal film resistor designed for high-reliability electronic systems. It provides a resistance value of 120 kΩ with tight ±1% tolerance for accurate circuit performance. Additionally, the metal film construction ensures stable resistance characteristics over wide temperature ranges. The axial lead configuration allows straightforward installation into through-hole printed circuit boards and legacy electronic assemblies. Because the resistor meets MIL-R-39017 requirements, it is widely used in aerospace, defense, and industrial electronics. As a result, it delivers dependable electrical performance in demanding operating environments.
Applications
Military communication electronics
Aerospace avionics circuits
Industrial control equipment
Precision instrumentation systems
Analog signal conditioning networks
Power regulation circuits
Embedded control platforms
High-reliability electronic assemblies
Product Overview
The RLR07C1203FR from Vishay provides stable resistance control for demanding electronic systems. First, the 120 kΩ resistance value supports voltage divider networks and precision analog circuits. Furthermore, the ±1% tolerance ensures predictable electrical performance across production designs. Because metal film technology provides superior stability compared to carbon resistors, it maintains accurate resistance values during long-term operation.
Moreover, compliance with MIL-R-39017 standards supports integration into military-qualified electronic systems. In addition, the axial lead configuration simplifies installation into traditional through-hole PCB designs. Therefore, the resistor is suitable for both maintenance replacement programs and new circuit designs. Overall, this Vishay resistor offers reliable performance, stable resistance characteristics, and long service life in mission-critical applications.
