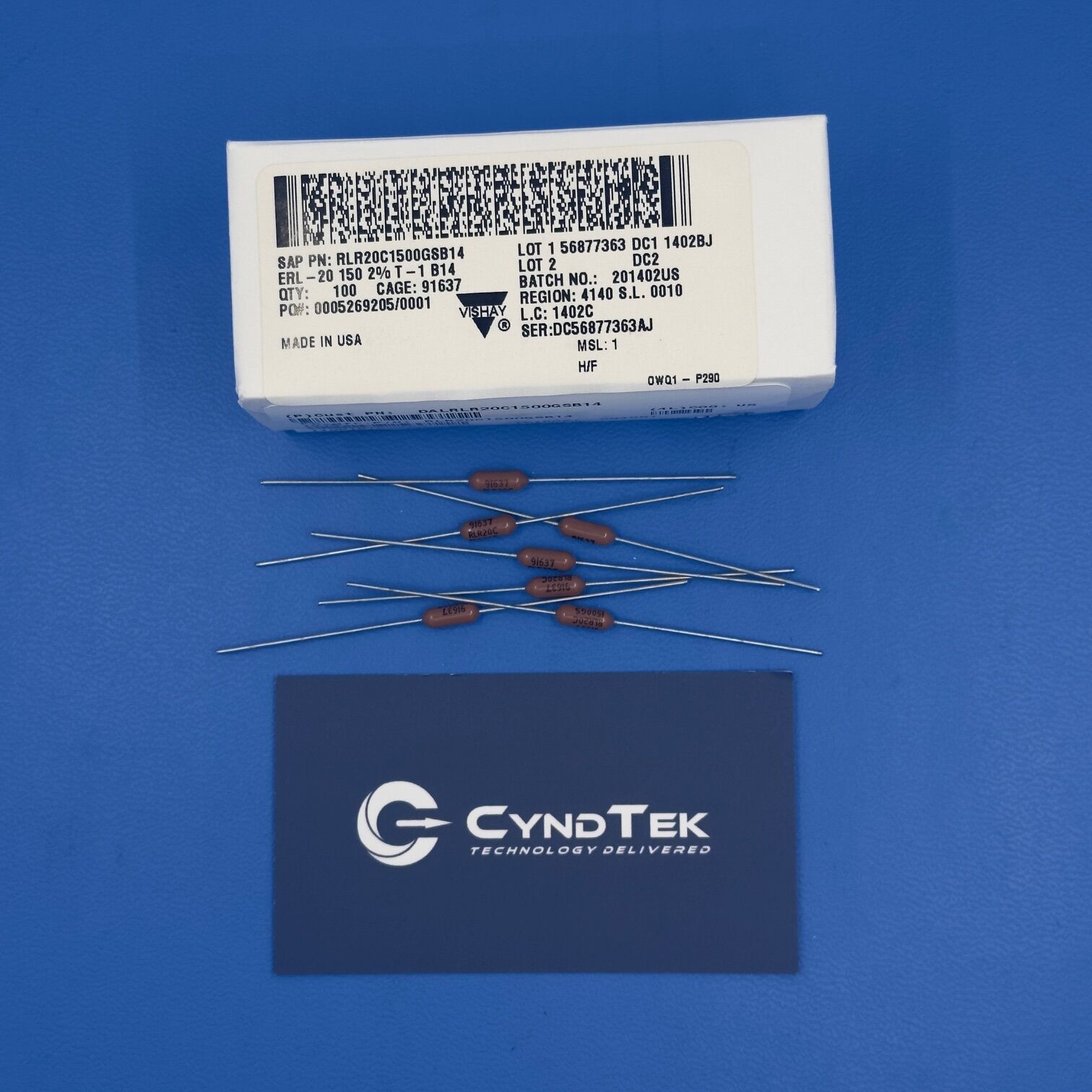

RLR20C1500GSB14 Specifications
Manufacturer: Vishay
Part Number: RLR20C1500GSB14
NSN: 5905-01-092-6454
Product Type: Fixed Resistor
Resistance Value: 150 Ω
Tolerance: ±2%
Power Rating: 0.5 W
Resistor Type: Metal Film
Temperature Coefficient: ±100 ppm/°C
Mounting Type: Through Hole
Lead Style: Axial Lead
Military Specification: MIL-R-39017
Operating Temperature Range: -55°C to +175°C
Packaging: Factory
Key Features
The RLR20C1500GSB14 is a military-grade metal film resistor designed for precise resistance control in high-reliability electronic systems. It provides a resistance value of 150 ohms with ±2% tolerance for dependable circuit operation. Additionally, the metal film construction ensures stable electrical characteristics across wide temperature ranges. The axial lead configuration supports straightforward installation in through-hole PCB assemblies and legacy military hardware. Because the resistor complies with MIL-R-39017 standards, it is commonly selected for aerospace, defense, and industrial control electronics. As a result, it offers consistent performance and long-term reliability in demanding operating environments.
Applications
Military communication systems
Aerospace avionics electronics
Defense control assemblies
Industrial automation equipment
Precision instrumentation circuits
Analog signal conditioning networks
Power regulation circuits
High-reliability embedded electronics
Product Overview
The RLR20C1500GSB14 from Vishay delivers stable resistance performance for military and industrial electronic designs. First, the 150 ohm resistance value supports current limiting, voltage division, and signal conditioning circuits. Furthermore, the ±2% tolerance ensures predictable electrical behavior in precision analog networks. Because metal film technology provides improved stability compared to carbon-based resistors, it maintains consistent resistance across temperature variations.
Moreover, MIL-R-39017 qualification confirms suitability for regulated defense procurement environments. In addition, the axial lead format simplifies integration into traditional through-hole circuit boards. Therefore, this resistor is ideal for maintenance replacements, system upgrades, and new design applications. Overall, the device provides dependable electrical stability, durable construction, and reliable long-term performance in mission-critical electronic systems.
