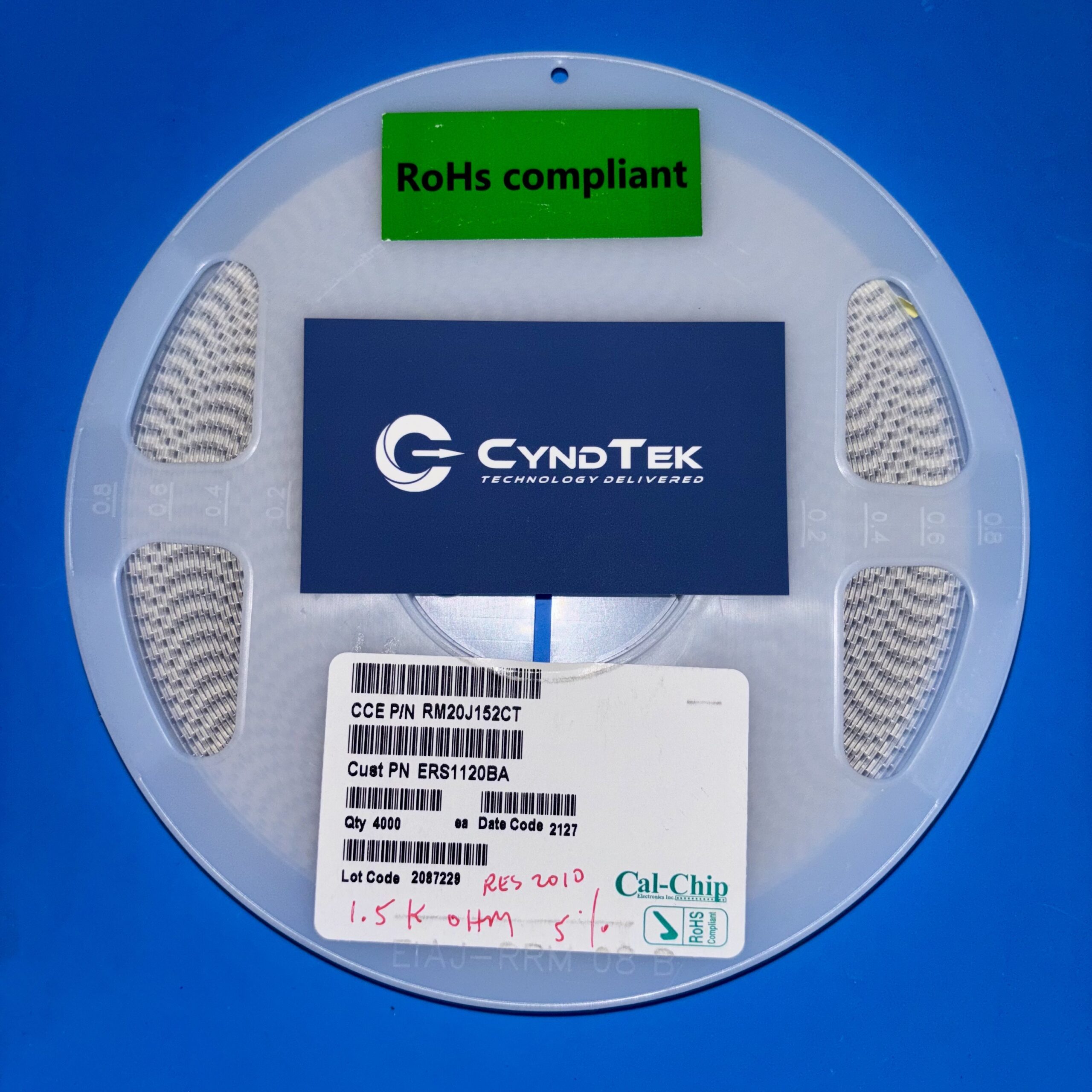

RM20J152CT Specifications
Manufacturer: Cal-Chip Electronics, Inc.
Part Number: RM20J152CT
Product Type: Surface-Mount Thick Film Resistor
Resistance: 1.5 kΩ
Tolerance: ±5%
Power Rating: 0.75W (3/4W)
Temperature Coefficient: ±100 ppm/°C
Operating Temperature Range: -55°C to +155°C
Package / Case: 2010 (5.00mm x 2.50mm)
Height – Seated (Max): 0.65mm
Number of Terminations: 2
Composition: Thick Film
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant
Key Features
The RM20J152CT from Cal-Chip Electronics is a surface-mount thick film resistor offering a resistance of 1.5 kΩ with a tolerance of ±5%. Designed to handle a power rating of 0.75W, it is suitable for applications requiring moderate power dissipation. The resistor exhibits a temperature coefficient of ±100 ppm/°C, ensuring stable performance across a wide operating temperature range from -55°C to +155°C. Encased in a 2010 package, it measures 5.00mm in length, 2.50mm in width, and has a maximum seated height of 0.65mm, facilitating integration into various PCB layouts. Its thick film composition provides reliable electrical performance and durability.
Applications
Voltage division and biasing networks in analog circuits.
Current limiting in LED drivers and display backlighting systems.
Pull-up or pull-down resistors in digital logic circuits.
Signal conditioning in sensor interfaces.
Termination resistors in communication interfaces to match impedance.
Product Overview
Cal-Chip Electronics’ RM20J152CT is engineered for reliable performance in electronic circuits requiring precise resistance values and moderate power handling. Its surface-mount design and 2010 package size make it adaptable to automated assembly processes and suitable for high-density PCB layouts. The resistor’s wide operating temperature range and stable temperature coefficient ensure consistent performance in various environmental conditions. Compliance with RoHS standards underscores its suitability for environmentally conscious designs.
