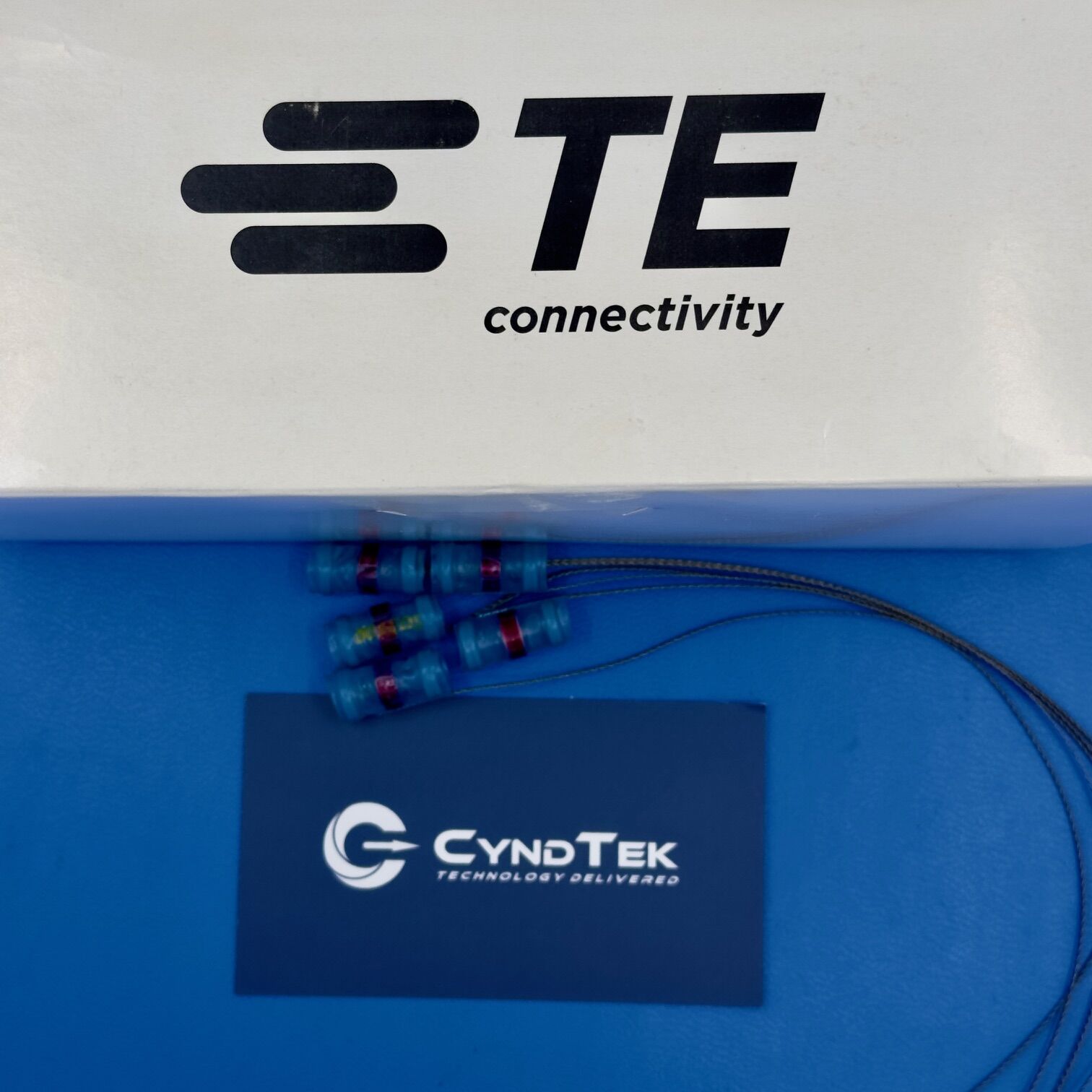

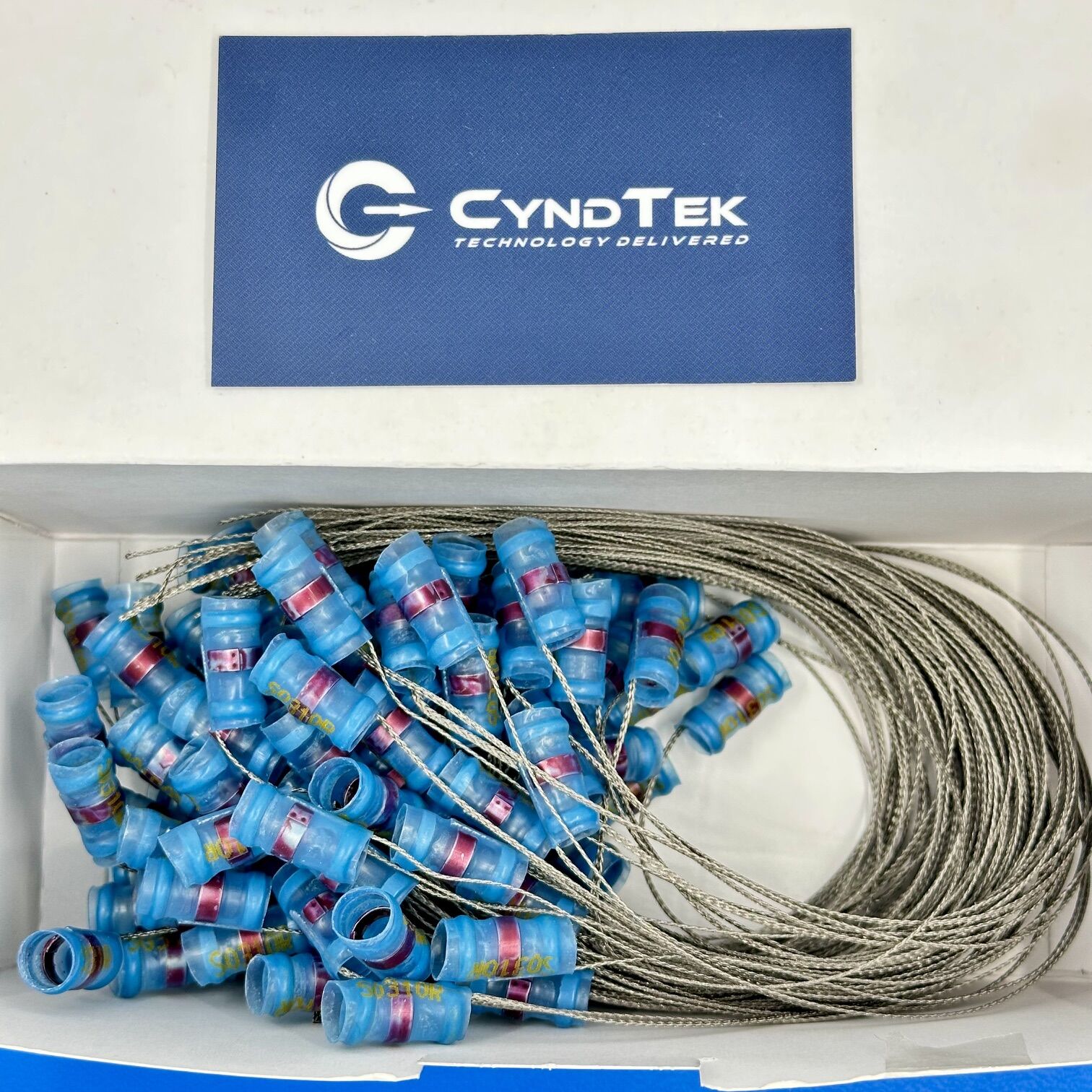

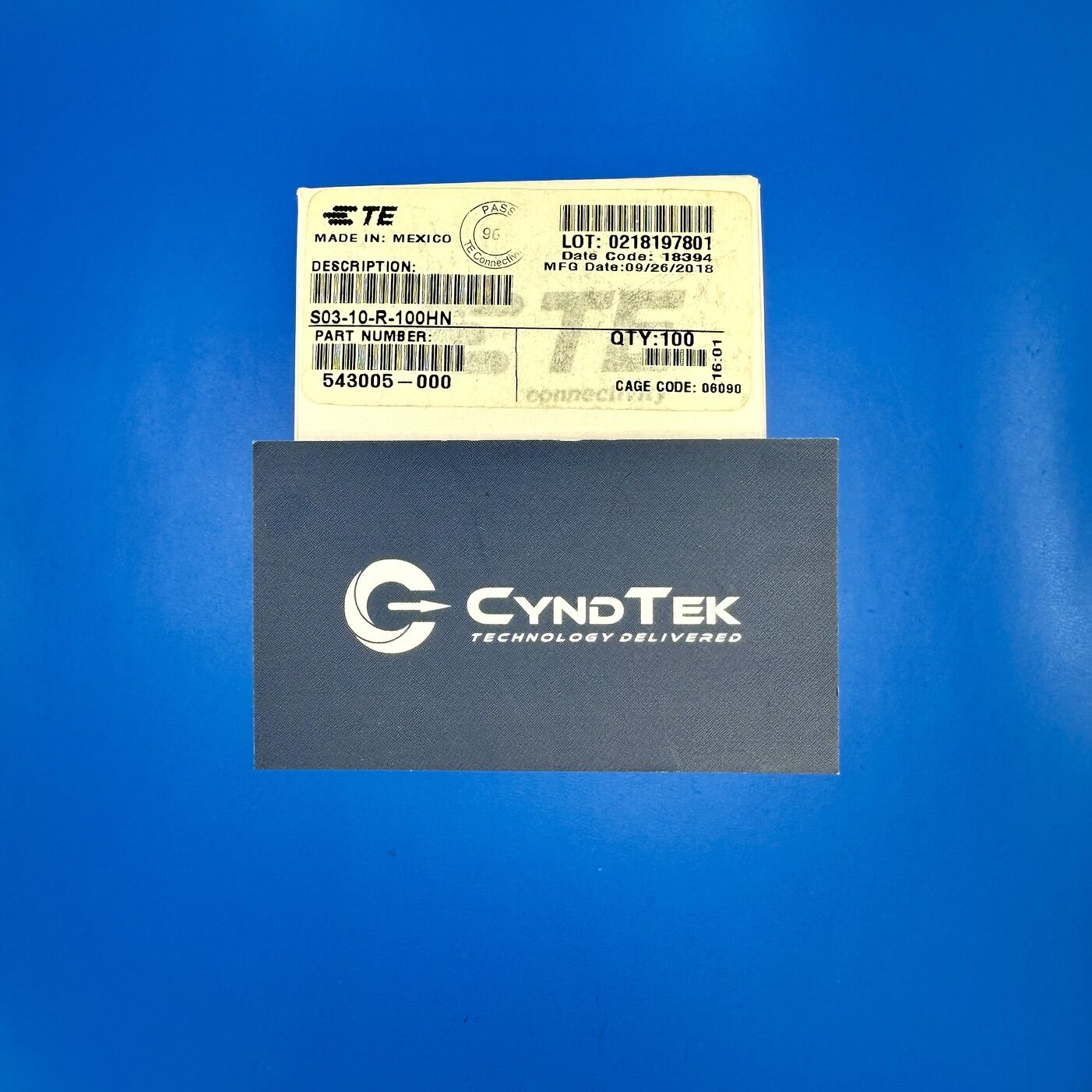

S03-10-R-100HN Specifications
Manufacturer: TE Connectivity
Part Number: S03-10-R-100HN
NSN: 5940-01-548-7085
Product Type: Solder Sleeve
Sleeve Type: Wire-to-Wire
Wire Range: 0.275 to 0.300 Inch Bundle Diameter
Insulation Type: Heat Shrinkable
Shielding: Environmental Seal
Material: Polyolefin Tubing
Color: Clear with Red Identification
Termination Method: Pre-Fluxed Solder Insert
Operating Temperature Range: -55°C to +125°C
Application Class: Aerospace and Defense
Packaging: Factory
Key Features
The S03-10-R-100HN is a high-reliability solder sleeve designed for wire-to-wire splicing in aerospace and defense assemblies. It features an integrated pre-fluxed solder insert for consistent electrical bonding. Additionally, the heat shrinkable tubing provides environmental sealing after installation. The transparent sleeve allows visual inspection of solder flow during termination. Because it is engineered for controlled heating applications, it supports uniform and repeatable results. As a result, it delivers dependable electrical and mechanical performance in demanding environments.
Applications
Military aircraft harness assemblies
Ground vehicle wiring systems
Naval electronic modules
Aerospace instrumentation wiring
Defense communication systems
Shielded cable splicing
Environmental sealed wire repairs
High-reliability electrical harness assemblies
Product Overview
The S03-10-R-100HN from TE Connectivity delivers secure and sealed wire splicing performance. First, the integrated solder preform simplifies installation and reduces assembly time. Furthermore, the heat shrink insulation enhances strain relief and environmental protection. Because it supports wire bundles within the specified diameter range, it integrates into regulated harness systems.
Moreover, the transparent tubing allows technicians to verify proper solder flow during installation. In addition, the heat-activated sealing ensures protection against moisture and contaminants. Therefore, it is suitable for both new harness production and maintenance replacements. Overall, this solder sleeve provides efficient termination, environmental durability, and long-term reliability.
