S03KZZ2P-A

S03KZZ2P-A

$25.00

HEATSINK MIX MEDIA 25G PCB

  • Manufacturer: Alpha Novatech
  • Part Number:  S03KZZ2P-A
  • Packaging: Bulk
  • Quantity: 1
  • Datecode: N/A

Availability: 37 in stock

SKU TR3F Category Brand:

S03KZZ2P-A Specifications:

  • Manufacturer: Alpha Novatech Inc.
  • Product Series: zQSFP Plus – zQSFP1
  • Part Number: S03KZZ2P-A
  • Material: Thermoplastic
  • Color: Black
  • Number of Contacts: 38
  • Contact Material: Copper Alloy
  • Contact Plating: Gold over Nickel (0.762 µm thickness)
  • Current Rating: 0.5 A
  • Voltage Rating: 30 V AC/DC
  • Mating Cycles: 50
  • Mounting Style: Surface Mount
  • Orientation: Right Angle
  • Termination Method: Surface Mount
  • Keying: No
  • PCB Retention: Yes
  • Ground to Panel/PCB: Yes
  • UL Certification: E29179
  • Product Type: Receptacle
  • Packaging: Bulk
Key Features:
  • High-Speed Data Transmission: Designed for 25 Gbps data rates, suitable for high-bandwidth applications.
  • Compact Design: Features a 30 mm x 30 mm footprint with a height of 25 mm, optimizing space in electronic assemblies.
  • Efficient Thermal Management: Incorporates hexagonal pin fins that enhance natural convection, providing a thermal resistance of 9.5 °C/W, effectively dissipating heat from high-power components.
  • Durable Construction: Made from black anodized aluminum (A6063), ensuring robustness and longevity.
  • Flexible Mounting: Surface mount termination allows for easy integration into various PCB designs.
  • Compliance: Meets RoHS 3 standards, ensuring environmental safety.
Applications:
  • High-Speed Networking: Ideal for applications requiring rapid data transmission, such as network switches and routers.
  • Data Centers: Enhances performance in data centers by efficiently managing heat dissipation in high-density configurations.
  • Telecommunications: Supports reliable data communication in telecom equipment.
  • Enterprise Servers: Improves server performance by maintaining optimal operating temperatures for critical components.
  • Storage Systems: Ensures efficient heat management in high-performance storage solutions.
Product Overview:

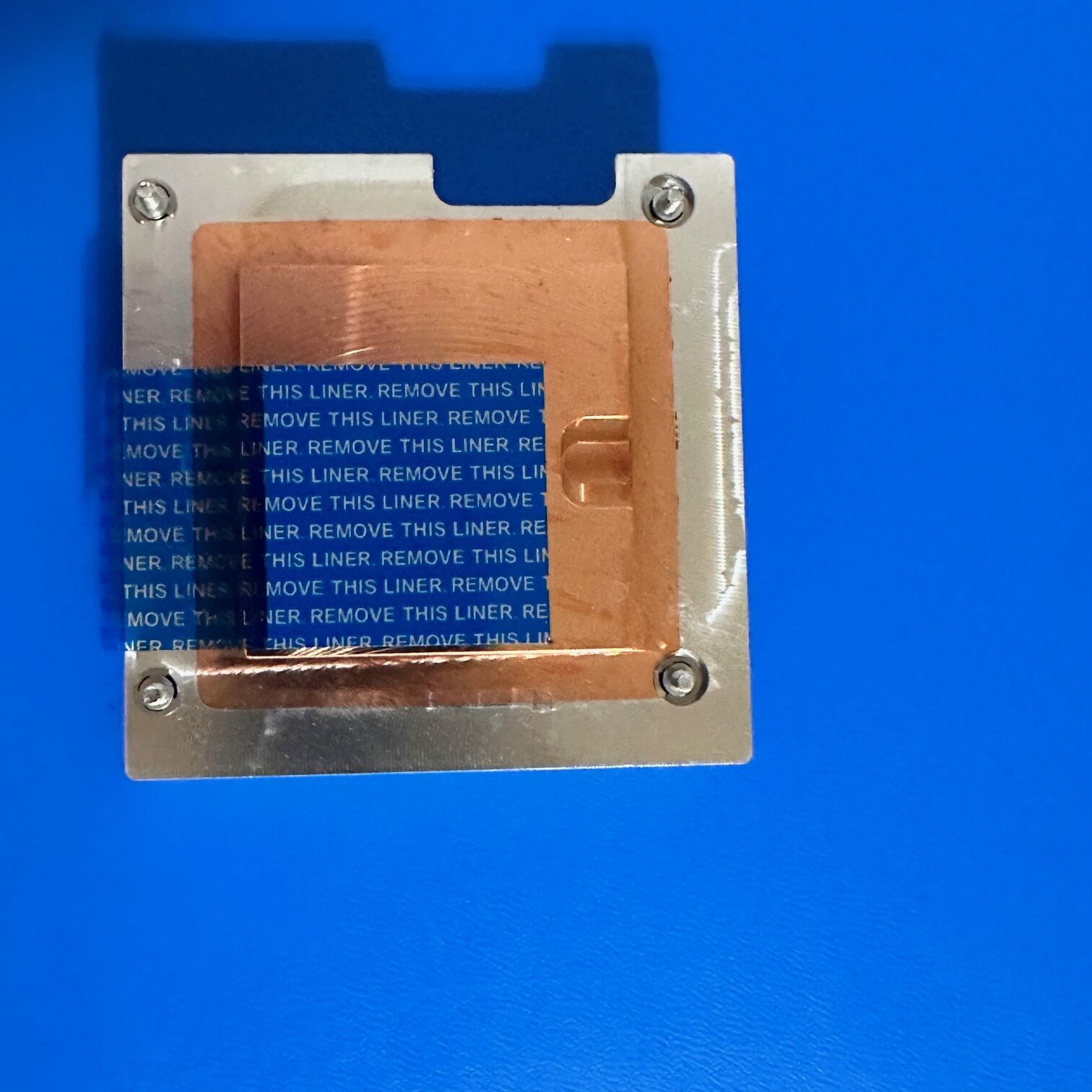

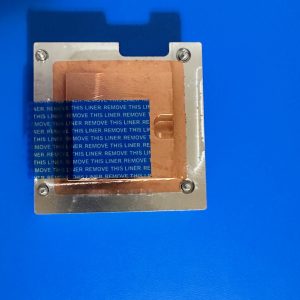

The S03KZZ2P-A is a high-performance heat sink manufactured by Alpha Novatech Inc., specifically designed for 25 Gbps data transmission applications. Its compact 30 mm x 30 mm footprint with a height of 25 mm makes it suitable for space-constrained environments. The heat sink’s hexagonal pin fins are strategically arranged to enhance natural convection, achieving a thermal resistance of 9.5 °C/W, effectively dissipating heat from high-power components. Constructed from durable black anodized aluminum (A6063), it ensures longevity and robustness. The surface mount termination facilitates easy integration into various PCB designs, and its compliance with RoHS 3 standards underscores its commitment to environmental safety.

Contact Us:

For additional information regarding our products, feel free to get in touch with us. You can call us at 770-870-1760 or email us at info@Cyndtek.com. We look forward to assisting you and ensuring your satisfaction with all of our Cyndtek products.
