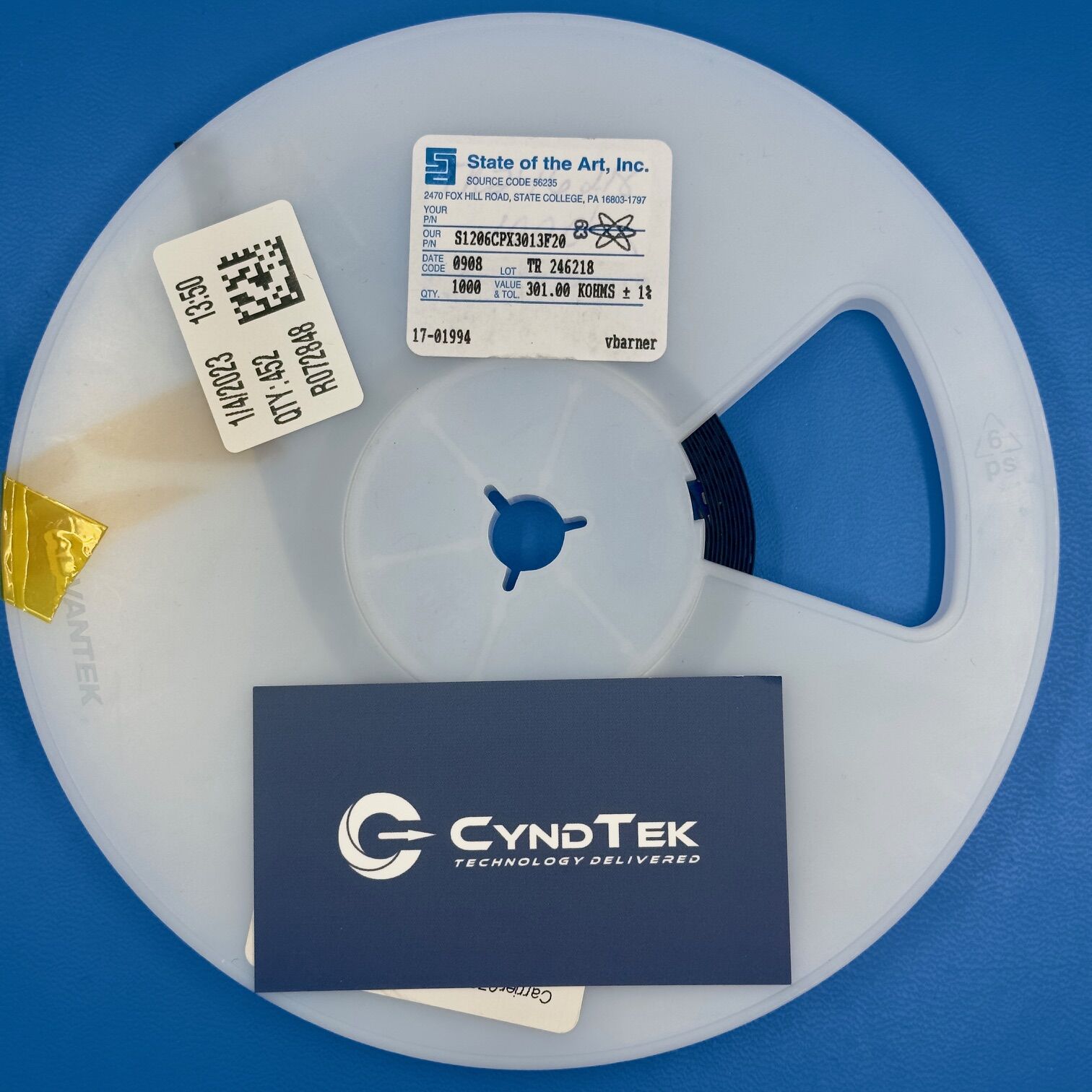

S1206CPX3013F20 Specifications
Manufacturer: State of the Art
Part Number: S1206CPX3013F20
NSN: 5905-01-393-1693
Product Type: Chip Resistor
Resistance Value: 301 kOhms
Tolerance: ±1%
Power Rating: 0.25 Watt
Package Size: 1206
Mounting Type: Surface Mount
Construction: Precision Thick Film
Temperature Coefficient: ±100 ppm/°C
Operating Temperature Range: -55°C to +155°C
Compliance: Military Qualified
Packaging: Factory
Key Features
The S1206CPX3013F20 is a precision surface mount resistor designed for aerospace and defense electronic assemblies. It provides 301 kOhms resistance with ±1% tolerance for accurate signal control. Additionally, the 1206 package size supports compact PCB layouts. The thick film construction ensures stable electrical performance across temperature variations. Because it is qualified for military applications, it integrates directly into regulated defense programs. As a result, it supports high-reliability circuits requiring dependable resistance accuracy.
Applications
Military aircraft avionics boards
Ground vehicle communication modules
Naval radar signal conditioning circuits
Aerospace instrumentation PCBs
Defense electronic subsystems
Precision voltage divider networks
Signal filtering assemblies
High-reliability surface mount circuits
Product Overview
The S1206CPX3013F20 from State of the Art delivers consistent resistance performance in demanding environments. First, its 301 kOhms value supports accurate voltage division and signal conditioning. Furthermore, the ±1% tolerance ensures predictable circuit behavior. Because it uses thick film construction, it provides dependable thermal stability.
Moreover, the 1206 surface mount format enables efficient automated PCB assembly. In addition, its wide operating temperature range supports aerospace and defense requirements. Therefore, it is suitable for both new production builds and maintenance replacements. Overall, this chip resistor provides dependable electrical accuracy and long-term reliability in compact electronic systems.
