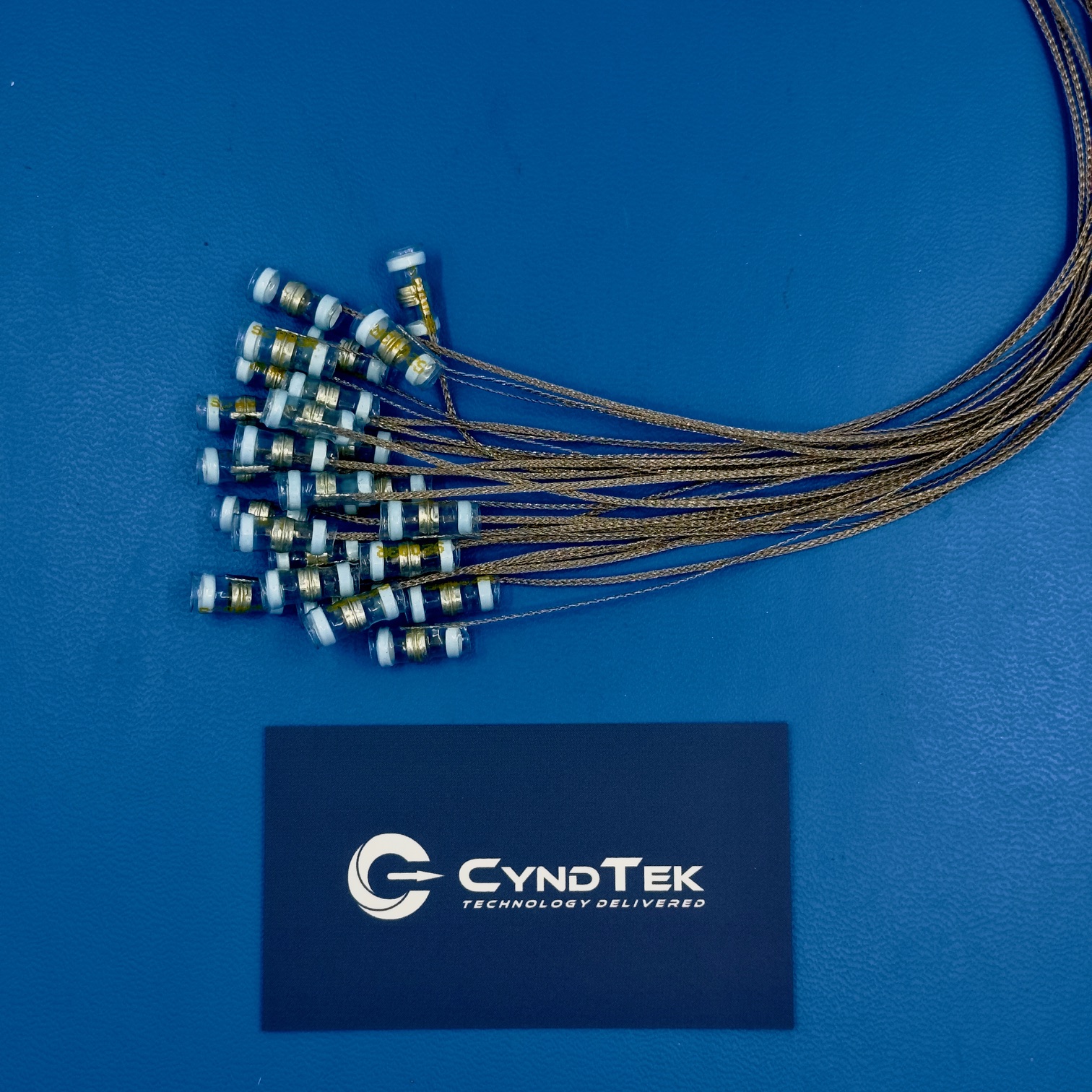

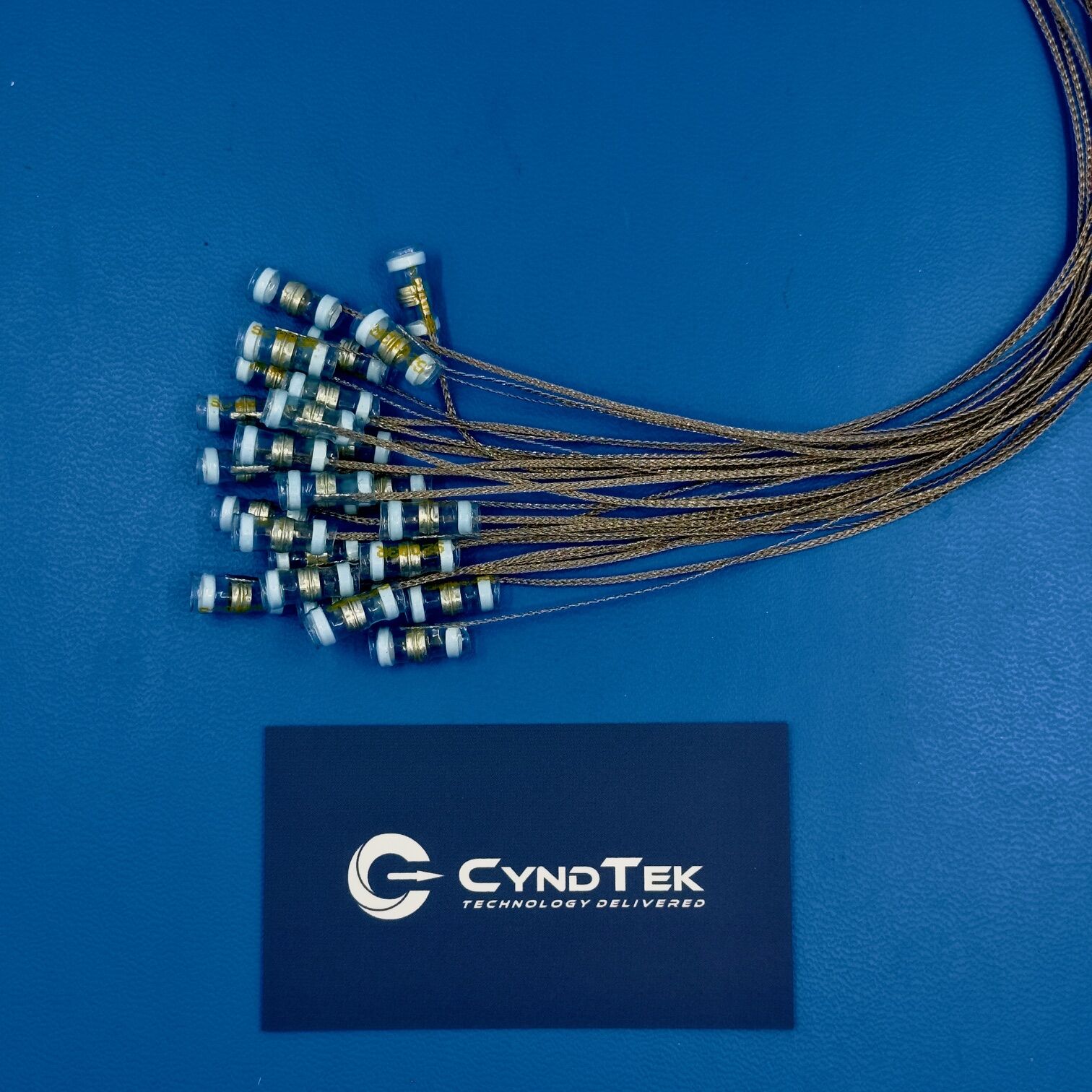

S200-3-01-100HN Specifications
Manufacturer: TE Connectivity
Product Category: Solder Sleeve Wire Splice
Part Number: S200-3-01-100HN
Sleeve Type: Environmental Wire-to-Wire Splice
Wire Range: 0.17–0.20 Inch Bundle Diameter
Construction: Prefluxed Solder Ring with Heat Shrink
Insulation Material: Heat-Shrinkable Fluoropolymer
Color: Transparent
Sealing Method: Heat Activated
Temperature Rating: High Temperature Rated
Application Type: Inline Wire Splicing
Compliance: Aerospace and Military Applications
Product Condition: New
Key Features
The S200-3-01-100HN solder sleeve provides a dependable environmental wire-to-wire splice solution. Because it integrates solder and heat-shrink tubing in a single assembly, it simplifies installation and sealing. In addition, the controlled shrink ratio supports proper insulation recovery around the splice. The transparent sleeve also allows visual inspection during termination. Therefore, it is well suited for aerospace and high-reliability wiring systems.
Applications
Aircraft wiring harness splicing
Military avionics cable repair
Industrial control wiring assemblies
High-reliability cable fabrication
Defense electronic system maintenance
Environmental wire sealing programs
Product Overview
The S200-3-01-100HN from TE Connectivity is designed for wire-to-wire splicing within a 0.17 to 0.20 inch bundle range. It features a prefluxed solder insert positioned inside heat-shrinkable fluoropolymer tubing. Because heat activation completes both soldering and environmental sealing, technicians can reduce assembly time while maintaining consistency.
Moreover, the fluoropolymer insulation provides strong resistance to heat, vibration, and chemical exposure. This makes the sleeve suitable for aerospace and defense applications where durability is critical. In addition, the controlled solder flow promotes secure electrical continuity.
As a result, S200-3-01-100HN solder sleeves are widely used in regulated wiring assemblies requiring dependable performance. Cyndtek supplies new TE Connectivity components ready for immediate deployment.
