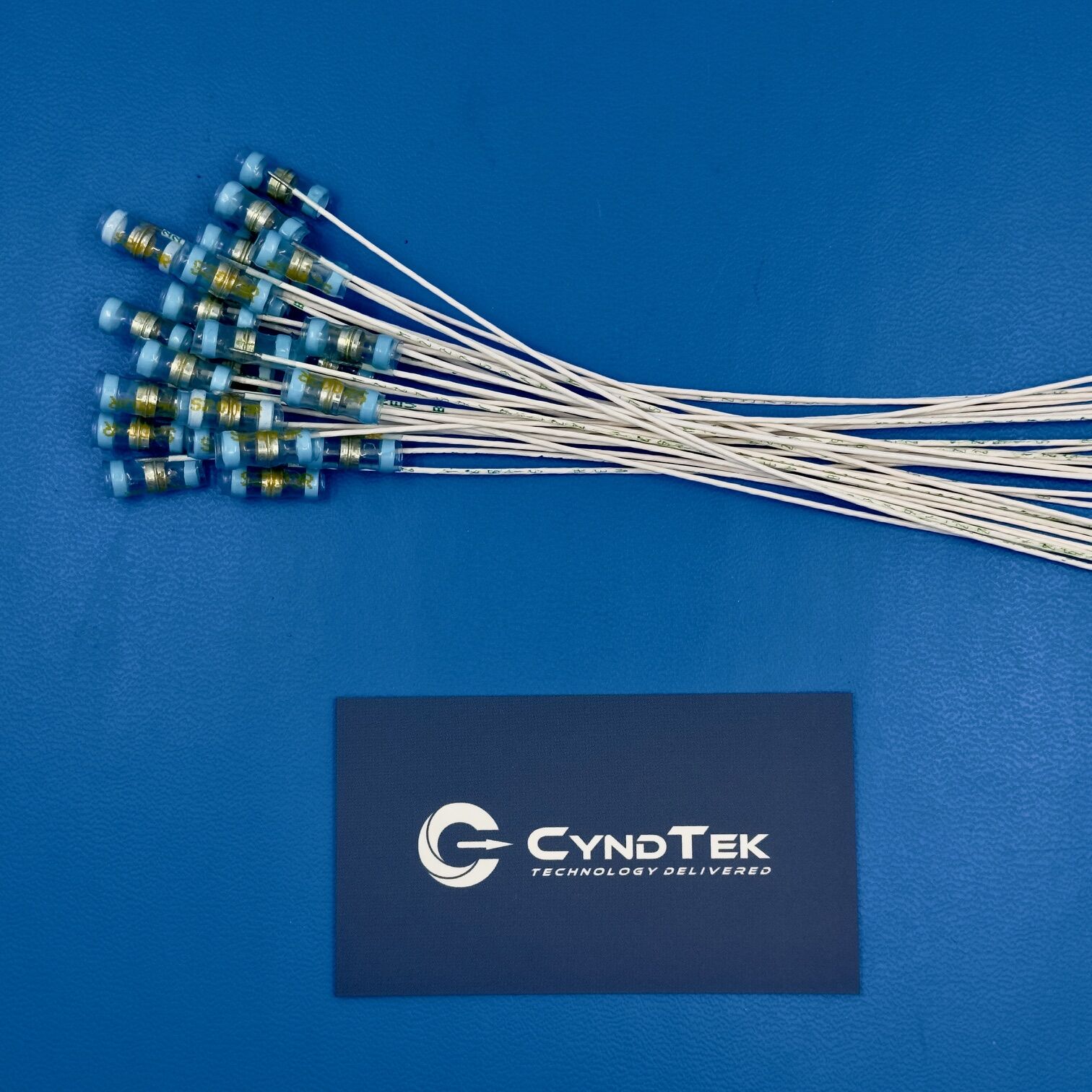

S200-3-W1-22-9 Specifications
Manufacturer: TE Connectivity
Product Category: Solder Sleeve Wire Splice
Part Number: S200-3-W1-22-9
Wire Gauge: 22 AWG
Sleeve Type: Environmental Solder Sleeve
Insulation Material: Clear Fluoropolymer
Color: Clear
Temperature Rating: High Temperature Rated
Voltage Rating: Aerospace Grade
Application Type: Inline Wire Splice
Compliance: Aerospace and Military Applications
Mounting Style: Heat Shrink Installation
Product Condition: New
Key Features
The S200-3-W1-22-9 solder sleeve provides a reliable environmental wire splice solution for 22 AWG conductors. Because it combines solder and heat-shrink tubing in one assembly, it simplifies wire termination and sealing. In addition, the clear fluoropolymer sleeve allows visual inspection during installation. The design also supports strain relief and moisture resistance. Therefore, it is well suited for aerospace and high-reliability wiring applications.
Applications
Aircraft wiring harness repair
Military avionics wire splicing
Industrial control panel wiring
High-reliability cable assemblies
Defense electronic systems
Maintenance and retrofit programs
Product Overview
The S200-3-W1-22-9 from TE Connectivity is an environmental solder sleeve designed for 22 AWG wire splicing. It integrates a prefluxed solder ring and heat-shrink insulation in a single component. Because heat activation completes both the solder joint and environmental seal, installation time is reduced.
Moreover, the fluoropolymer insulation provides high-temperature performance and chemical resistance. This makes the sleeve suitable for aerospace and defense platforms that demand long-term durability. In addition, the transparent tubing allows technicians to verify proper solder flow during assembly.
As a result, engineers and maintenance teams rely on S200-3-W1-22-9 solder sleeves for secure and compliant wire splicing. Cyndtek supplies new TE Connectivity components ready for immediate deployment.
