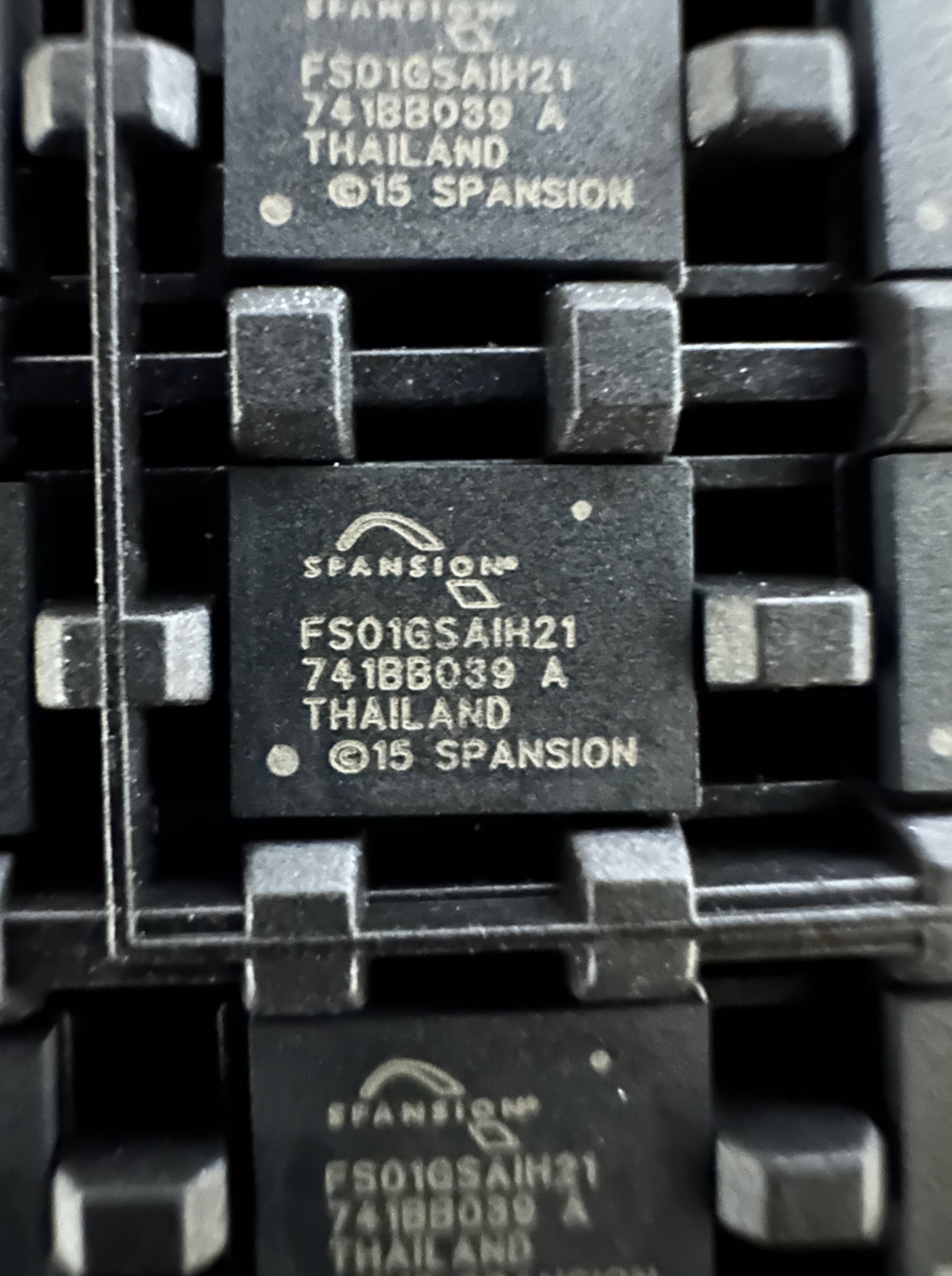

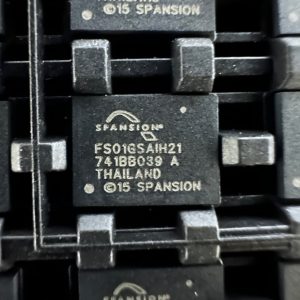

S70FS01GSAGBHI210

S70FS01GSAGBHI210 Specifications:

• Access Time: 6 ns (for certain operations) | 8 ns (for others)
• Flash Memory Type: NOR
• IC Case / Package: FBGA
• IC Mounting: Surface Mount
• Interfaces: Serial-SPI
• Memory Density: 1 bit per memory cell
• Number of Pins: 24
• Operating Temperature Range: -40°C to 85°C
• Nominal Supply Voltage: 1.8V

Additional Information:

• SPI with Multi-I/O:
  • SPI Clock polarity and phase modes 0 and 3
  • DDR support
  • Extended Addressing: 24- or 32-bit address options
  • Serial Command subset and footprint compatible with S25FL1-K, S25FL-P, and S25FL-S SPI families
  • Multi I/O Command subset and footprint compatible with S25FL-P, S25FL1-K, and S25FL-S SPI families

Read Features:

• Commands:
  • Normal, Fast, Dual I/O, Quad I/O, DDR Quad I/O
• Modes:
  • Burst Wrap, Quad Peripheral Interface (QPI)
• Additional Features:
  • Serial Flash Discoverable Parameters (SFDP) and Common Flash Interface (CFI) for configuration information.

Program Capabilities:

• 256 or 512 Bytes Page Programming buffer
• Program suspend and resume
• Automatic Error Correcting Code (ECC) – internal hardware ECC with single bit error correction

Erase Options:

• Hybrid Sector Option:
  • Set of eight 4 KB sectors and one 224 KB sector at the top or bottom of address space; all remaining sectors of 256 KB
• Uniform Sector Option:
  • Physical uniform 256 KB blocks
• Erase suspend and resume
• Erase status evaluation
• 100,000 Program-Erase Cycles on any sector, minimum
• 20-year data retention, minimum

Security Features:

• OTP array of 1024 Bytes
• Block Protection:
  • Status Register bits control protection against program or erase of a contiguous range of sectors.
  • Hardware and software control options
• Advanced Sector Protection (ASP):
  • Individual sector protection controlled by boot code or password
  • Option for password control of read access

Technology:

• Cypress 65 nm MirrorBit Technology with Eclipse Architecture

Power and Temperature:

• Single Supply Voltage with CMOS I/O:
  • 1.7V to 2.0V
• Temperature Range:
  • Industrial (40 °C to +85 °C)

Package (all Pb-free):

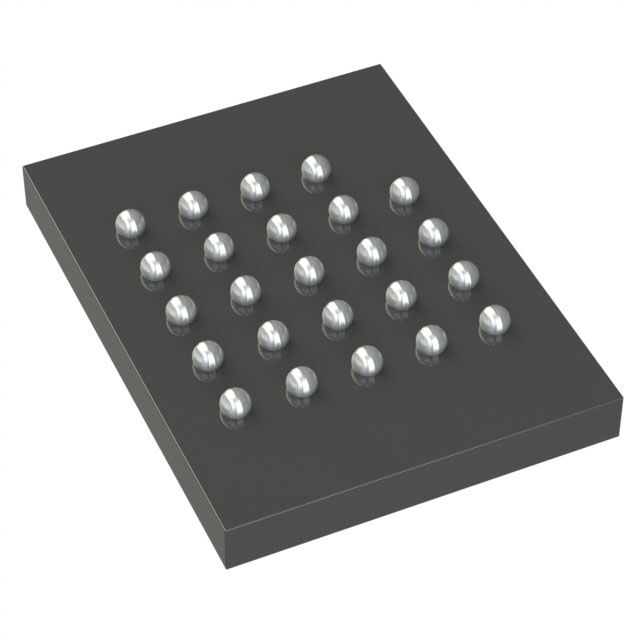

• BGA-24 6 x 8 mm (5 x 5 ball footprint)
