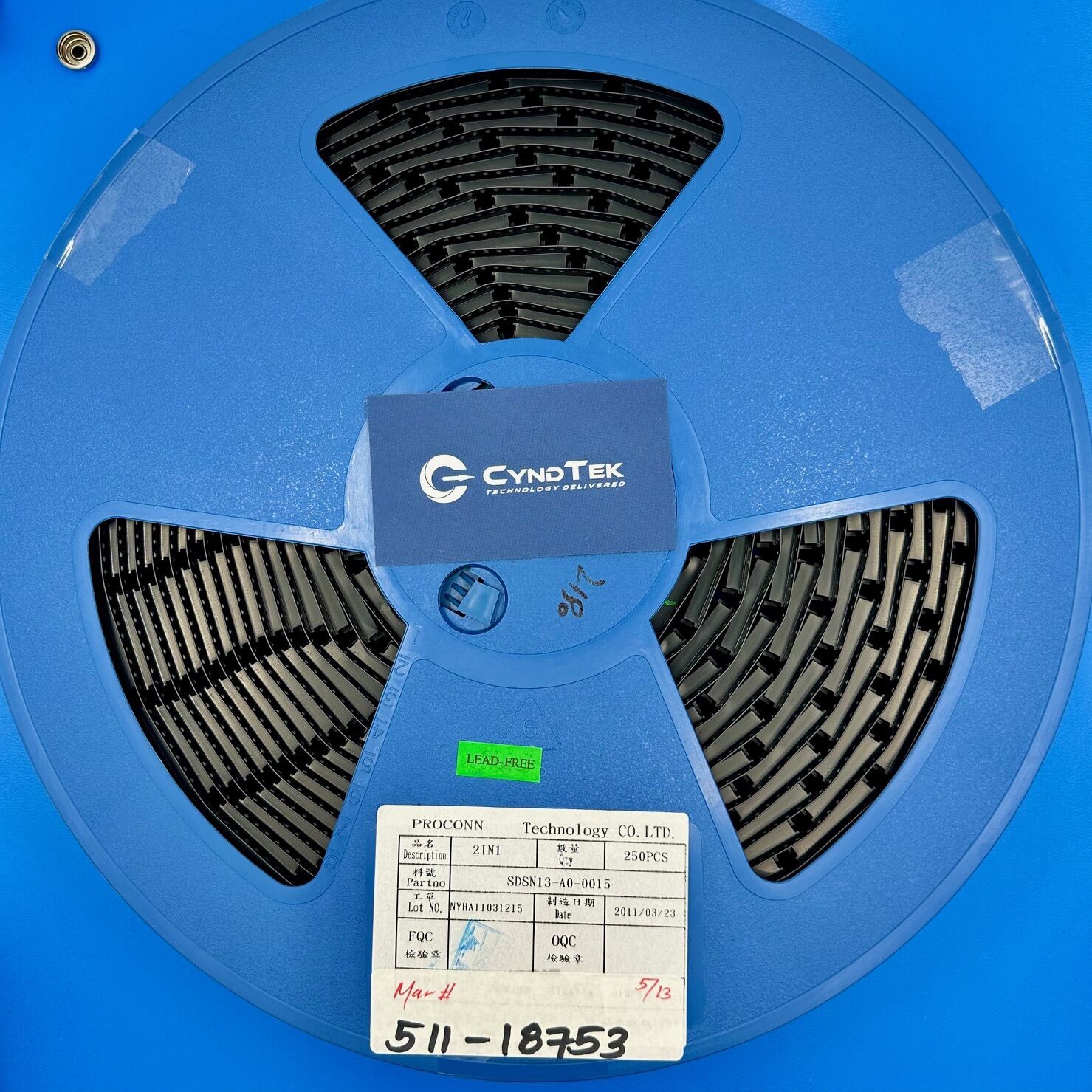

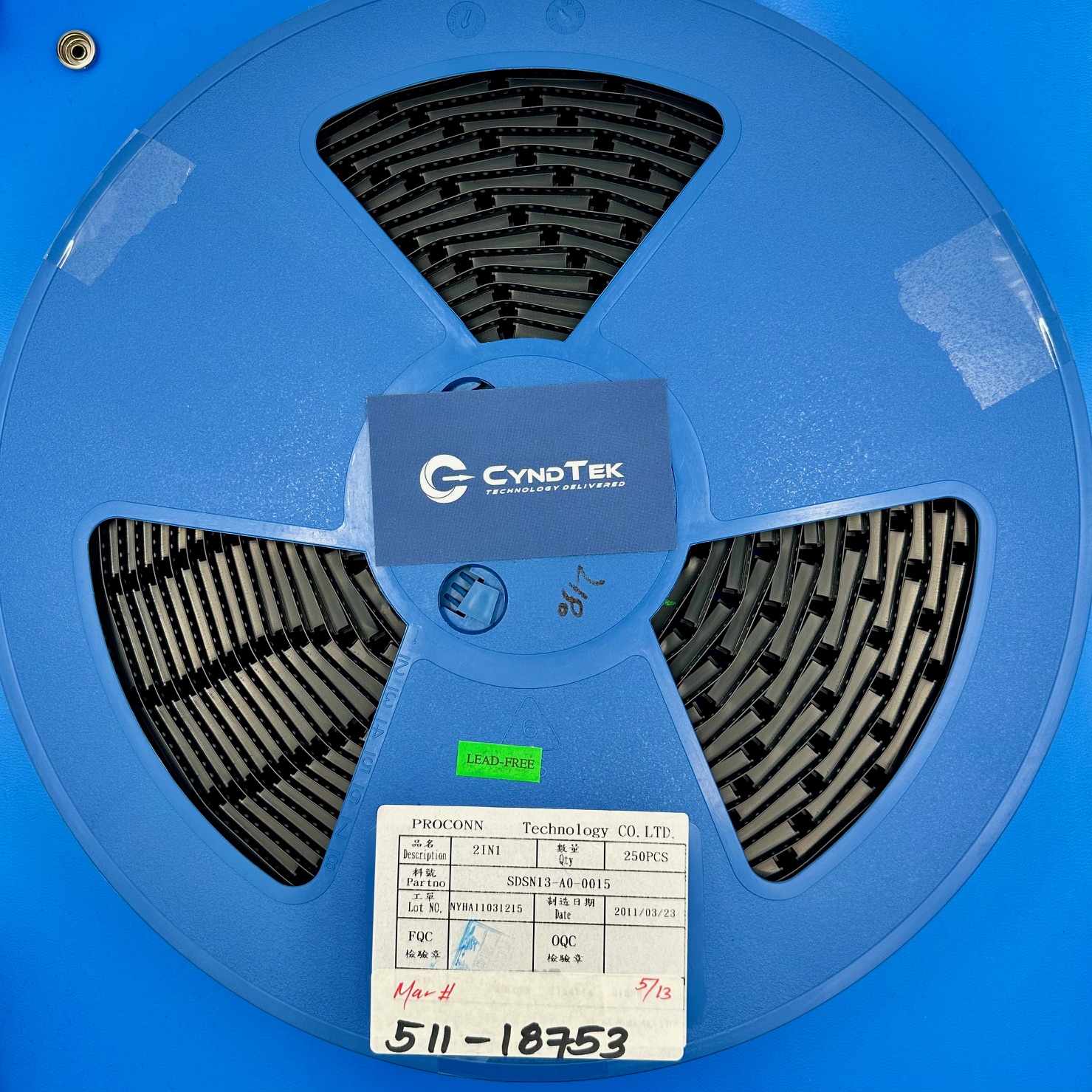

SDSN13-A0-0015 Specifications
Manufacturer: Procomm Technology
Part Number: SDSN13-A0-0015
Connector Type: SD / MMC card connector
Number of Positions: 15 contacts
Card Type Supported: SD card, MMC card
Orientation: Horizontal
Insertion Style: Push-in
Mounting Type: Surface mount
Termination Style: Solder
Contact Material: Copper alloy
Contact Plating: Gold over nickel
Housing Material: Thermoplastic
Shielding: Metal shell
Operating Temperature Range: -25 °C to +85 °C
Key Features
The SDSN13-A0-0015 supports reliable memory card connectivity in compact devices. Additionally, the 15-contact layout supports standard SD and MMC interfaces. Moreover, the horizontal orientation enables low-profile PCB layouts. Furthermore, the metal shell improves durability and EMI resistance.
Applications
Embedded computing systems
Industrial data logging devices
Consumer electronics storage interfaces
Portable measurement equipment
IoT gateway hardware
Industrial controllers with removable memory
Communication modules
Test and diagnostics platforms
Product Overview
The Procomm Technology SDSN13-A0-0015 provides a dependable SD and MMC card interface. Specifically, it uses a standard 15-pin contact configuration. As a result, designers can add removable storage easily. Moreover, the surface mount format supports automated assembly. Therefore, production efficiency improves across manufacturing lines. In addition, the horizontal layout reduces overall device height. Furthermore, gold-plated contacts maintain stable signal integrity. Consequently, electrical performance remains consistent over time. Because of this, reliability improves in demanding environments. Moreover, the thermoplastic housing supports mechanical stability. As a result, the connector withstands thermal stress effectively.
Overall, this connector balances durability and compact design. Therefore, it supports flexible memory integration in embedded systems. Consequently, it remains suitable for modern electronic applications.
