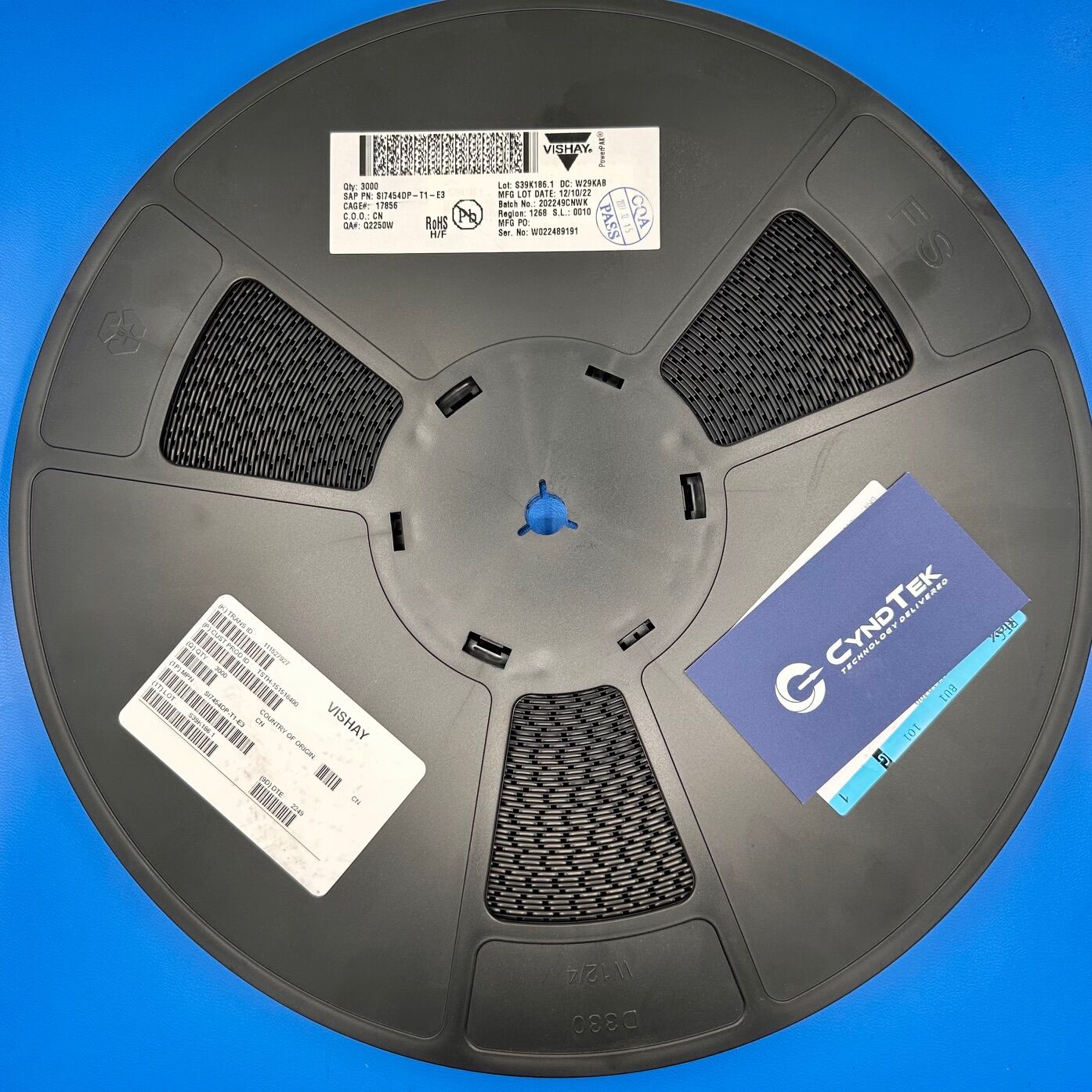

SI7454DP-T1-E3

SI7454DP-T1-E3 Specifications

Manufacturer: Vishay Siliconix
Part Number: SI7454DP-T1-E3
Product Type: N-Channel MOSFET
Drain-Source Voltage: 100 V
Continuous Drain Current: 7.8 A (10 s), 5 A (steady state)
On-Resistance at 10V Gate-Source Voltage: 0.034 Ω
On-Resistance at 6V Gate-Source Voltage: 0.040 Ω
Gate Charge: 24 nC (typical)
Power Dissipation: 4.8 W (10 s), 1.9 W (steady state)
Package / Case: PowerPAK® SO-8
Mounting Type: Surface Mount
Operating Temperature Range: -55°C to +150°C
RoHS Status: RoHS Compliant

Key Features

The SI7454DP-T1-E3 is a high-efficiency N-Channel MOSFET optimized for power management applications. It supports a drain-source voltage of 100 V while handling continuous drain currents up to 7.8 A for short durations. Additionally, its low on-resistance of 0.034 Ω at a 10 V gate-source voltage minimizes conduction losses. With a typical gate charge of just 24 nC, it switches quickly, making it ideal for high-frequency applications. The thermally enhanced PowerPAK® SO-8 package allows for efficient heat dissipation while maintaining a compact footprint. Furthermore, its wide operating temperature range ensures reliable performance across various conditions.

Applications

High-efficiency DC-DC converters
Load switch applications
Motor control circuits
Power management in computing and telecommunications equipment
Industrial automation systems

Product Overview

The SI7454DP-T1-E3 is designed for applications where efficiency and thermal performance are critical. Its low on-resistance minimizes conduction losses, while the fast switching speed enhances overall system efficiency. The PowerPAK® SO-8 package allows for superior heat dissipation, reducing the need for additional thermal management. Additionally, its ability to handle high drain currents in a compact form factor makes it well-suited for space-constrained applications. Because of its robust construction, it maintains performance over a wide operating temperature range. As a result, this MOSFET is a reliable choice for demanding applications requiring both high-speed switching and thermal efficiency.
