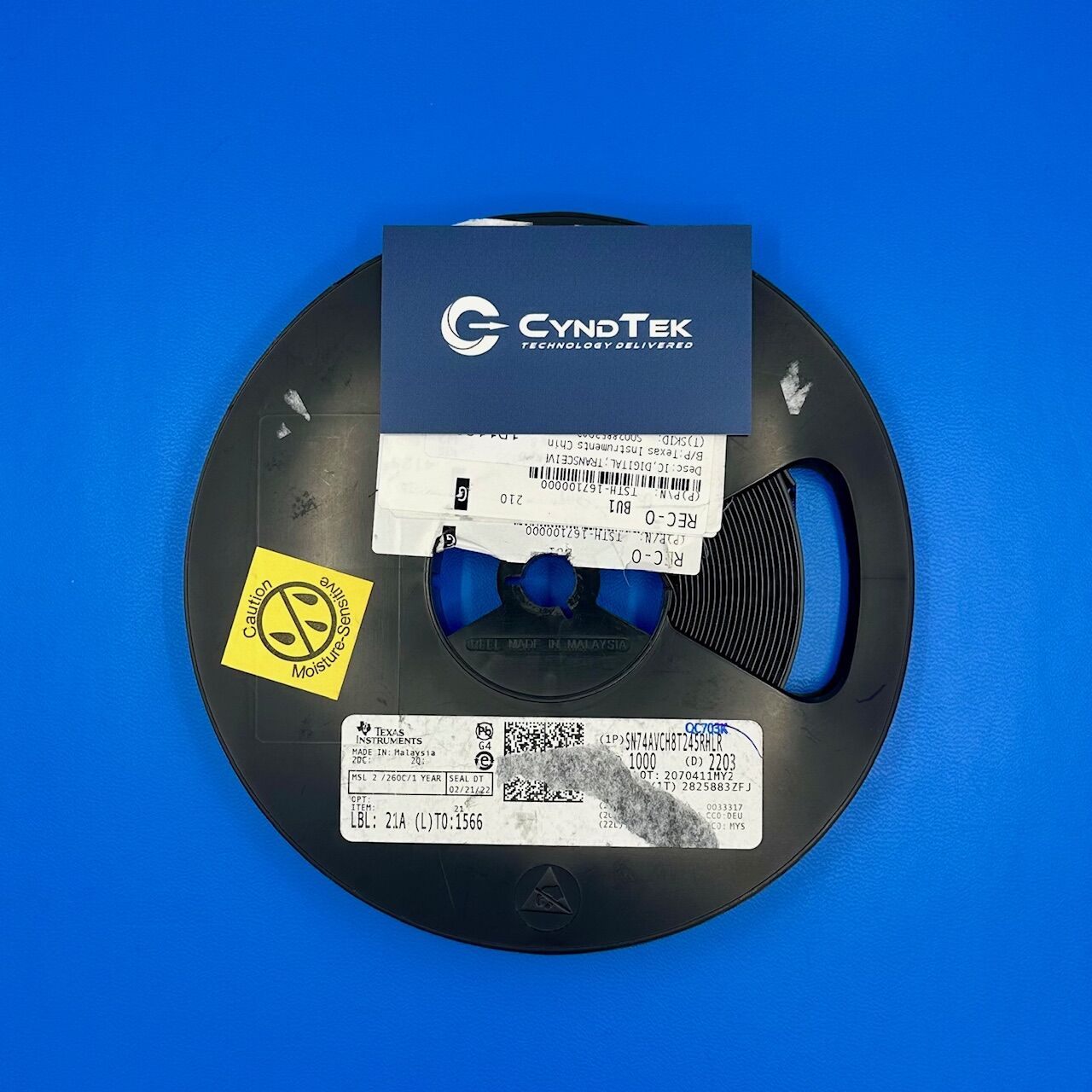

SN74AVCH8T245RHLR Specifications
Manufacturer: Texas Instruments
Part Number: SN74LVC8T245RHLR
Product Type: 8-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs
Input Voltage Range: VCCA: 1.65 V to 5.5 V; VCCB: 1.65 V to 5.5 V
Output Voltage Range: VCCA: 1.65 V to 5.5 V; VCCB: 1.65 V to 5.5 V
Data Rate: High-speed operation suitable for various applications
Quiescent Current: Low power consumption
Control Inputs: Output Enable (OE), Direction Control (DIR)
Features: VCC Isolation, Overvoltage Tolerant Inputs, Latch-Up Performance Exceeds 100 mA per JESD 78, Class II
Package / Case: 24-Pin VQFN (5.5 mm × 3.5 mm)
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant
Key Features
SN74LVC8T245RHLR is an 8-bit dual-supply bus transceiver from Texas Instruments, designed to facilitate bidirectional data transfer between different voltage levels. It supports input and output voltages ranging from 1.65 V to 5.5 V, allowing seamless interfacing between devices operating at various logic levels. The device features a fully configurable dual-rail design, enabling each port to operate over the full power-supply range. Control inputs, including Output Enable (OE) and Direction Control (DIR), provide flexibility in managing data flow and bus isolation. The VCC isolation feature ensures that if either VCC input is at ground, all outputs are in the high-impedance state, preventing unwanted current flow. Additionally, the device exhibits latch-up performance exceeding 100 mA per JESD 78, Class II, enhancing its reliability in demanding applications. Encased in a compact 24-pin VQFN package measuring 5.5 mm × 3.5 mm, it is suitable for space-constrained designs.
Applications
Voltage-level translation in mixed-voltage systems.
Bidirectional data buses in computing and networking equipment.
Portable electronics requiring efficient power management.
Industrial automation systems with multiple logic level requirements.
Communication devices interfacing with different voltage standards.
Product Overview
Texas Instruments’ SN74LVC8T245RHLR offers a robust solution for voltage-level translation and bidirectional data transfer in systems with mixed voltage domains. Its dual-supply design allows each port to operate over a full range of 1.65 V to 5.5 V, providing compatibility with various logic levels. The device’s high-speed operation ensures efficient performance in high-speed applications. Low quiescent current contributes to energy-efficient operation. Control inputs for output enable and direction control offer flexibility in managing data flow and bus isolation. The compact VQFN package facilitates integration into designs with limited board space. Overall, the SN74LVC8T245RHLR combines versatility, performance, and efficiency, making it an ideal choice for designers addressing voltage-level translation challenges in modern electronic systems.
