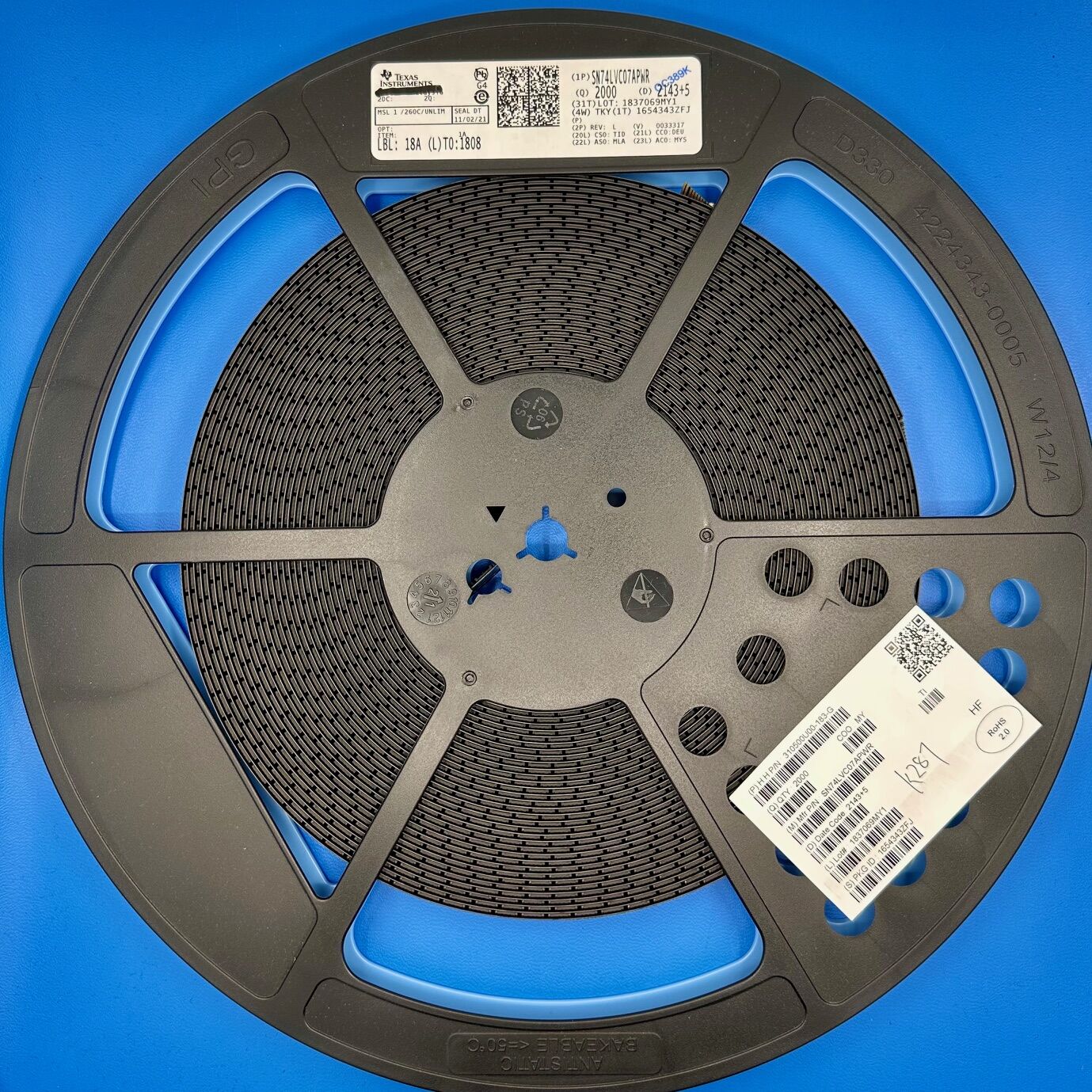

SN74LVC07APWR

.SN74LVC07APWR Specifications:

• Operating Voltage Range: 1.65 V to 5.5 V
• Input Voltage Range: 0 V to 5.5 V
• Maximum Low-Level Output Current (IOL): 24 mA
• Maximum Propagation Delay (tpd): 2.6 ns at 5 V
• Output Type: Open-drain
• Number of Channels: 6
• Operating Temperature Range: -40°C to 125°C
• Package Type: 14-pin TSSOP
• Features:
  • Inputs and open-drain outputs accept voltages up to 5.5 V
  • Supports live insertion, partial-power-down mode, and back-drive protection (Ioff)
  • Latch-up performance exceeds 250 mA per JESD 17

The SN74LVC07APWR from Texas Instruments is a high-performance hex buffer/driver with open-drain outputs, which makes it an excellent choice for applications requiring level shifting and interfacing with higher voltage systems. Not only does it support a wide operating voltage range from 1.65 V to 5.5 V, but it also allows for input voltages up to 5.5 V, ensuring compatibility with various logic levels. Furthermore, because it features open-drain outputs, it enables designers to implement wired-AND logic functions or drive external pull-up resistors for specific voltage levels. In addition to these capabilities, the device offers a low propagation delay of just 2.6 ns at 5 V, which ensures rapid signal transitions in time-sensitive applications.

Moreover, the SN74LVC07APWR operates across an extended temperature range from -40°C to 125°C, making it suitable not only for commercial applications but also for harsh industrial environments. Additionally, it adheres to stringent latch-up protection standards, exceeding 250 mA per JESD 17. Because of its compact 14-pin TSSOP package, it is also well-suited for space-constrained designs, providing engineers with flexibility in PCB layout. While its maximum low-level output current (IOL) of 24 mA ensures it can drive moderate loads effectively, its Ioff feature prevents backflow of current when powered down, thereby preventing potential damage to the circuit
