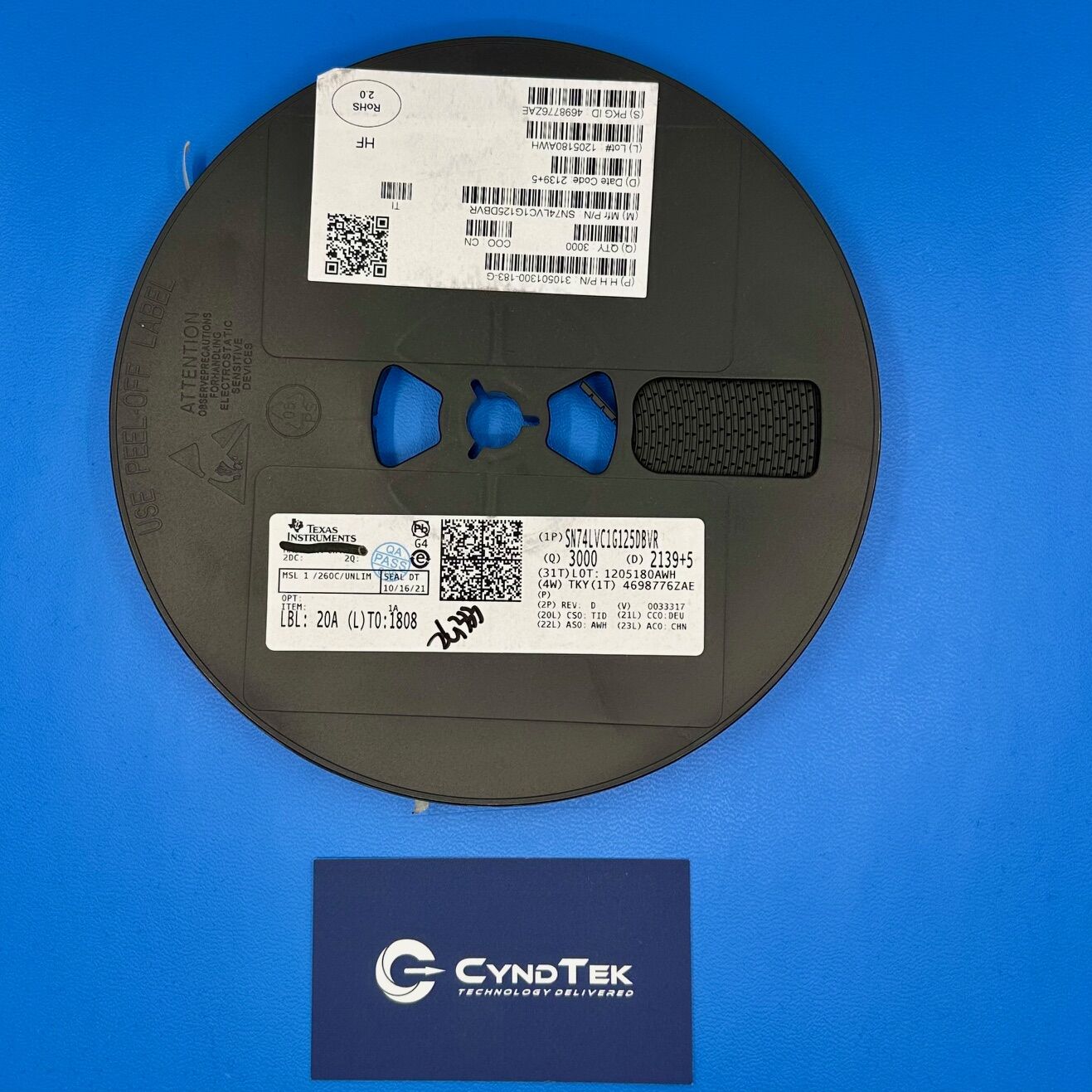

SN74LVC1G125DBVR

SN74LVC1G125DBVR Specifications:

• Manufacturer: Texas Instruments
• Part Number: SN74LVC1G125DBVR
• Function: Single Bus Buffer Gate with 3-State Output
• Logic Type: Buffer/Line Driver
• Series: LVC (Low-Voltage CMOS)

Electrical Specifications:

• Supply Voltage (Vcc): 1.65V to 5.5V
• Input Voltage Range: 0V to 5.5V
• Output Voltage (Voh/Vol): 0V to Vcc
• Output Current (Ioh/Iol): -32mA at 4.5V, +32mA at 4.5V
• Propagation Delay: ~2.5 ns at 3.3V

Physical and Package Details:

• Package Type: SOT-23-5 (DBV)
• Pin Count: 5
• Mounting Type: Surface Mount (SMD)

The SN74LVC1G125DBVR, manufactured by Texas Instruments, is a versatile single bus buffer gate with a 3-state output, making it ideal for signal buffering and isolation in various digital circuits. Not only does it support a wide supply voltage range from 1.65V to 5.5V, but it also ensures compatibility with both low- and high-voltage systems. Furthermore, its low power consumption and high-speed operation—offering a propagation delay of approximately 2.5 ns at 3.3V—makes it highly efficient for timing-critical applications. Additionally, because its inputs are overvoltage-tolerant up to 5.5V, it can seamlessly interface with different logic levels without the risk of any damage. Moreover, its ability to drive up to ±32mA at 4.5V ensures strong output capabilities, thereby allowing it to control multiple downstream components with ease. Housed in a compact SOT-23-5 package, this surface-mount device is not only space-saving but also well-suited for densely packed PCBs.

Given these advantages, along with its low static current draw of just 10 µA, the SN74LVC1G125DBVR is an excellent choice for applications requiring low-power, high-speed, and reliable signal buffering.
