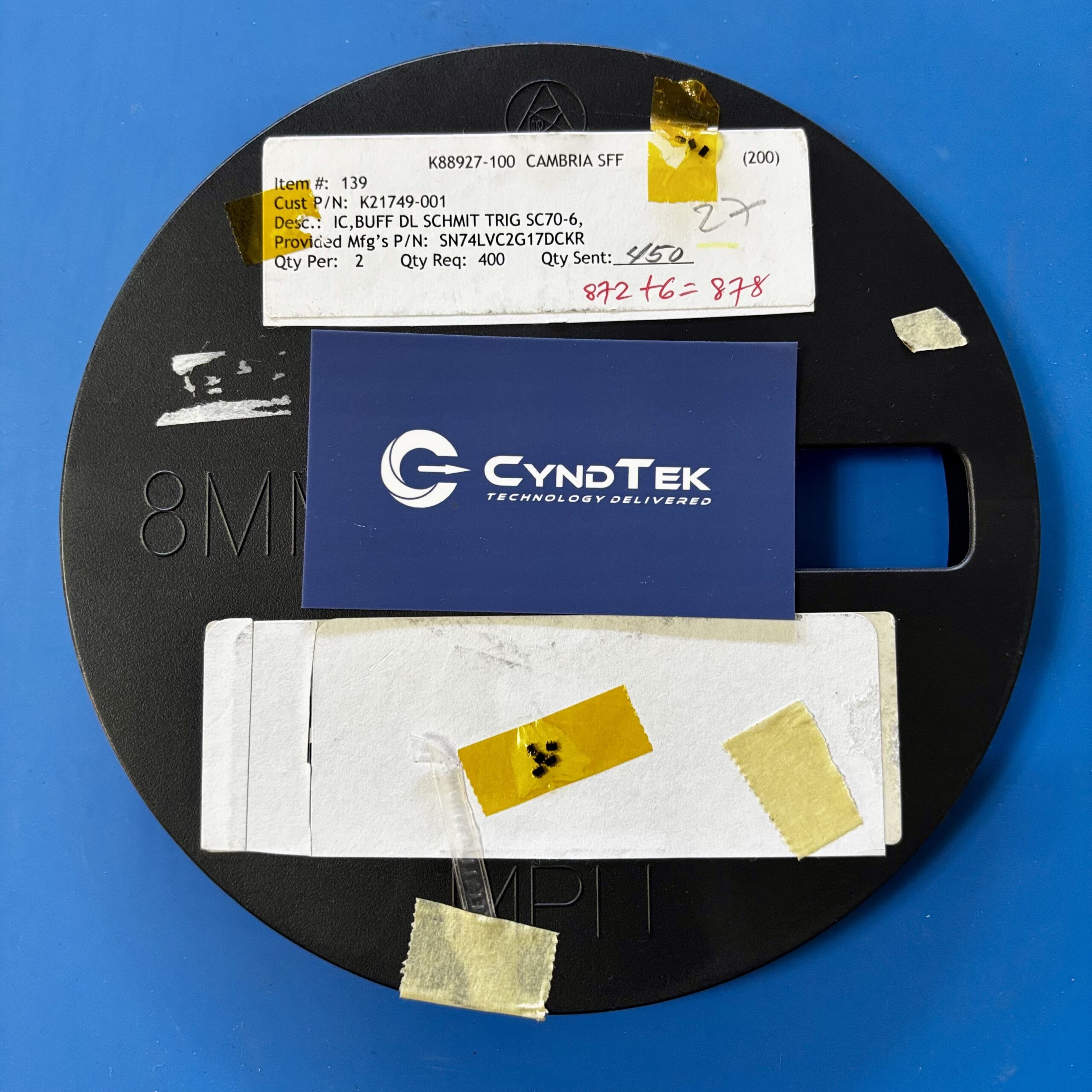

SN74LVC2G17DCKR Specifications
Manufacturer: Texas Instruments
Part Type: Dual Buffer/Driver with Schmitt-Trigger Inputs
Logic Family: LVC
Number of Channels: 2
Voltage Supply Range: 1.65 V to 5.5 V
Input Type: Schmitt-Trigger
Output Type: Push-Pull
Propagation Delay: 4.5 ns at 3.3 V
Drive Strength: ±32 mA at 4.5 V
Package Type: SC70-6
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +125°C
Input Compatibility: CMOS and TTL
Power Consumption: Low
ESD Protection: 2 kV (HBM)
RoHS Compliant: Yes
Key Features
The SN74LVC2G17DCKR is a dual non-inverting buffer/driver that integrates Schmitt-trigger inputs for excellent noise immunity and signal integrity. It operates across a wide voltage range from 1.65 V to 5.5 V, making it suitable for both 3.3 V and 5 V systems. Designed for fast switching, it offers a typical propagation delay of 4.5 ns at 3.3 V. Its CMOS and TTL input compatibility makes it a flexible interface component. Additionally, its compact SC70-6 package supports dense PCB layouts in space-constrained applications.
Applications
Signal conditioning for noisy input lines
Level shifting in mixed-voltage systems
Control signal buffering
Power rail enable circuits
Consumer electronics
Medical monitoring equipment
Networking and telecom systems
Portable industrial equipment
Battery-powered controllers
Data acquisition systems
Product Overview
The SN74LVC2G17DCKR delivers dependable signal buffering with enhanced noise rejection thanks to its Schmitt-trigger inputs. It supports both 3.3 V and 5 V logic levels, allowing easy integration into new and existing platforms. With strong output drive and rapid response time, this buffer excels in timing-critical applications. Its low power consumption ensures energy efficiency, while its small SC70-6 package allows for compact, high-density circuit designs. Suitable for both industrial and consumer environments, this device provides solid performance across demanding conditions.
