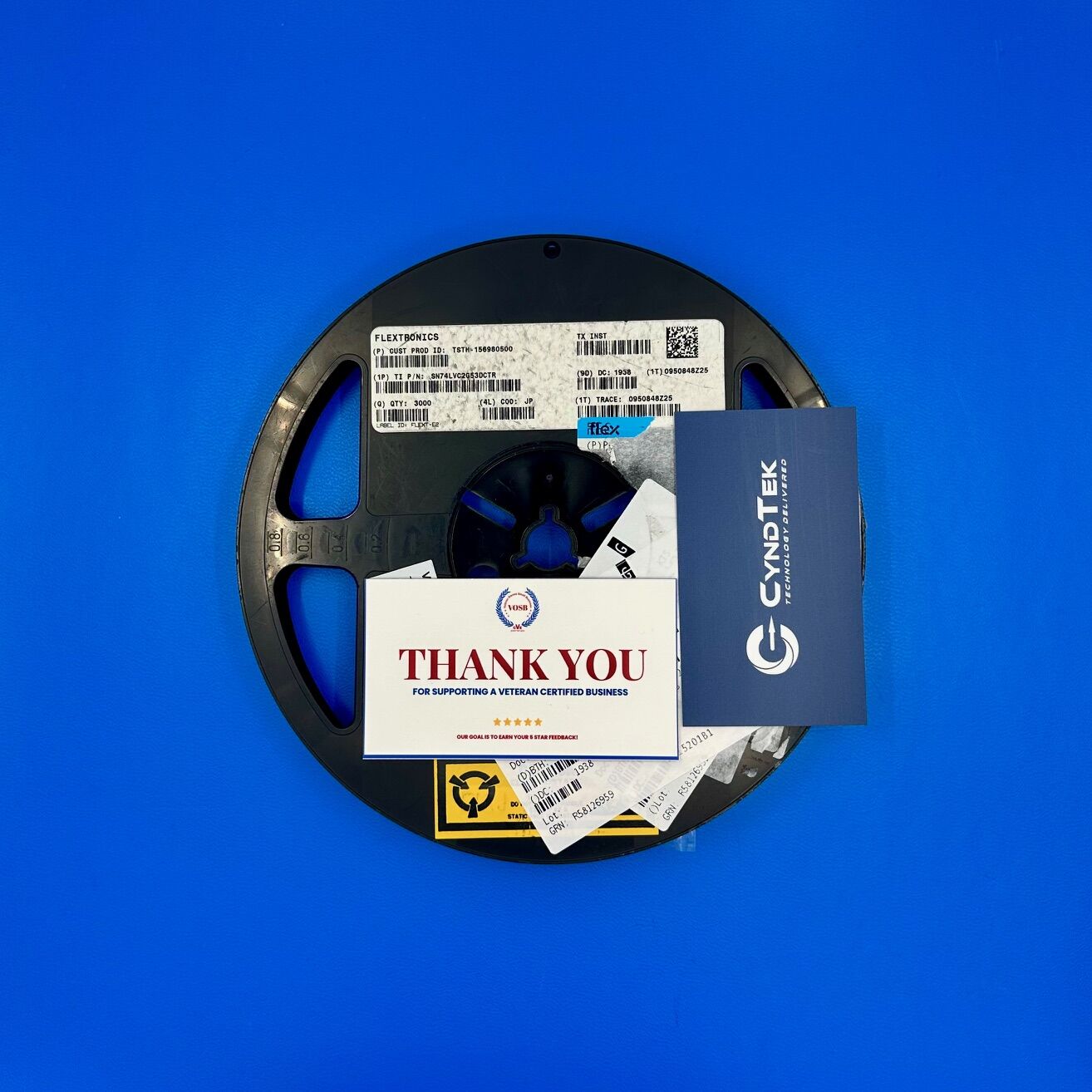

SN74LVC2G53DCTR

SN74LVC2G53DCTR Specifications

Manufacturer: Texas Instruments
Part Number: SN74LVC2G53DCTR
Product Type: Single-Pole Double-Throw (SPDT) Analog Switch
Configuration: 2:1 Multiplexer/Demultiplexer
Number of Channels: 1
On-State Resistance (Ron): Typically 6.5 Ω at VCC = 4.5 V
Voltage Supply Range: 1.65 V to 5.5 V
Bandwidth: 300 MHz
Switch Time (Ton, Toff): 0.5 ns typical at VCC = 3 V, CL = 50 pF
Input/Output Continuous Current: ±50 mA
Operating Temperature Range: -40°C to +85°C
Package / Case: SM8 (2.95 mm × 2.80 mm)
RoHS Status: RoHS Compliant

Key Features

The SN74LVC2G53DCTR is a versatile single-pole double-throw (SPDT) analog switch designed for seamless integration into various analog and digital signal applications. Operating within a voltage supply range of 1.65 V to 5.5 V. Thus it ensures compatibility with a wide array of systems. The device boasts a low on-state resistance, typically 6.5 Ω at a 4.5 V supply, facilitating efficient signal transmission with minimal loss. Its high-speed operation is characterized by a typical switch time of 0.5 ns when operating at a 3 V supply with a 50 pF load capacitance. Thus making it suitable for high-frequency applications. Additionally, the SN74LVC2G53DCTR supports a bandwidth of up to 300 MHz, accommodating high-speed signal processing requirements.

The device’s robust design allows for an input/output continuous current of ±50 mA, ensuring reliable performance in demanding conditions. Housed in a compact SM8 package measuring 2.95 mm by 2.80 mm, it is ideal for space-constrained applications. Furthermore, the device operates effectively across a temperature range of -40°C to +85°C.

Applications

Signal gating and chopping in communication systems
Modulation and demodulation processes in modem devices
Signal multiplexing for analog-to-digital and digital-to-analog conversion systems
Audio and video signal routing in multimedia equipment
Portable computing devices requiring efficient signal management

Product Overview

Texas Instruments’ SN74LVC2G53DCTR is engineered to provide reliable and efficient signal switching capabilities in both analog and digital domains. Its low on-state resistance ensures minimal signal attenuation. Allowing the high-speed operation supports rapid signal processing. The wide voltage supply range enhances its versatility, allowing integration into diverse system architectures. The compact SM8 package facilitates easy incorporation into designs where space is at a premium. With a robust operating temperature range, the SN74LVC2G53DCTR maintains consistent performance across various environmental conditions. This is making it a dependable choice for engineers seeking a high-quality analog switch solution.
