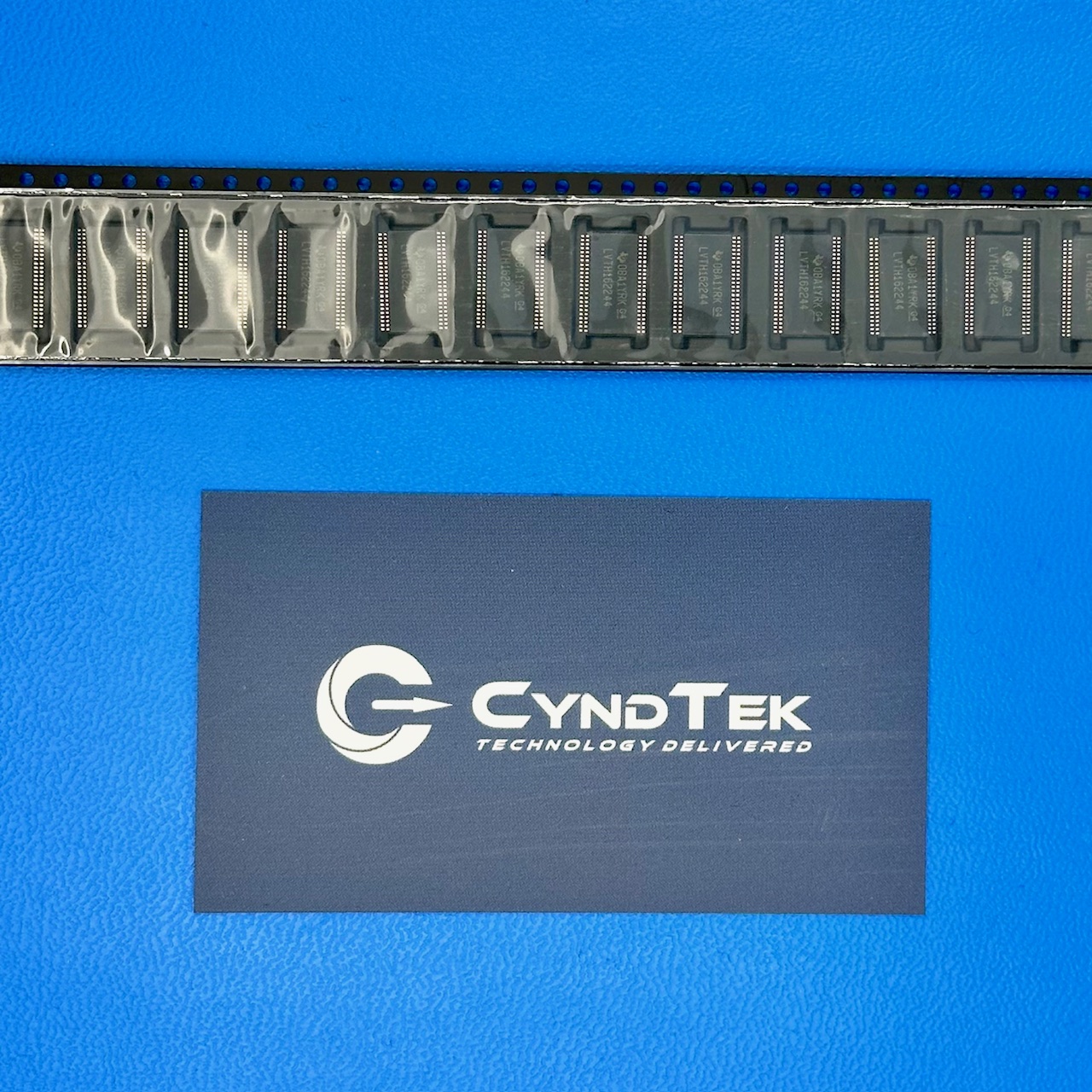

SN74LVTH162244DGR

SN74LVTH162244DGR Specifications

Manufacturer: Texas Instruments
Part Number: SN74LVTH162244DGR
Product Type: 16-bit Buffer/Driver with 3-State Outputs
Supply Voltage Range: 2.7 V to 3.6 V
Input Voltage Range: 0 V to 5.5 V
Output Voltage Range: 0 V to 3.6 V
Output Current: ±12 mA
Input Capacitance: 4 pF (typical)
Quiescent Current: 0.5 mA (maximum)
Package / Case: 48-TSSOP
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The SN74LVTH162244DGR is a 16-bit buffer and line driver engineered for high-speed, low-voltage systems. It supports data transfer at supply voltages ranging from 2.7 V to 3.6 V while maintaining full compatibility with 5 V logic levels. Its 3-state outputs simplify bus control, and internal 22-ohm series resistors eliminate the need for external damping components. Moreover, features like bus-hold and hot insertion support improve stability and protection. With wide operating temperatures and integrated signal conditioning, this device is ideal for space-efficient, performance-driven designs.

Applications

Bus-oriented systems
Memory address drivers
Clock drivers
Industrial automation
Telecommunications equipment

Product Overview

The SN74LVTH162244DGR from Texas Instruments delivers efficient buffering and voltage-level control across 16 data lines. Its low power draw and integrated features make it particularly well-suited for dense circuit designs. Additionally, it handles hot-swap conditions gracefully, thanks to Ioff circuitry and power-up 3-state support. This reduces the risk of signal disruption during power transitions. Its internal bus-hold mechanism minimizes component count by removing the need for pull-up or pull-down resistors. With a wide temperature tolerance and 3-state output control, it supports robust, high-speed system architectures in both industrial and telecom environments.
