ST485ECDR Specifications
Manufacturer: STMicroelectronics
Part Number: ST485ECDR
Product Type: Low Power RS-485/RS-422 Transceiver
Number of Drivers/Receivers: 1 Driver / 1 Receiver
Duplex: Half
Data Rate: 5 Mbps
Supply Voltage Range: 4.75 V to 5.25 V
Supply Current: 300 µA (typical)
Receiver Input Voltage Range: -7 V to +12 V
Driver Output Voltage Range: -7 V to +12 V
ESD Protection: ±15 kV (HBM), ±8 kV (IEC-1000-4-2 contact discharge)
Propagation Delay: 30 ns
Receiver Hysteresis: 70 mV (typical)

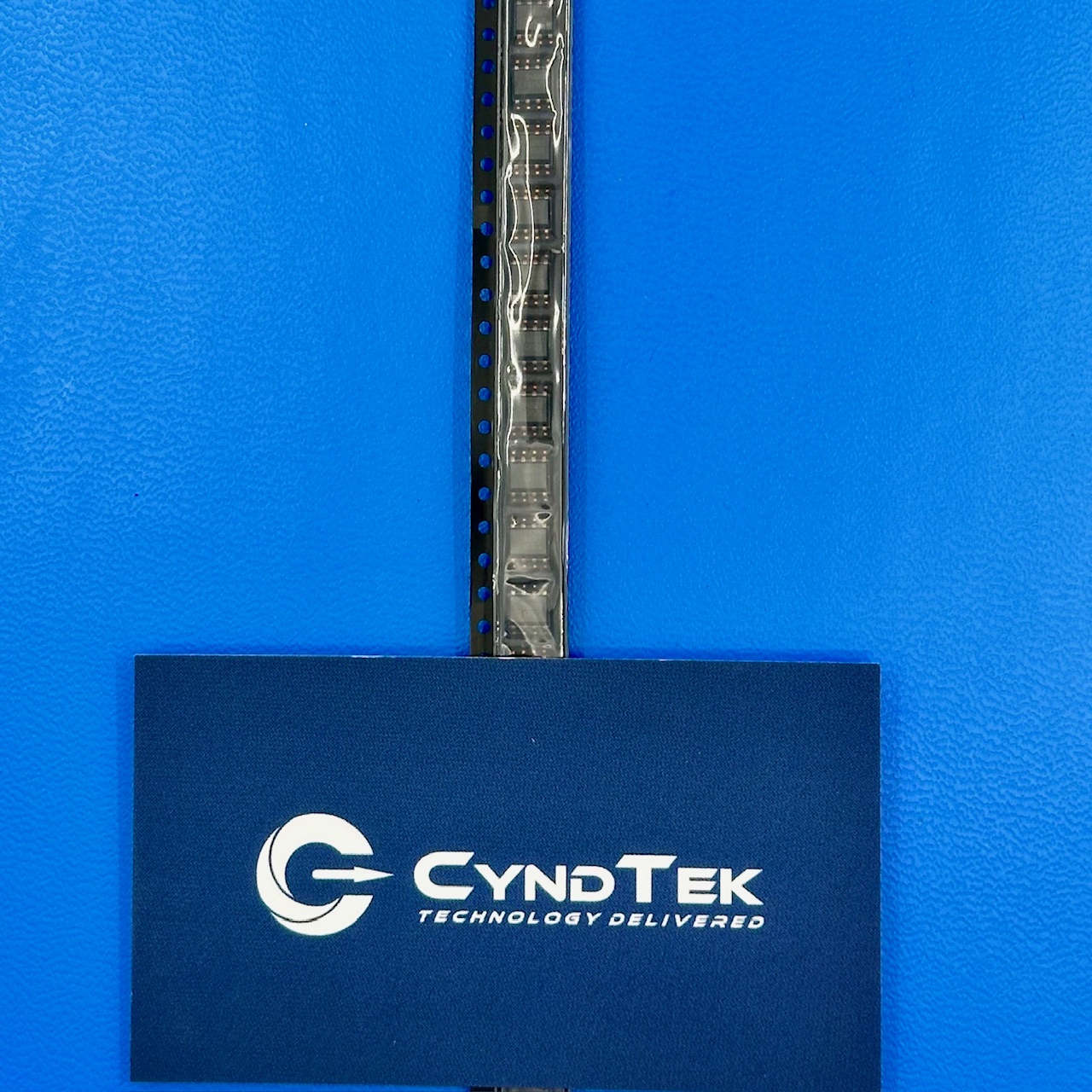

Package / Case: 8-SOIC
Mounting Type: Surface Mount
Operating Temperature Range: 0°C to +70°C
RoHS Status: RoHS Compliant
Key Features
The ST485ECDR is a low-power transceiver designed for RS-485 and RS-422 communication applications. It features a single driver and receiver in a half-duplex configuration, supporting data rates up to 5 Mbps. The device operates within a supply voltage range of 4.75 V to 5.25 V and has a typical supply current of 300 µA, making it suitable for power-sensitive applications. The receiver input and driver output voltage ranges from -7 V to +12 V, accommodating a wide common-mode voltage range. Enhanced electrostatic discharge (ESD) protection of ±15 kV (HBM) and ±8 kV (IEC-1000-4-2 contact discharge) ensures robust performance in harsh environments. The transceiver exhibits a propagation delay of 30 ns and typical receiver hysteresis of 70 mV, contributing to reliable data transmission. Packaged in an 8-SOIC case, the ST485ECDR supports surface-mount technology, facilitating compact and efficient PCB layouts.
Applications
RS-485/RS-422 communication systems
Industrial automation
Building automation
Point-of-sale (POS) terminals
Local area networks (LANs)
Data acquisition systems
Product Overview
The ST485ECDR from STMicroelectronics is engineered for reliable bi-directional data communication on multipoint bus transmission lines in half-duplex applications. Its low quiescent current of 300 µA makes it ideal for low-power systems. The device’s wide common-mode voltage range and robust ESD protection enhance its suitability for industrial and commercial environments. With a data rate capability of up to 5 Mbps and a propagation delay of 30 ns, the ST485ECDR ensures efficient and timely data transmission. Its surface-mount 8-SOIC package allows for streamlined integration into various electronic designs. Compliance with RoHS standards underscores its adherence to environmental and safety regulations.
