Specifications
Brand: Supermicro
MPN: AOC-ATG-i2TM
Controller: Intel X550-AT2
Form Factor: Supermicro AIOM Advanced I/O Module
Interface: PCIe 3.0 x4 via AIOM slot
Ports: 2 x RJ45 Ethernet
Network Speed: Up to 10GbE per port
Ethernet Type: 10GBase-T
Cable Support: Cat6 up to 55 m; Cat6A up to 100 m
Jumbo Frame Support: Up to 15.5 KB
Virtualization Support: SR-IOV, VMDq, VXLAN, NVGRE
Boot Support: PXE, iSCSI Boot, FCoE Boot
VLAN Support: IEEE 802.1Q
Maximum Power Consumption: 13W
Bracket Type: 0.5U Height Bracket
Condition: New
Included: Network adapter only; no cables or other accessories included
Key Features
Dual-port 10GbE RJ45 network adapter for Supermicro server platforms.
Uses the Intel X550-AT2 controller with integrated MAC and PHY.
Supports standard twisted-pair copper Ethernet cabling.
Includes offload capabilities for TCP, UDP, SCTP, IPv4, and IPv6 traffic.
Built for virtualized server environments with SR-IOV, VMDq, VXLAN, and NVGRE support.
Supports PXE network boot and remote boot through iSCSI or FCoE.
Designed with a thermal sensor and NC-SI remote-management support.
RoHS compliant.
Applications
Supermicro AIOM-compatible rack servers.
10GbE server networking upgrades.
Virtualization hosts and hypervisors.
High-speed NAS and storage networking.
Data center and enterprise network deployments.
High-bandwidth backup and replication networks.
Product Description
The Supermicro AOC-ATG-i2TM is a dual-port 10GbE RJ45 network adapter built for supported Supermicro servers with an AIOM slot. It uses the Intel X550-AT2 Ethernet controller and provides two 10GBase-T copper Ethernet connections.
Each port supports up to 10GbE networking through standard RJ45 cabling. Cat6 cabling is supported up to 55 meters, while Cat6A supports runs up to 100 meters. The adapter also supports jumbo frames, VLAN tagging, PXE boot, and iSCSI boot.
This model is made for Supermicro’s proprietary AIOM interface. It is not a standard PCIe add-in card and will not install into a normal PCIe x4, x8, or x16 slot. Please confirm that your Supermicro server or motherboard has a compatible AIOM slot before purchase.

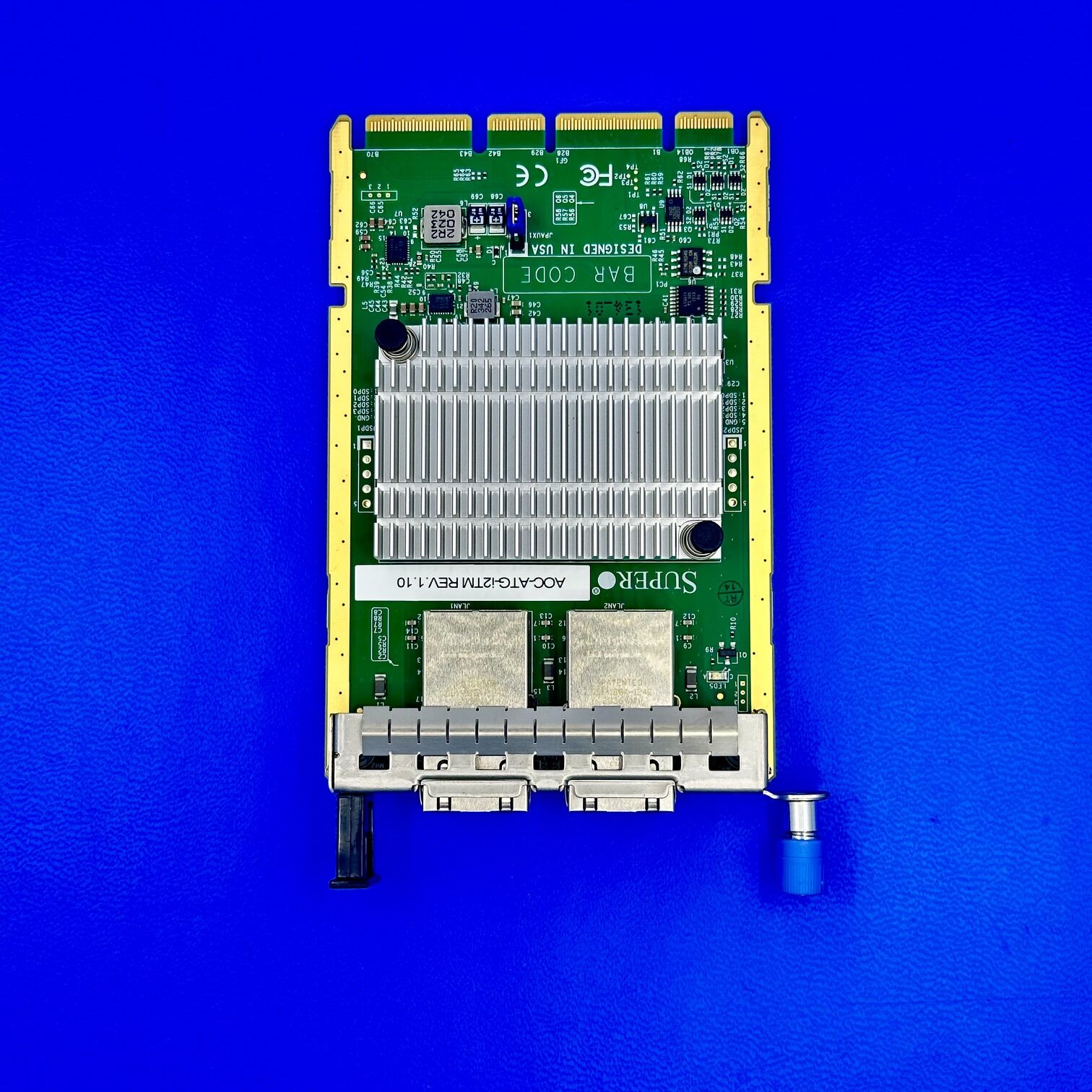

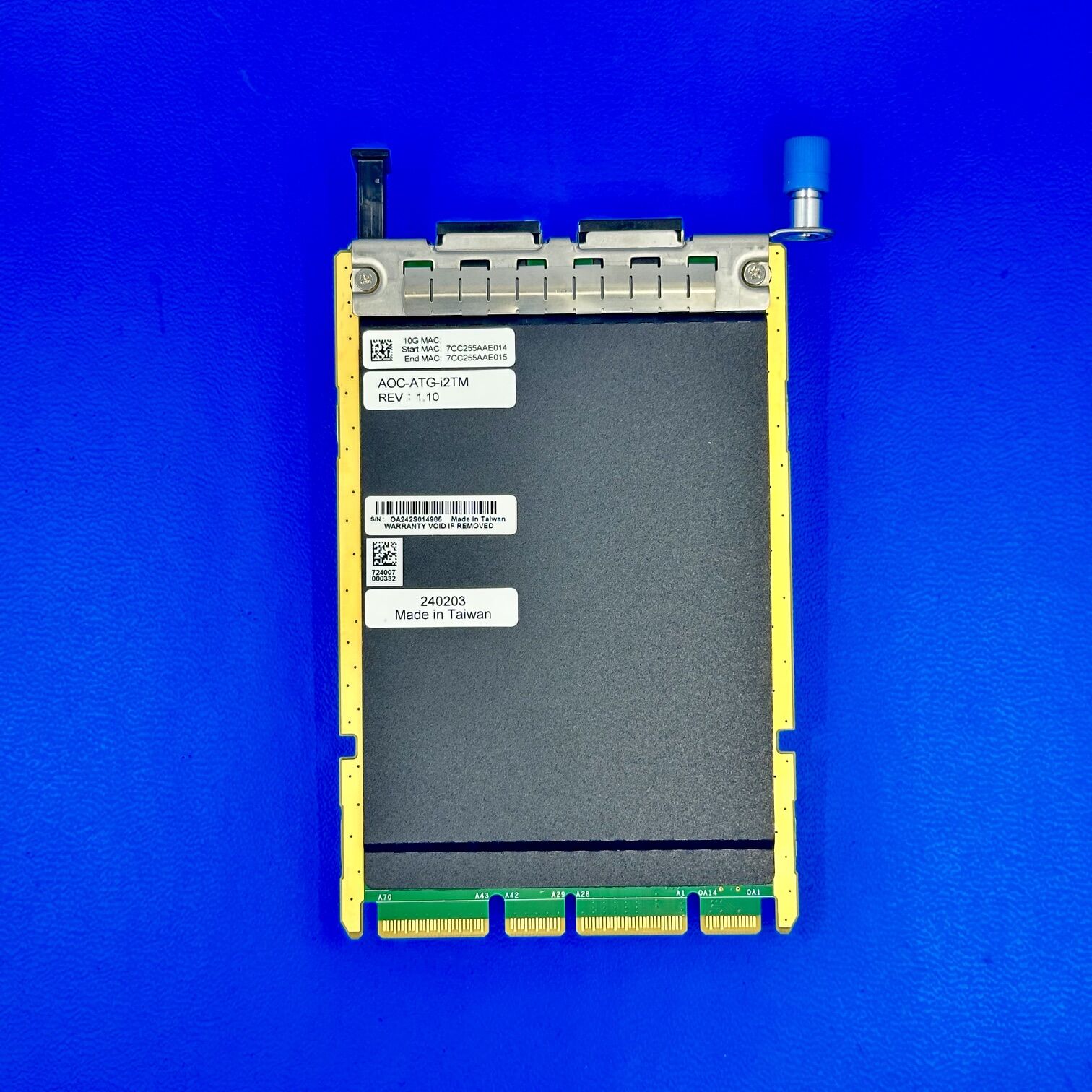

Photos are of the actual adapter. Visit our Cyndtek shop for more server networking hardware and enterprise components.
