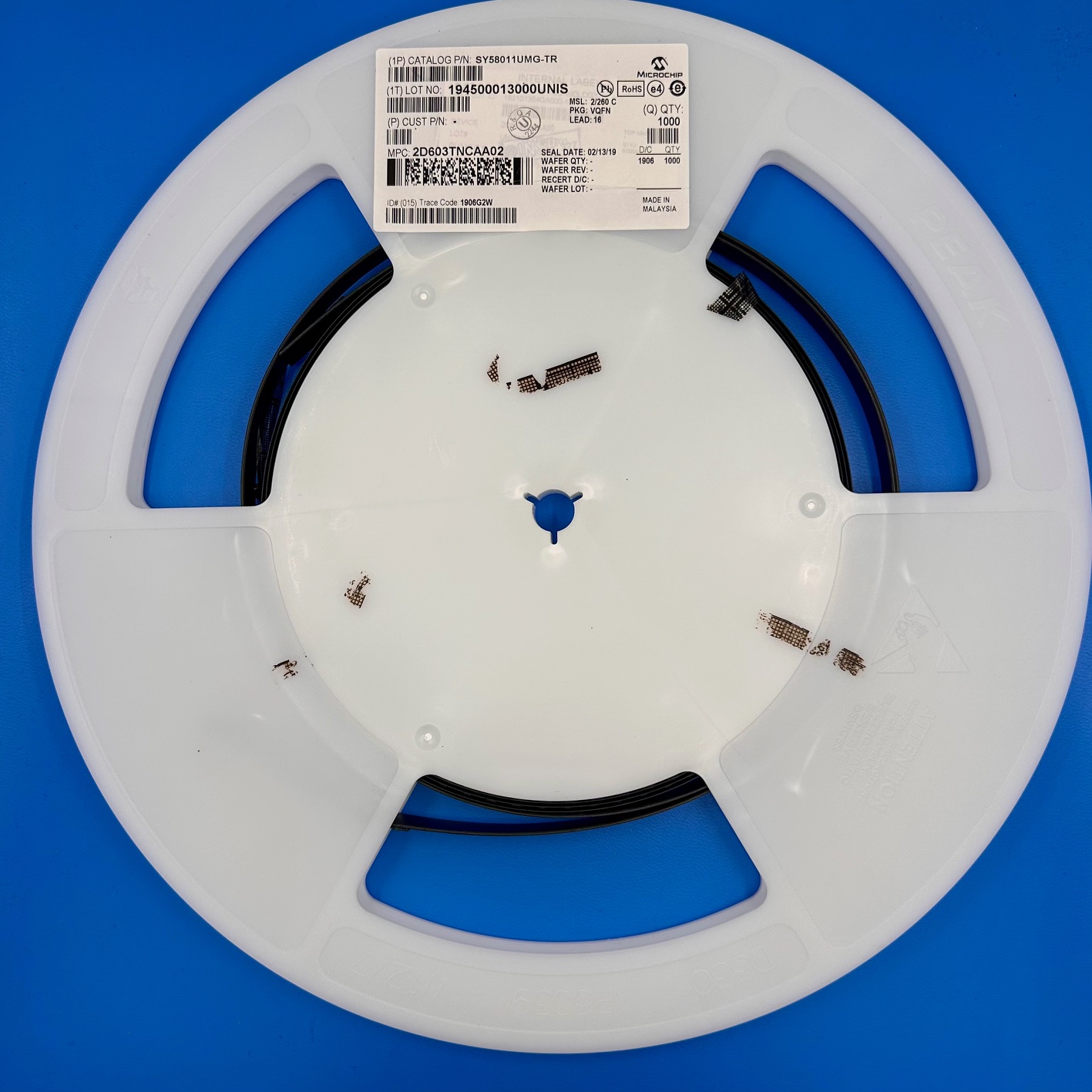

SY58011UMG-TR Specifications
Manufacturer: Microchip Technology
Part Number: SY58011UMG-TR
Product Type: Ultra High-Speed 1:2 CML Fanout Buffer/Translator
Data Rate: Up to 7 Gbps
Input Type: Differential
Output Type: CML (Current Mode Logic)
Number of Outputs: 2
Supply Voltage: 2.5V ±5% or 3.3V ±10%
Package / Case: 16-Pin VQFN
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant
Key Features
The SY58011UMG-TR is an ultra high-speed 1:2 fanout buffer and translator designed to deliver superior performance in high-frequency applications. With a data rate capability of up to 7 Gbps, it ensures minimal jitter and signal integrity, making it ideal for demanding communication systems. The device accepts differential inputs and provides two CML outputs, facilitating efficient signal distribution. Its wide supply voltage range of 2.5V to 3.3V enhances flexibility in various design environments. The compact 16-pin VQFN package supports space-constrained applications while ensuring optimal thermal performance.
Applications
High-speed data communication systems
Networking equipment requiring low-jitter signal distribution
Clock and data signal buffering in telecommunications infrastructure
Test and measurement instruments demanding precise signal replication
Advanced computing systems necessitating high-frequency signal fanout
Product Overview
The SY58011UMG-TR from Microchip Technology is engineered to meet the stringent requirements of modern high-speed digital systems. Its capability to operate at data rates up to 7 Gbps, combined with low additive jitter, makes it a reliable choice for applications where signal integrity is paramount. The device’s differential input and dual CML outputs provide versatility in signal routing and distribution. Its robust design ensures consistent performance across a wide operating temperature range, making it suitable for both commercial and industrial applications. Compliance with RoHS standards underscores its environmental responsibility.
