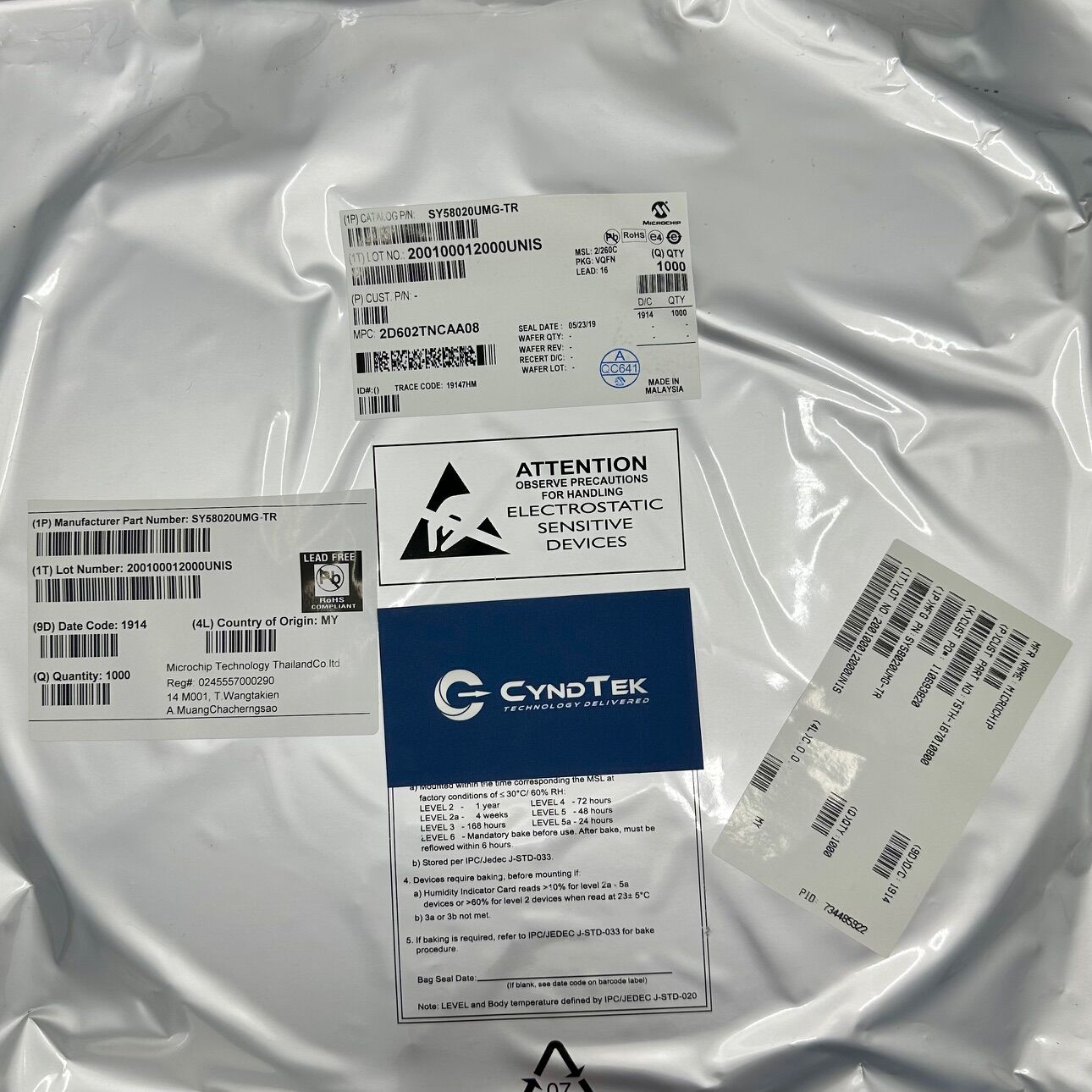

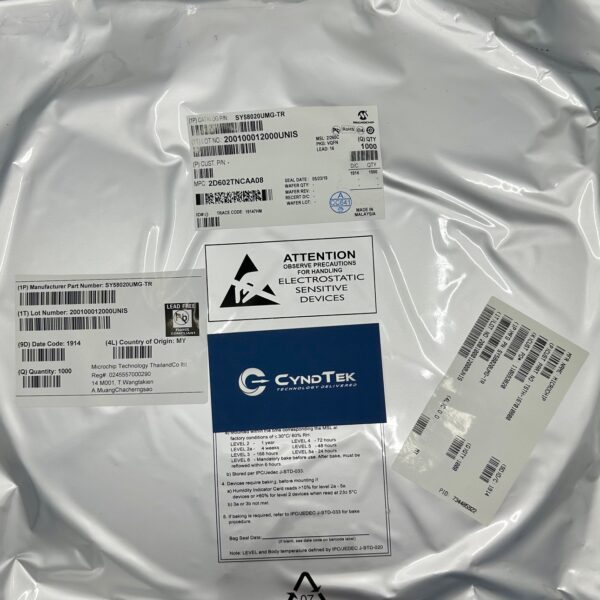

SY58020UMG-TR

SY58020UMG-TR Specifications

Manufacturer: Microchip Technology
Part Number: SY58020UMG-TR
Product Type: Ultra High-Speed 1:4 CML Fanout Buffer/Translator
Number of Channels: 1 input to 4 outputs
Input Type: CML
Output Type: CML
Data Rate: Up to 10 Gbps
Maximum Frequency: 6 GHz
Supply Voltage Range: 2.375 V to 3.6 V
Operating Temperature Range: -40°C to +85°C
Package / Case: 16-VFQFN (3 mm × 3 mm)
Mounting Type: Surface Mount
Input Impedance: 100 Ohm differential
Output Swing: 800 mV (typical)
RoHS Status: RoHS Compliant

Key Features

The SY58020UMG-TR from Microchip Technology is a high-performance 1:4 fanout buffer and translator designed to handle ultra high-speed differential signals. Operating up to 10 Gbps or 6 GHz, it is optimized for distributing clock and data signals with minimal additive jitter. Its CML-compatible inputs and outputs allow seamless integration into modern communication and signal processing systems. This device is ideal for space-constrained designs, offering a compact 3 mm × 3 mm QFN package that simplifies PCB routing. Additionally, its low power consumption and wide voltage range from 2.375 V to 3.6 V provide the flexibility needed for power-sensitive environments and dense signal architectures.

Applications

Fiber optic communication transceivers in high-bandwidth data centers
Clock distribution networks in high-speed network switches
Signal routing paths in digital oscilloscopes and spectrum analyzers
Broadcast studio routers and HD video switching platforms
High-frequency signal conditioning in radar and military-grade RF modules

Product Overview

Microchip’s SY58020UMG-TR is engineered to meet the demands of high-speed communication systems requiring clean, precise signal fanout. Its ability to handle up to 10 Gbps of data allows it to support some of the most demanding signal processing tasks in networking, instrumentation, and defense. The 1:4 output architecture enables effective clock or data distribution across multiple channels with minimal delay or skew. With CML compatibility, it offers excellent signal fidelity, and the internal design helps reduce power consumption while maintaining stable performance. The device’s thermal stability across industrial temperatures makes it suitable for environments that require both performance and reliability.
