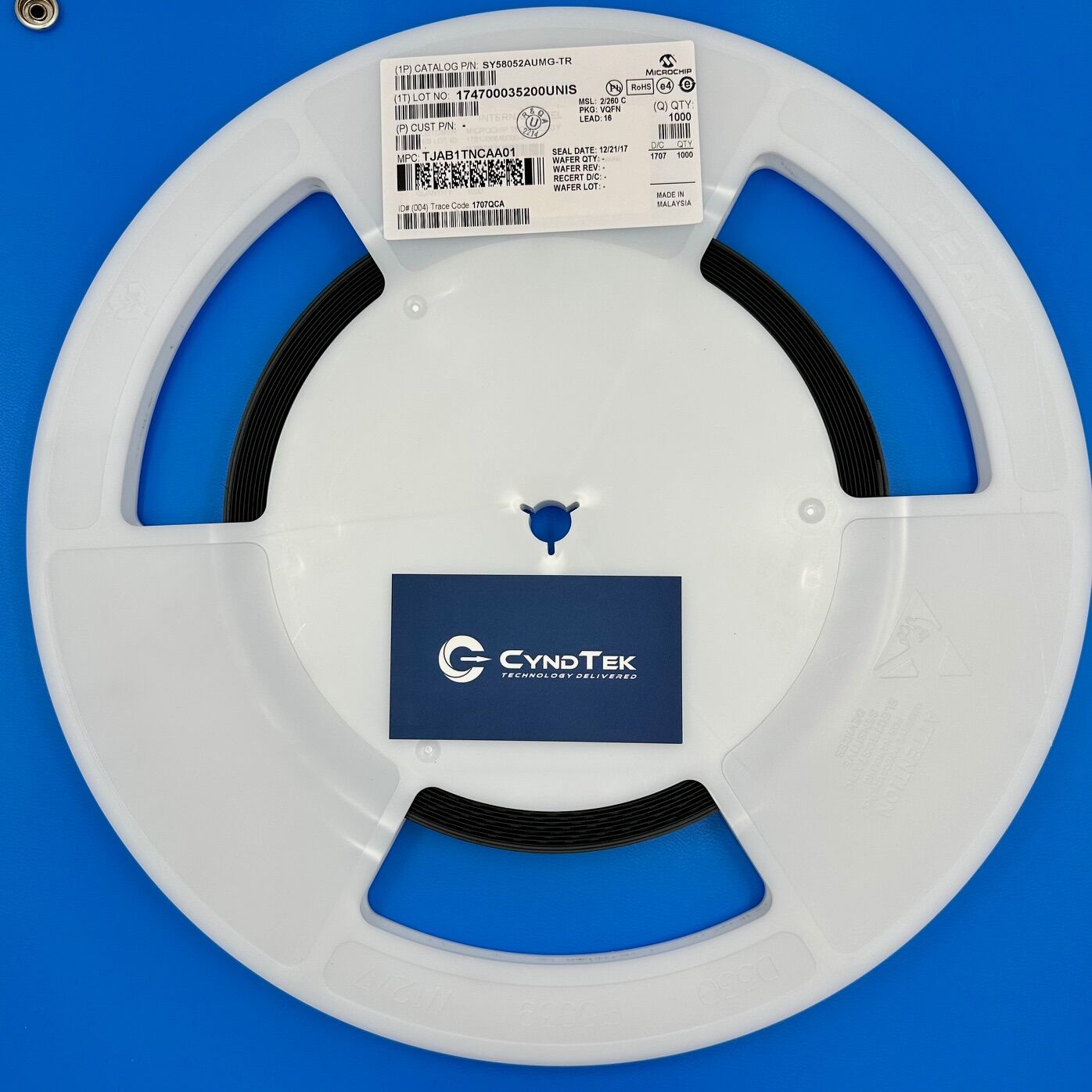

SY58052AUMG-TR

SY58052AUMG-TR Specifications

Manufacturer: Microchip Technology
Part Number: SY58052AUMG-TR
Product Type: Ultra-Precision CML Data and Clock Synchronizer
Data Rate: Up to 10.7 Gbps
Clock Frequency: Up to 7 GHz
Input Type: Differential CML, LVPECL
Output Type: CML
Input Termination: Internal 50Ω
Output Swing: 400 mV
Supply Voltage Range: 2.375 V to 3.63 V
Propagation Delay: 160 ps (maximum)
Jitter Performance: 0.3 ps RMS (random), 3 ps pp (deterministic)
Operating Temperature Range: -40°C to +85°C
Package / Case: 16-VFQFN (3 mm × 3 mm)
RoHS Status: RoHS Compliant

Key Features

The SY58052AUMG-TR from Microchip Technology is an ultra-fast, precision data-to-clock resynchronizer. Designed to handle data rates up to 10.7 Gbps and clock frequencies up to 7 GHz. It features internal 50Ω termination for both inputs and outputs, simplifying integration and reducing external component requirements. The device offers exceptionally low jitter performance, with 0.3 ps RMS random jitter and 3 ps peak-to-peak deterministic jitter, ensuring high signal integrity in high-speed applications. Its differential CML outputs provide a 400 mV swing, optimized for 50Ω environments. Operating from a supply voltage range of 2.375 V to 3.63 V and over an industrial temperature range of -40°C to +85°C, the SY58052AUMG-TR is housed in a compact 16-VFQFN package, making it suitable for space-constrained designs.

Applications

High-speed data communication systems requiring precise data-to-clock synchronization.
Telecommunication infrastructure utilizing high-frequency signal resynchronization.
Networking equipment needing low-jitter clock and data alignment.
Test and measurement instruments demanding accurate signal timing.
Broadcast video systems requiring synchronization of high-definition video signals.

Product Overview

Microchip Technology’s SY58052AUMG-TR is engineered to deliver ultra-precision data and clock synchronization for high-speed applications. Its ability to handle data rates up to 10.7 Gbps and clock frequencies up to 7 GHz makes it ideal for advanced communication systems. The internal termination and low jitter performance enhance signal integrity and simplify design complexity. Operating over a wide supply voltage and temperature range, and housed in a compact package, the SY58052AUMG-TR offers a reliable solution for designers seeking high-performance synchronization in space-constrained environments.
