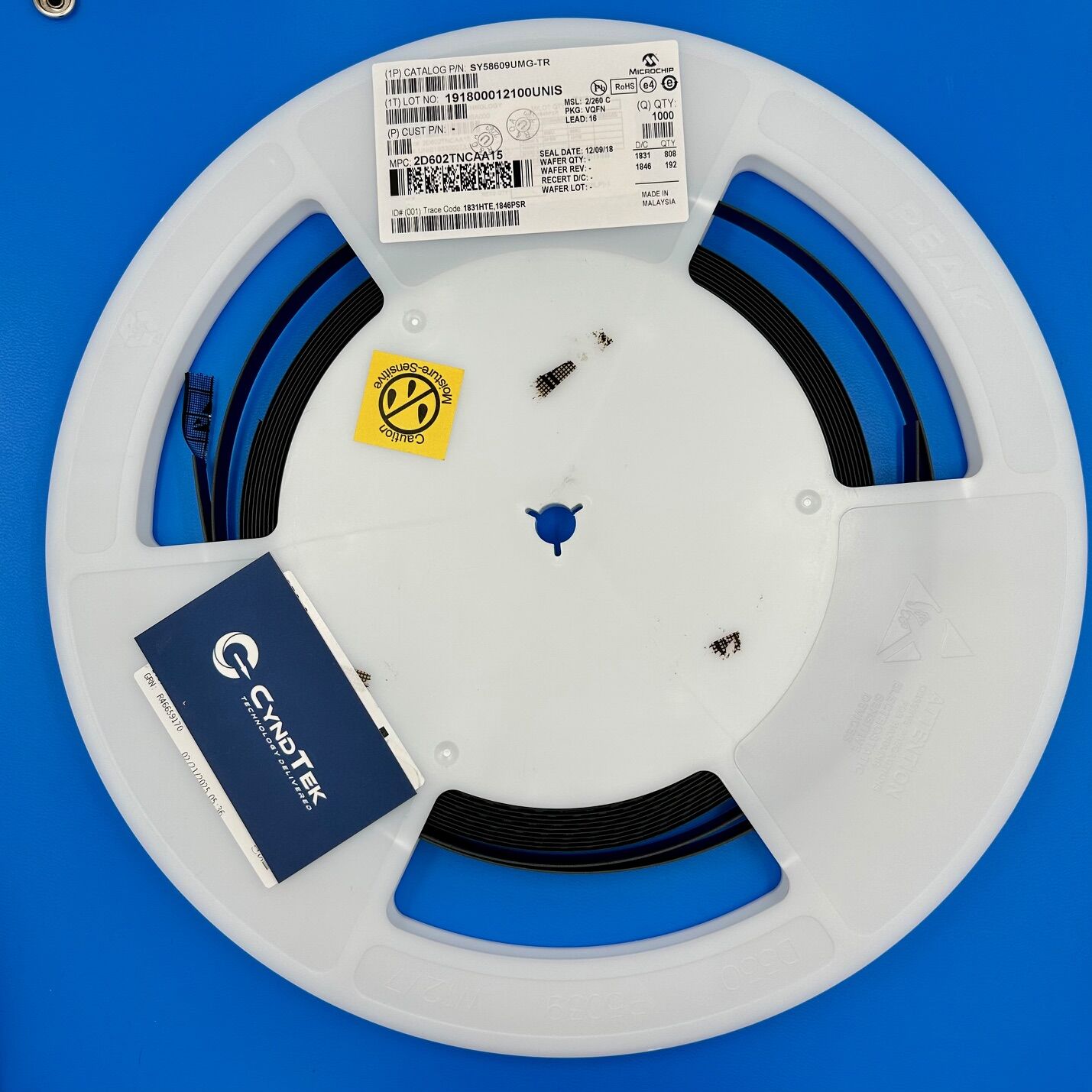

SY58609UMG-TR

SY58609UMG-TR Specifications

Manufacturer: Microchip Technology
Part Number: SY58609UMG-TR
Product Type: 2:1 Differential CML Multiplexer
Input Type: CML, LVPECL, LVDS
Output Type: CML
Data Rate: Up to 4.25 Gbps
Propagation Delay: 330 ps (typical)
Input Termination: Internal 50 Ohm
Fail-Safe Input: Yes
Supply Voltage Range: 2.375 V to 3.6 V
Package / Case: 16-VFQFN (3 mm × 3 mm)
Operating Temperature Range: -40°C to +85°C
Jitter Performance: Low additive jitter
Mounting Type: Surface Mount
Power Supply: Single 2.5 V or 3.3 V
RoHS Status: RoHS Compliant

Key Features

The SY58609UMG-TR from Microchip Technology is a high-speed 2:1 differential multiplexer capable of operating at data rates up to 4.25 Gbps. This precision device features internal 50 Ohm input termination and a fail-safe mechanism. Ensuring stable output in the event of invalid inputs. It accepts differential CML, LVPECL, and LVDS signals, offering compatibility with various logic levels. Its compact 3 mm × 3 mm QFN package supports space-sensitive designs. The low additive jitter and fast propagation delay help maintain signal integrity in high-speed environments. Designed for use with a single 2.5 V or 3.3 V power supply, it operates efficiently across a wide industrial temperature range.

Applications

Optical transceivers in fiber networks requiring precise high-speed signal selection
Routers and switches in telecom infrastructure where signal routing must be clean and accurate
Oscilloscopes and signal analyzers used for measuring high-speed digital signals
Broadcast video gear requiring rapid switching between HD-SDI video feeds
Radar processing modules and satellite communications systems needing fast and reliable data path selection

Product Overview

The SY58609UMG-TR is engineered for high-performance data selection in systems requiring speed, accuracy, and compact design. With support for differential signaling up to 4.25 Gbps, it serves as an essential component in systems that demand low jitter and reliable signal control. The internal 50 Ohm termination simplifies board layout and reduces external component count. The fail-safe feature adds a layer of robustness by preventing unpredictable behavior when the inputs are floating. Its support for various differential logic standards makes it highly adaptable across communications, instrumentation, and aerospace platforms. This Microchip device delivers high-speed performance with minimal power footprint. A form factor designed for advanced board-level integration.
