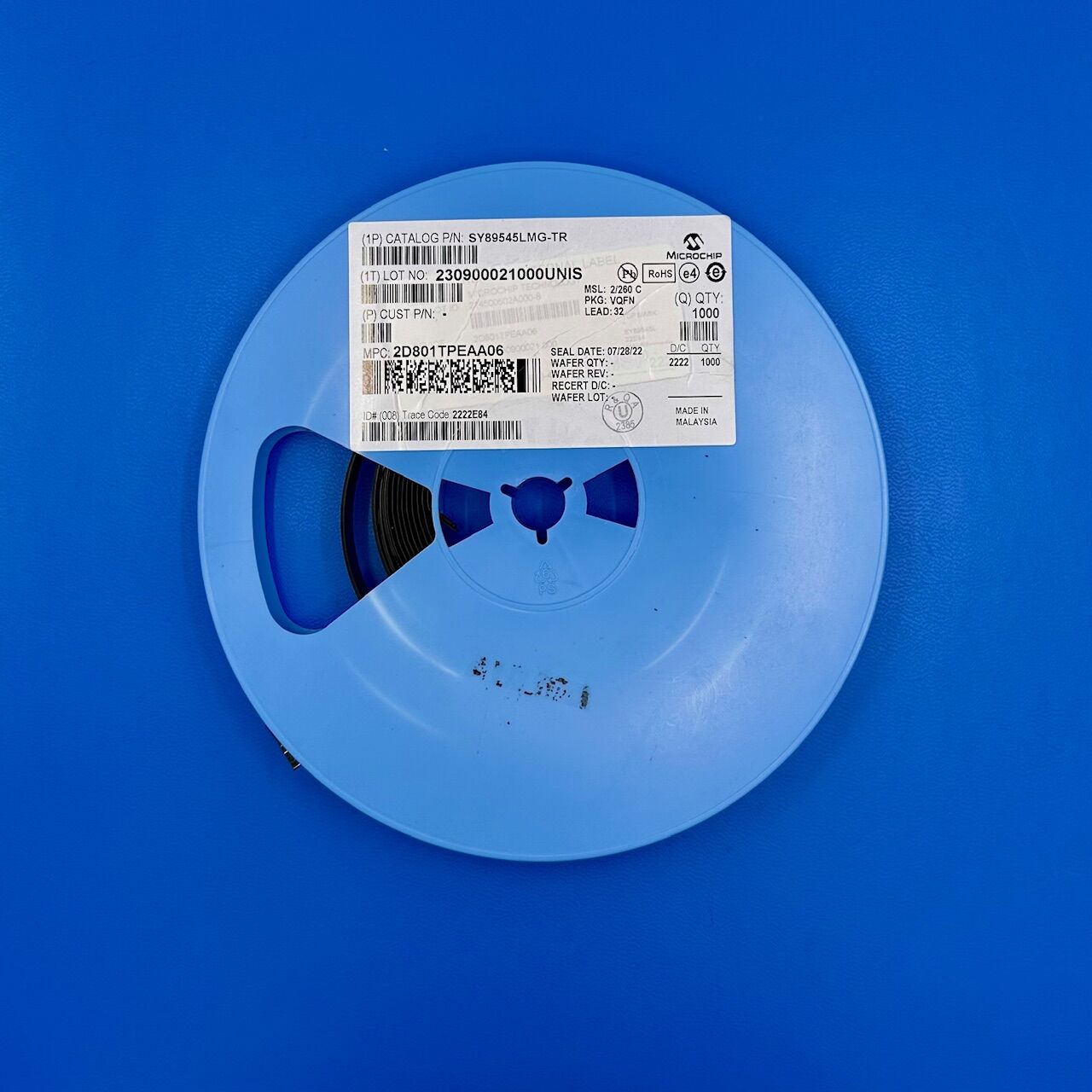

SY89545LMG-TR

SY89545LMG-TR Specifications

Manufacturer: Microchip Technology
Part Number: SY89545LMG-TR
Product Type: High-Speed Differential 4:1 LVDS Multiplexer
Input Type: Differential LVDS
Output Type: Differential LVDS
Number of Inputs: 4
Number of Outputs: 1
Data Rate: Up to 3.2 Gbps
Input Termination: Internal 100 Ω
Supply Voltage: 3.3 V
Supply Current: 44 mA (typical)
Propagation Delay: 500 ps (typical)
Channel-to-Channel Skew: 20 ps (typical)
Jitter (RMS): 200 fs (typical)
Package / Case: 32-Lead VQFN (5 mm × 5 mm)
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The SY89545LMG-TR is a high-speed, low-jitter 4:1 multiplexer designed to route one of four differential LVDS input signals to a single LVDS output. Operating at data rates up to 3.2 Gbps, it ensures minimal signal degradation. Making it suitable for high-performance applications. The device integrates internal 100 Ω input termination resistors, simplifying PCB layout and reducing external component requirements. With a low propagation delay of 500 ps and channel-to-channel skew of just 20 ps, the SY89545LMG-TR guarantees precise timing alignment. Its typical RMS jitter of 200 fs enhances signal integrity in noise-sensitive environments. Operating from a 3.3 V supply and consuming a typical current of 44 mA, it balances performance with power efficiency. The compact 32-lead VQFN package facilitates integration into space-constrained designs.

Applications

High-speed data communication systems requiring signal multiplexing
Telecommunications infrastructure needing reliable signal routing
Networking equipment with multiple data channels
Test and measurement instruments demanding precise signal selection
Broadcast video systems requiring high-bandwidth signal management

Product Overview

Microchip Technology’s SY89545LMG-TR is engineered to deliver high-speed, low-jitter signal multiplexing for advanced communication systems. Its ability to select among four differential LVDS inputs and provide a single LVDS output at data rates up to 3.2 Gbps. This makes it ideal for applications requiring efficient signal routing with minimal latency. The inclusion of internal termination resistors simplifies design complexity and enhances signal integrity. With low propagation delay and minimal channel-to-channel skew, the device ensures accurate timing, crucial for synchronous data transmission. The SY89545LMG-TR’s low power consumption and compact footprint make it a versatile solution for designers seeking performance and efficiency in high-speed digital systems.
