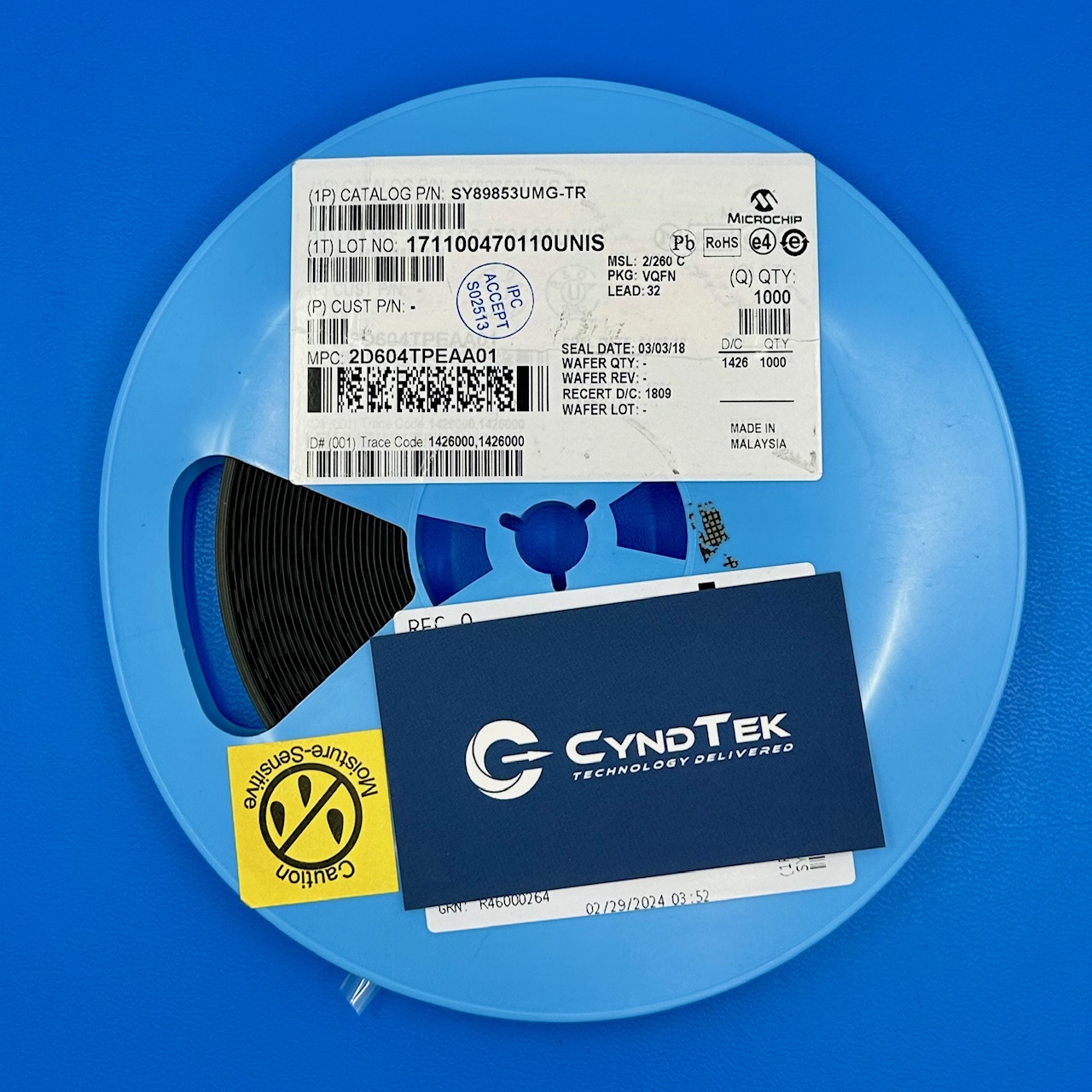

SY89853UMG-TR

SY89853UMG-TR Specifications

Manufacturer: Microchip Technology
Part Number: SY89853UMG-TR
Product Type: Low Power, Precision Dual 2:1 LVPECL Multiplexer
Number of Channels: 2
Input Type: LVPECL/LVDS/CML
Output Type: LVPECL
Supply Voltage Range: 2.375 V to 3.6 V
Operating Temperature Range: -40°C to +85°C
Package / Case: 16-VFQFN (3 mm × 3 mm)
RoHS Status: RoHS Compliant

Key Features

The SY89853UMG-TR from Microchip Technology is a low-power, precision dual 2:1 multiplexer designed to process high-speed differential signals with minimal jitter. It supports input types including LVPECL, LVDS, and CML, providing flexibility in interfacing with various signal standards. The device operates within a supply voltage range of 2.375 V to 3.6 V and maintains consistent performance across an industrial temperature range of -40°C to +85°C. Packaged in a compact 16-VFQFN (3 mm × 3 mm) form factor, it is suitable for high-density PCB layouts.

Applications

High-speed data communication systems requiring efficient signal routing
Telecommunication infrastructure utilizing multiplexing of differential signals
Networking equipment needing reliable data path selection
Test and measurement instruments demanding precision signal processing
Broadcast video systems requiring low-jitter signal switching

Product Overview

Microchip Technology’s SY89853UMG-TR is engineered for applications that demand precise and reliable high-speed signal multiplexing. Its compatibility with multiple differential input standards allows seamless integration into diverse system architectures. The device’s low power consumption and compact package make it ideal for space-constrained designs where energy efficiency is crucial. Operating over a broad temperature range, the SY89853UMG-TR ensures dependable performance in various environmental conditions. Thus making it a versatile choice for designers seeking robust multiplexing solutions.
