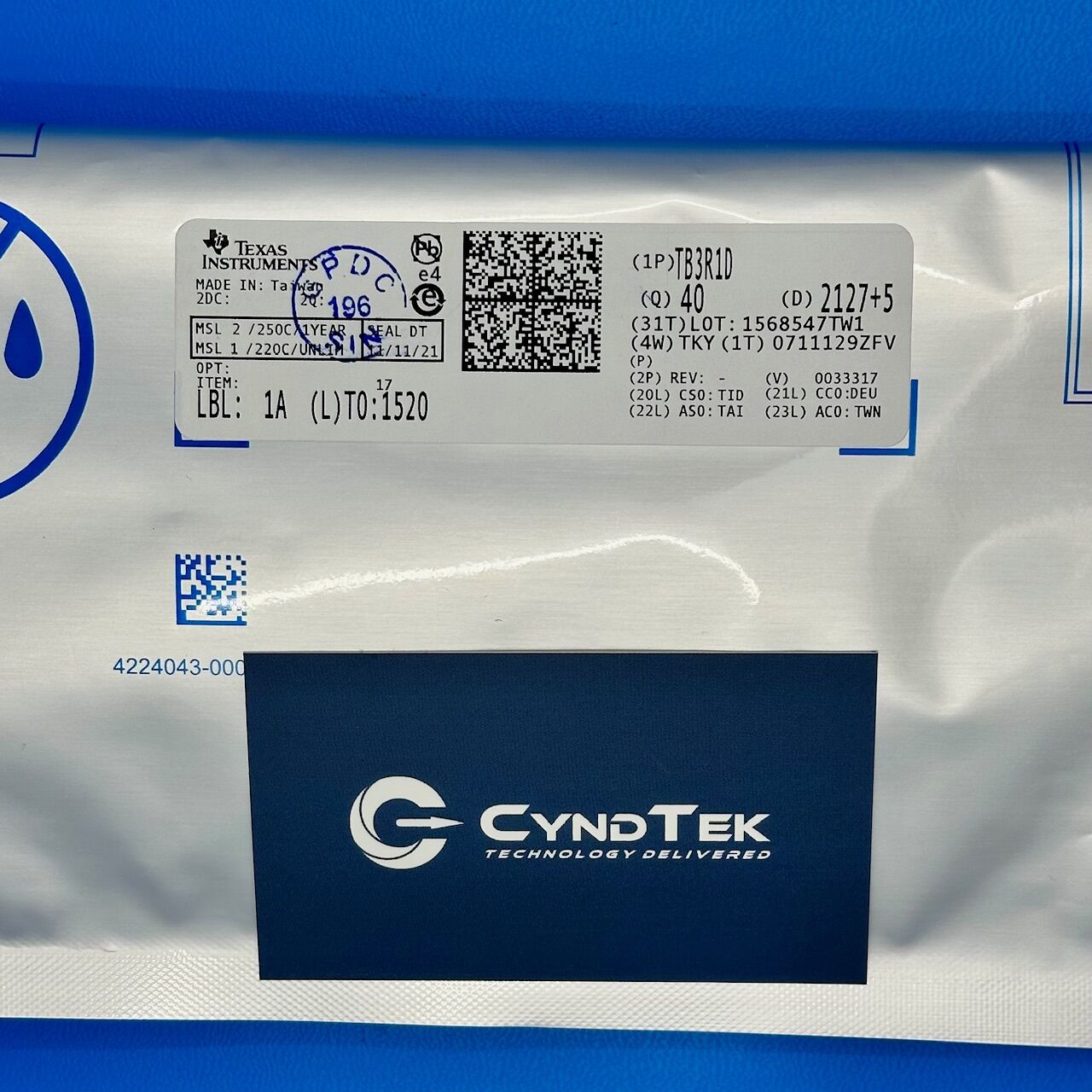

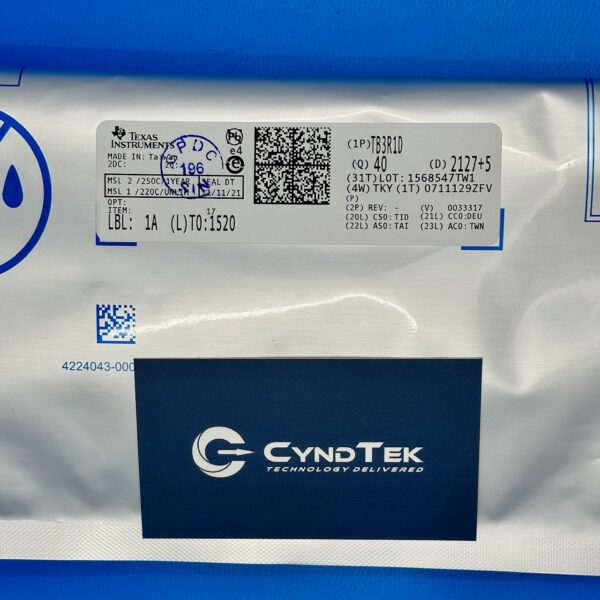

TB3R1D

TB3R1D Specifications

Manufacturer: Texas Instruments
Part Number: TB3R1D
Product Type: Quad Differential PECL Receiver
Supply Voltage Range: 3.0 V to 3.6 V
Propagation Delay Time: 3.5 ns (typical)
Receiver Hysteresis: 50 mV
Number of Receivers: 4
Package / Case: 16-SOIC (0.154″, 3.90 mm Width)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The TB3R1D is a quad differential PECL receiver designed for high-speed data transmission applications. Operating within a supply voltage range of 3.0 V to 3.6 V, it offers a typical propagation delay of 3.5 ns, ensuring rapid signal processing. The device features a receiver hysteresis of 50 mV, enhancing noise immunity and signal integrity. Housed in a 16-SOIC package, the TB3R1D supports surface mount technology, facilitating efficient PCB layout and assembly. Its robust design and wide operating temperature range make it suitable for various demanding applications.

Applications

High-speed data communication systems requiring efficient signal reception
Telecommunication equipment demanding reliable performance across varying temperatures
Networking devices necessitating low propagation delay for optimal data transmission
Industrial automation systems where precise signal processing is critical
Medical instrumentation relying on accurate and swift data interpretation

Product Overview

The TB3R1D by Texas Instruments is engineered to meet the demands of high-speed data communication systems. Its quad differential PECL receiver design ensures efficient signal reception with a typical propagation delay of 3.5 ns. Operating within a supply voltage range of 3.0 V to 3.6 V and capable of functioning across a temperature range of -40°C to +85°C, it offers versatility across various applications. The 16-SOIC package supports surface mount technology, simplifying integration into existing designs. This makes the TB3R1D a reliable choice for industries requiring precise and rapid signal processing capabilities.
