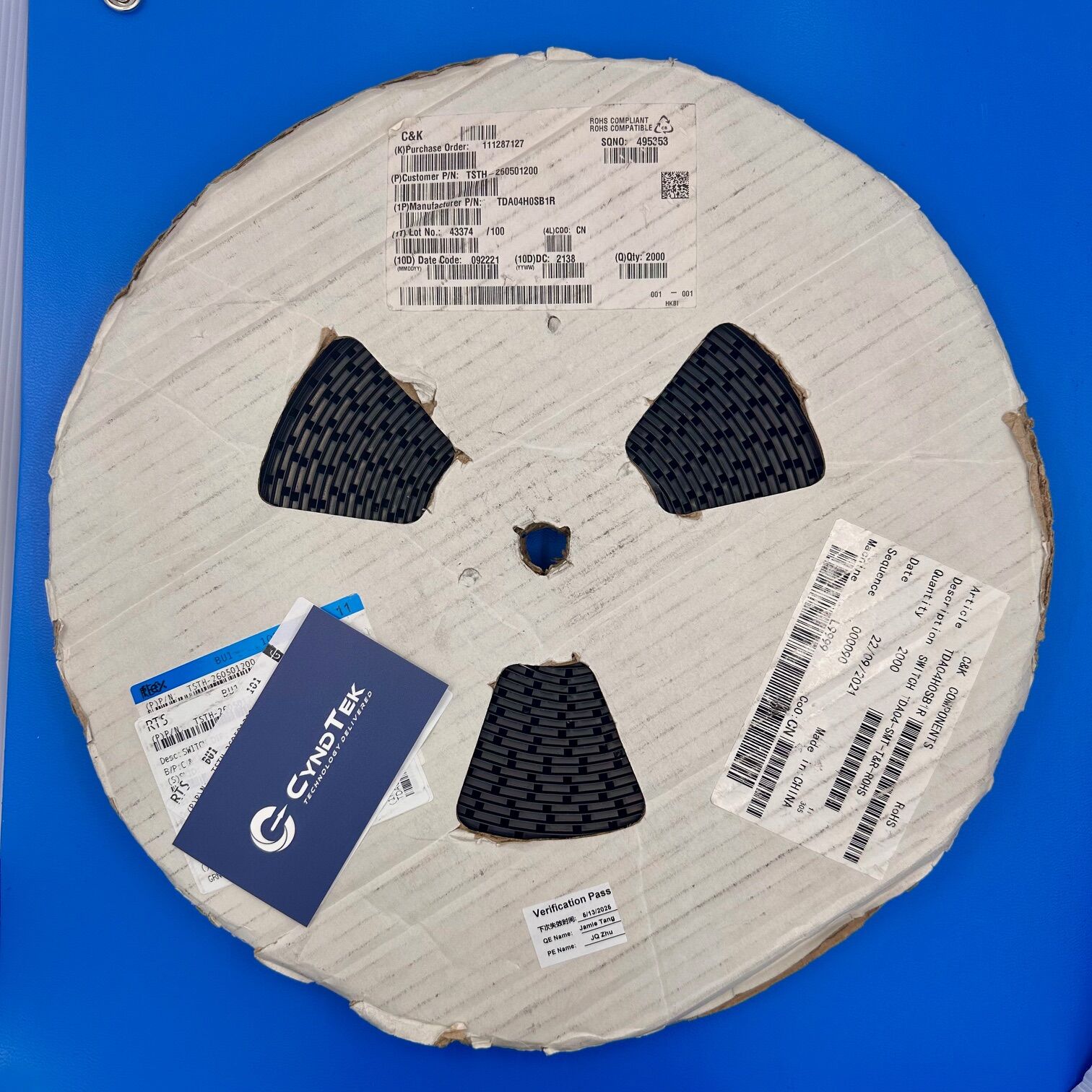

TDA04H0SB1R

TDA04H0SB1R Specifications

Manufacturer: C&K
Part Number: TDA04H0SB1R
Product Type: Ultra-miniature Surface Mount Half-pitch DIP Switch
Number of Positions: 4
Circuit: Single Pole Single Throw (SPST)
Current Rating: 25 mA
Voltage Rating: 24 VDC
Actuator Type: Standard Slide
Actuator Level: Flush, Recessed
Contact Material: Copper Alloy with Gold Plating
Termination Style: Gull Wing
Pitch: 0.050″ (1.27 mm), Half
Height Above Board: 0.091″ (2.30 mm)
Operating Temperature Range: -40°C to +85°C
Mechanical Life: 1,000 Cycles
Electrical Life: 1,000 Cycles
Washable: Yes
Sealing: Top Tape Seal
Mounting Type: Surface Mount
Package / Case: Tape & Reel
RoHS Status: RoHS Compliant

Key Features

The TDA04H0SB1R from C&K is an ultra-miniature surface mount half-pitch DIP switch designed for applications requiring compact and reliable switching solutions. With four SPST positions, it offers precise control in electronic circuits. The switch’s bifurcated contacts enhance electrical reliability, ensuring consistent performance over its lifespan. Its standard slide actuator, combined with a flush, recessed profile, facilitates easy operation while maintaining a low profile on the PCB. The gull wing termination style supports secure surface mounting, and the 0.050″ pitch allows for high-density PCB layouts. Rated for 25 mA at 24 VDC, this switch operates effectively within a temperature range of -40°C to +85°C. Additionally, the top tape seal provides process sealing for surface mount soldering and washable processing, making it suitable for various manufacturing environments.

Applications

Hand-held electronic devices
Portable computers and electronic devices
Instrumentation and controls
Communication equipment
Medical devices

Product Overview

C&K’s TDA04H0SB1R is engineered to meet the demands of modern electronic devices requiring compact and reliable switch solutions. Its ultra-miniature design and half-pitch configuration make it ideal for space-constrained applications. The switch’s bifurcated contacts ensure increased electrical reliability, while the top tape seal allows for process sealing during surface mount soldering and washable processing. With a mechanical and electrical life of 1,000 cycles, it provides durable performance in various applications. The operating temperature range of -40°C to +85°C ensures functionality in diverse environmental conditions. Overall, the TDA04H0SB1R offers a combination of compact design, reliability, and ease of integration. Thus making it a suitable choice for a wide range of electronic applications.
