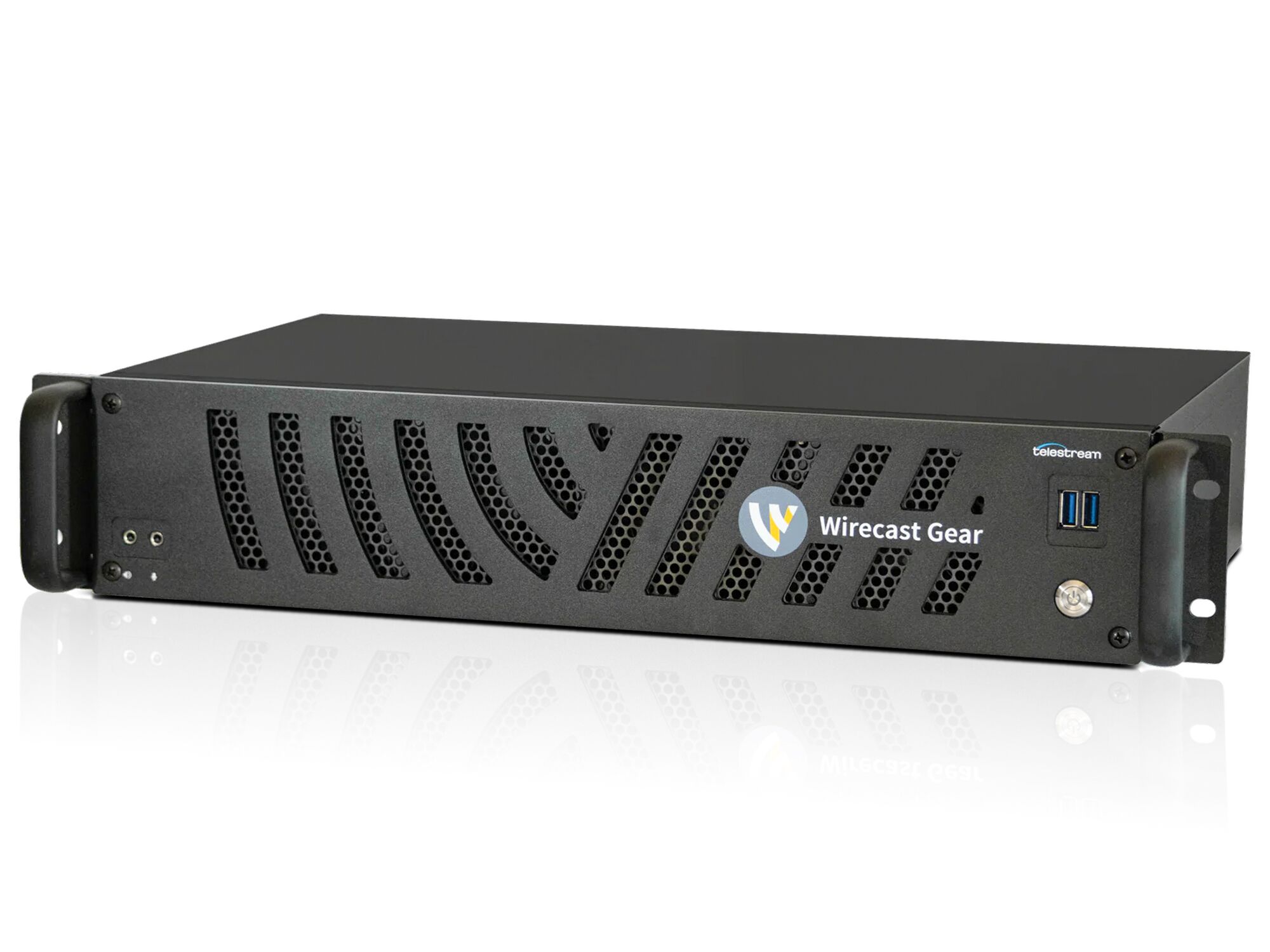

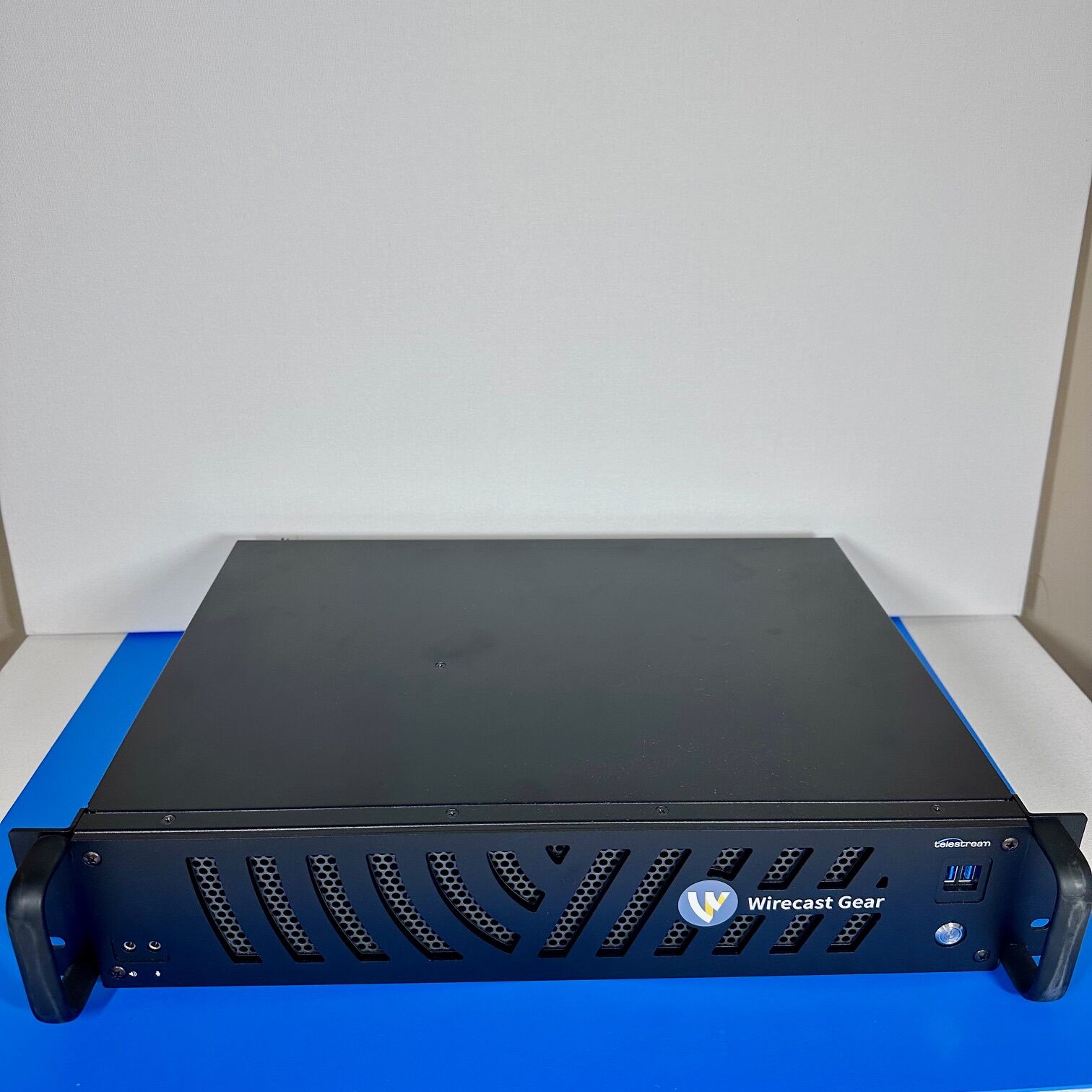

Telestream Wirecast 520

Telestream Wirecast 520 – Next Generation Live Video Streaming System (SDI)

Installed:

• 43052-56 Audio Cable
• Black Magic Decklink Duo 2
• GPU-NVQT400/Inc. Mini Display Port Adapter x3
• ASUS Pro WS X570-ACE ATX AMD AM4 X570 4DIMM 4xPCIe

Telestream Wirecast 520 Features:

• AMD Ryzen 5 6-core/12-thread processor
• NVIDIA Quadro GPU for acceleration and encoding
• 16GB System Memory
• 9 USB 3.1 ports (including rear USB-C & dual front-mounted USB-A)
• 1TB SATA3 SSD Storage Drive

Specifications:

Hardware Internal Configuration:

• CPU: AMD Ryzen 5 5600X 6-core/12-thread 4.6GHz (max)
• Motherboard Chipset: AMD X570
• GPU: NVIDIA Quadro T400 (HD models) / T1000 (4K models)
• Memory: 16GB DDR4-3200
• System Drive: 250GB NVMe M.2
• Storage Drive: 1TB SATA3

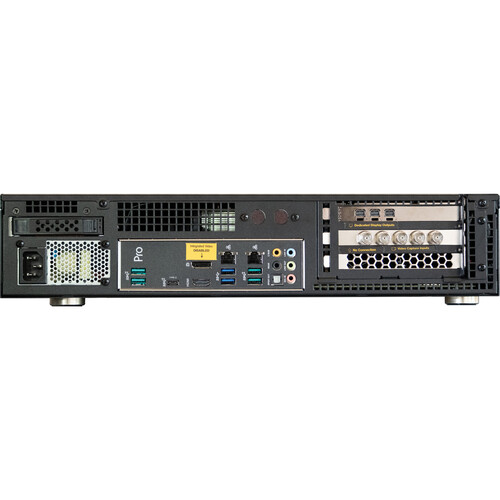

• USB:
  • USB 3.1 Gen 2: 1x USB-C rear, 4x USB-A rear
  • USB 3.1 Gen 1: 2x USB-A front, 2x USB-A rear
• Network: 2x RJ-45 IEEE 802.3ab Gigabit Ethernet
• Audio: 2-ch Line In/Out, Mic In/Out + Front Line Out / Mic In + Ls/Rs/Lb/Rb/C/S

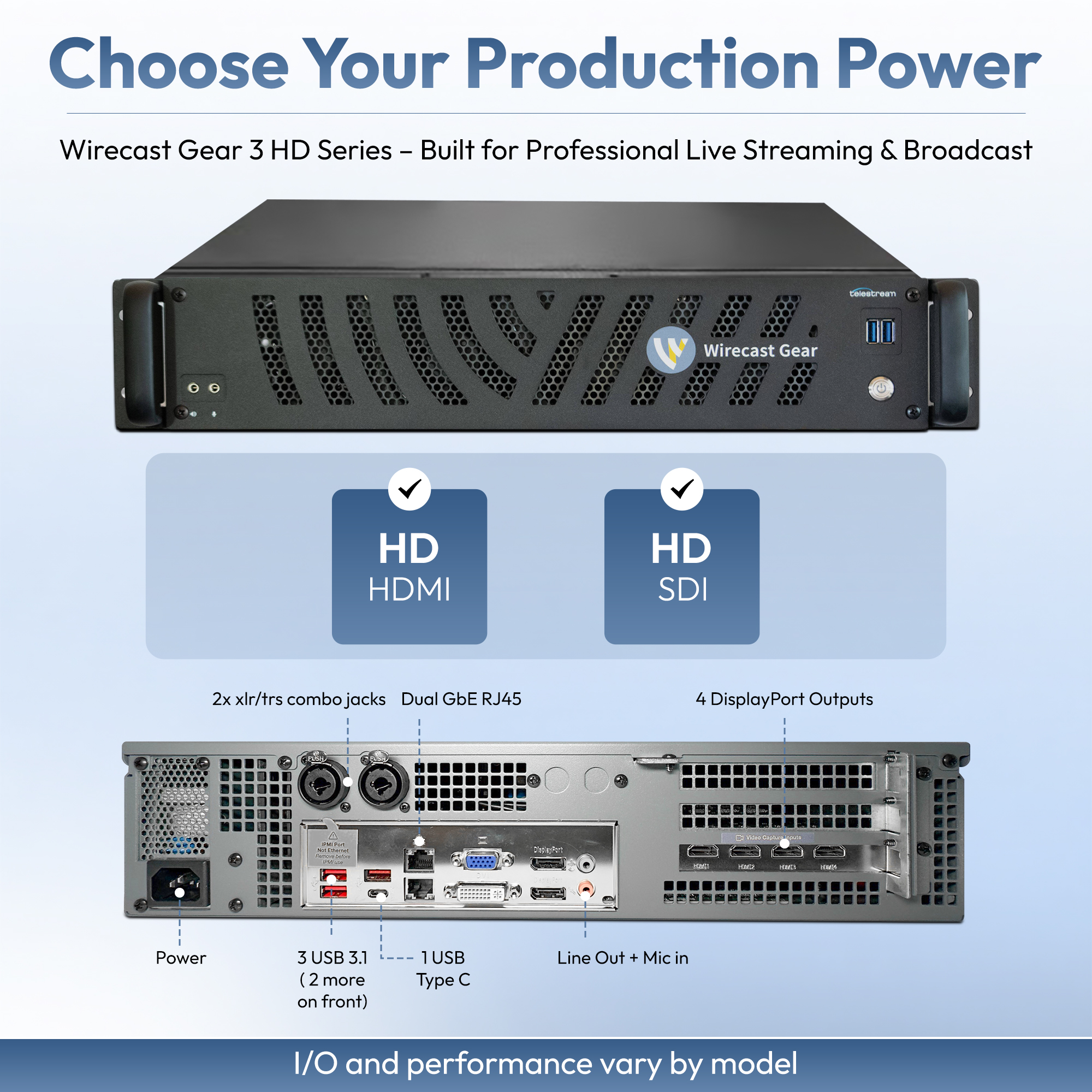

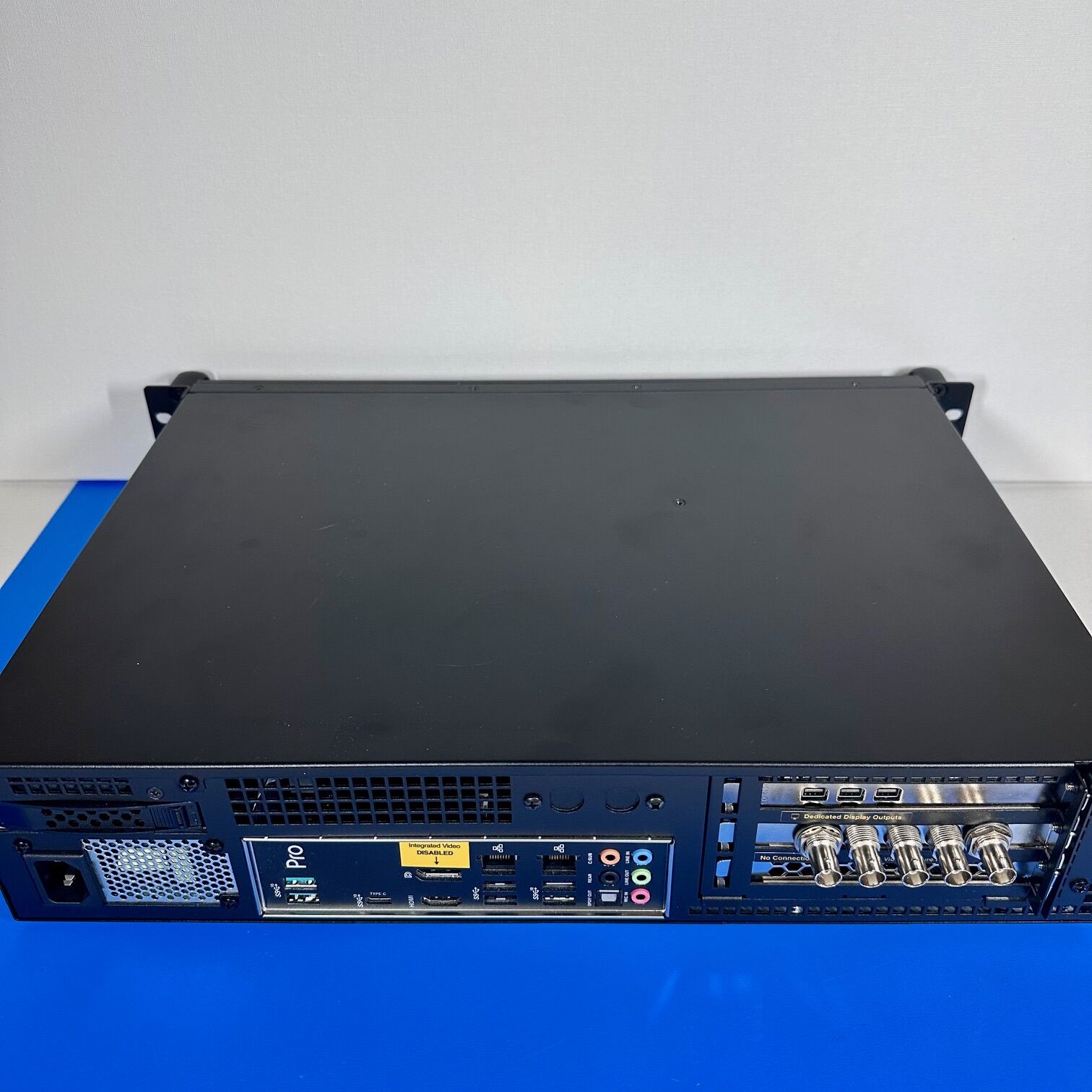

Video Inputs and Outputs:

• Display Output:
  • Wirecast Gear 3 HD SDI: 3x Mini DisplayPort 1.4 1920×1080 @ 60Hz max
  • Can assign one input instead to 3G-SDI SMPTE 422M, 1920×1080 @ 60Hz max
• Capture Input:
  • Wirecast Gear 3 HD SDI: 4x 3G-SDI SMPTE 424M 1920×1080 @ 60Hz 4:2:2 max

Physical:

• Dimensions: 16.7 x 12 x 3.5″ (42.4 x 30.5 x 8.9cm)
• 2RU x 19″ w/handles
• Weight: 14.5-15.5 lb. (unit only)

Power:

• Input Voltage: 90VAC-264VAC RMS Single Phase 47Hz-63Hz
• Input Current: 8A @ 115VAC 60Hz RMS, 4A @ 230VAC 50Hz RMS, Single Phase
• Input Connection: IEC 60320 C14 3-pin
• Operating Temperature/Humidity:
  • 32 to 104°F @ 20-80% (operating)
  • -4 to 185°F @ 10-90% (storage)

Item Includes:

• 1x Wirecast Gear 3 520 series HD-SDI Professional Streaming Device
• 1x Power cable
• 1x Wireless keyboard
• 1x Wireless mouse
• 1x USB dongle for both the keyboard and mouse
• AA batteries for both the keyboard and mouse

Support:

• For support and capture card updates, visit: Telestream Wirecast – Help
• For additional products listed on ebay: Cyndtek | eBay Stores
• For additional options visit: Shop – Cyndtek

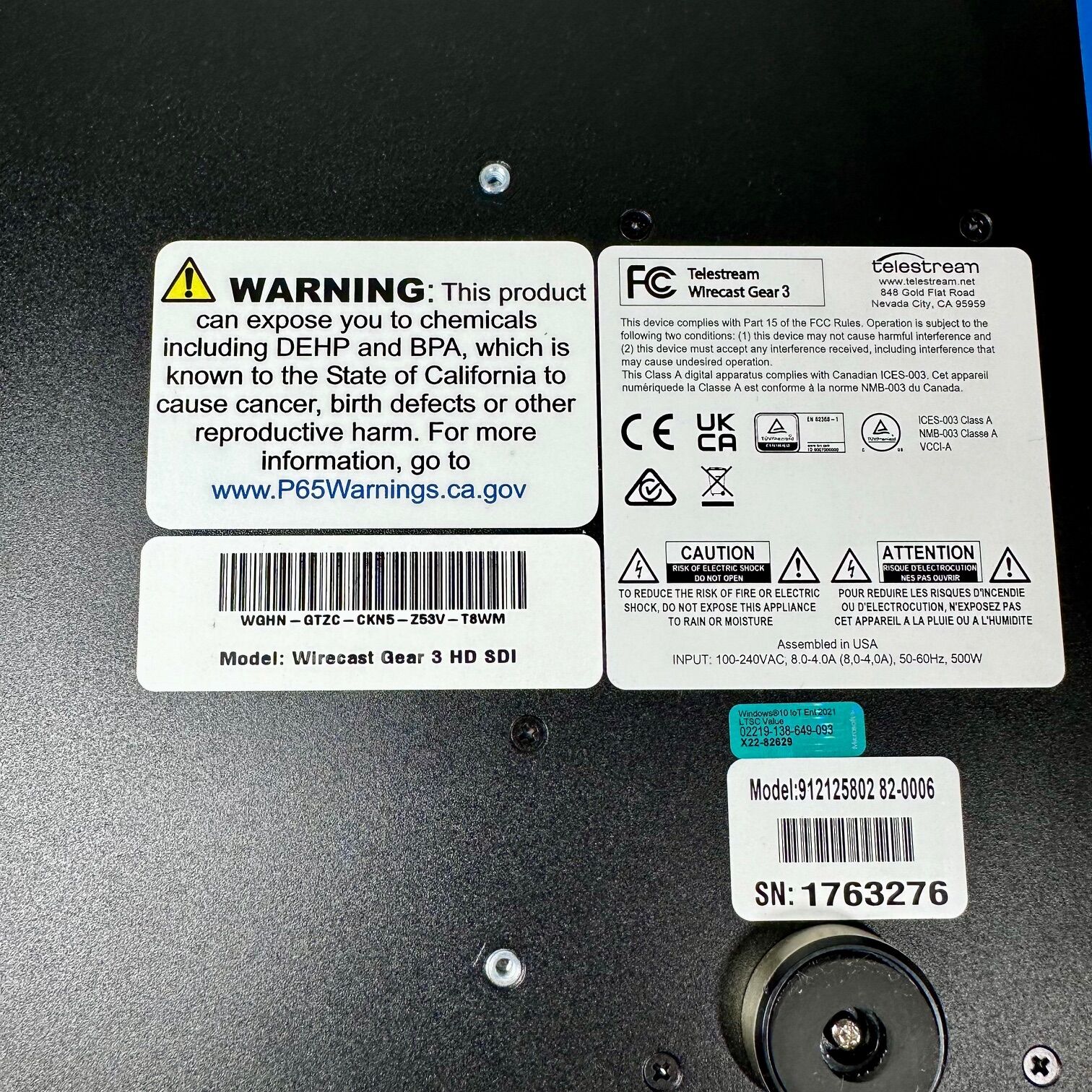

• PN: WCG2-520
