Telestream Wirecast 510

Telestream Wirecast  510 – Next Generation Live Video Streaming System (HDMI)

Included Accessories:

• Installed:
  • 43052-56 Audio Cable
  • YUAN SC550 N4 HDMI
  • GPU-NVQT400/Inc. Mini Display Port Adapter x3
  • ASUS Pro WS X570-ACE ATX AMD AM4 X570 4DIMM 4xPCIe

Features:

• AMD Ryzen 5 6-core/12-thread processor
• NVIDIA Quadro GPU for acceleration and encoding
• 16GB System Memory
• 9 USB 3.1 ports (including rear USB-C & dual front-mounted USB-A)
• 1TB SATA3 SSD Storage Drive

Specifications:

Hardware Internal Configuration:

• CPU: AMD Ryzen 5 5600X 6-core/12-thread 4.6GHz (max)
• Motherboard Chipset: AMD X570
• GPU: NVIDIA Quadro T400 (HD models)
• Memory: 16GB DDR4-3200
• System Drive: 250GB NVMe M.2
• Storage Drive: 1TB SATA3

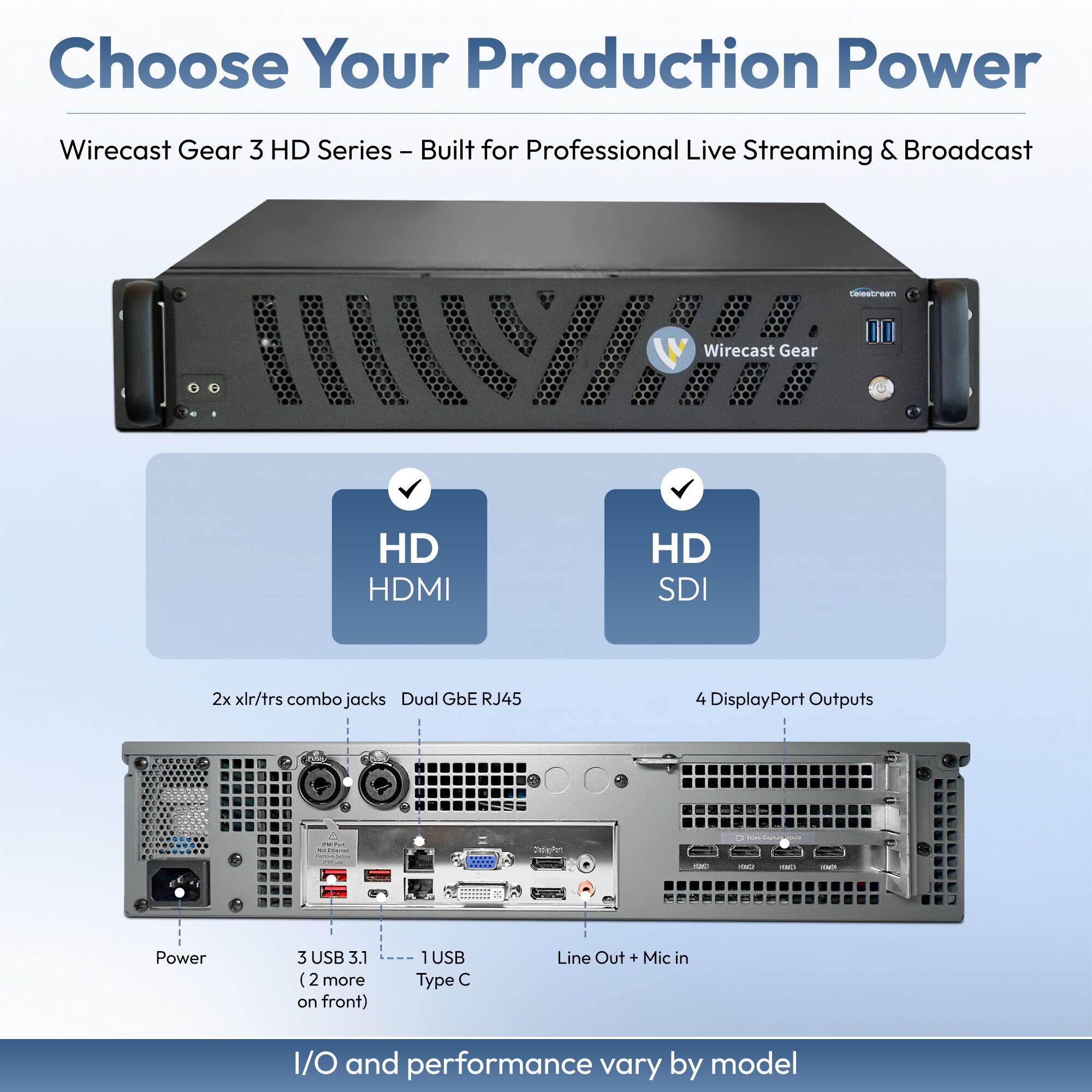

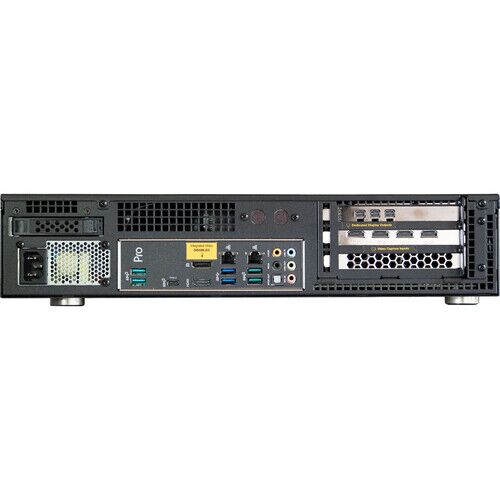

• USB:

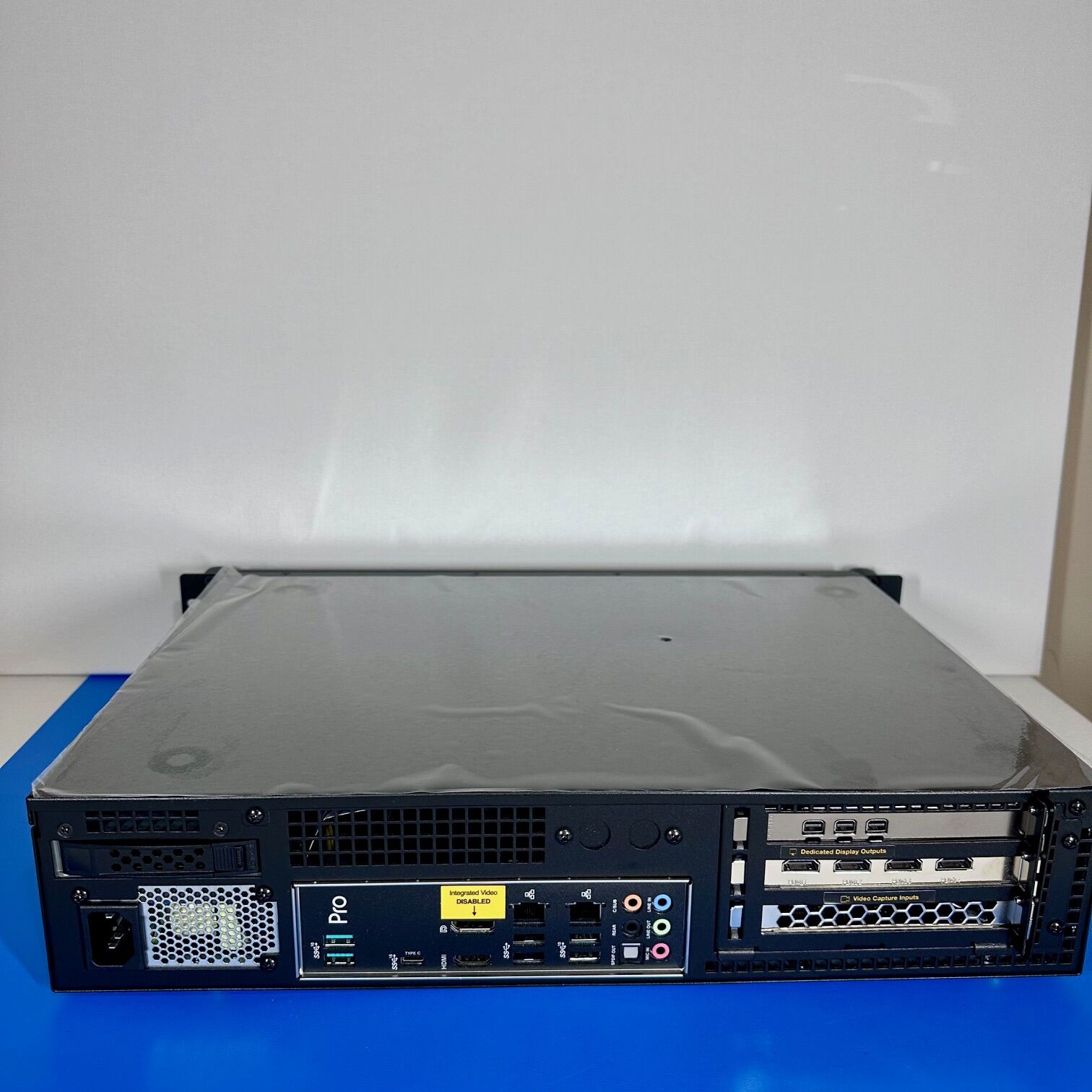

  • USB 3.1 Gen 2: 1x USB-C rear, 4x USB-A rear
  • USB 3.1 Gen 1: 2x USB-A front, 2x USB-A rear
• Network: 2x RJ-45 IEEE 802.3ab Gigabit Ethernet
• Audio: 2-ch Line In/Out, Mic In/Out + Front Line Out / Mic In + Ls/Rs/Lb/Rb/C/S

Video Inputs and Outputs:

• Display Output – Wirecast Gear 3 HD HDMI: 3x Mini DisplayPort 1.4 920×1080 @ 60Hz max
• Capture Input – Wirecast Gear 3 HD HDMI: 4x HDMI 1.4a (non-HDCP)

Physical:

• Dimensions: 16.7 x 12 x 3.5″, 2RU x 19″ w/handles
• Weight: 14.5-15.5 lb. (unit only)

Power:

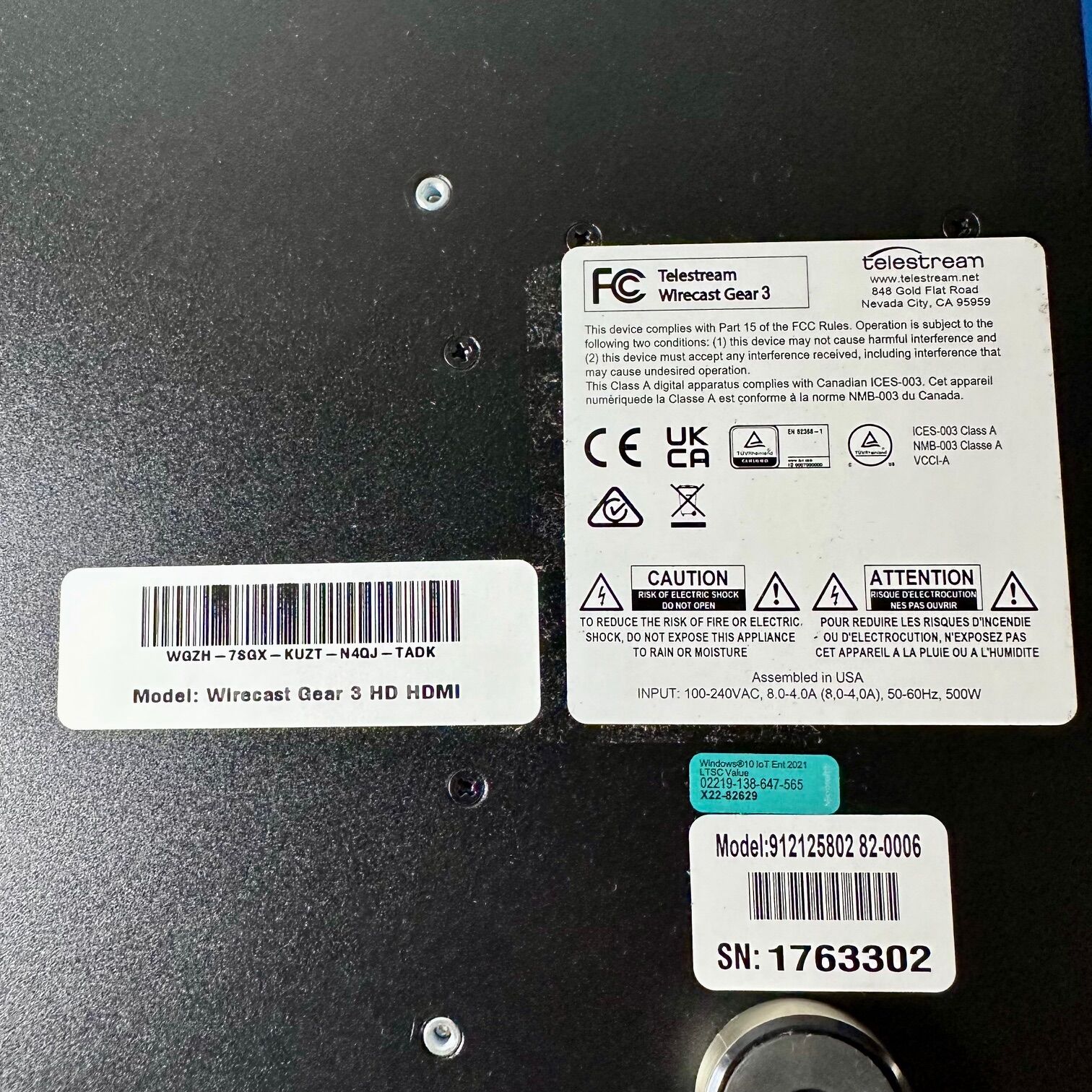

• Input Voltage: 90VAC-264VAC RMS Single Phase 47Hz-63Hz
• Input Current: 8A @ 115VAC 60Hz RMS, 4A @ 230VAC 50Hz RMS, Single Phase
• Input Connection: IEC 60320 C14 3-pin
• Operating Temperature/Humidity: 32 – 104 F @ 20-80% (operating), -4 – 185 F @ 10-90% (storage)

Item Includes:

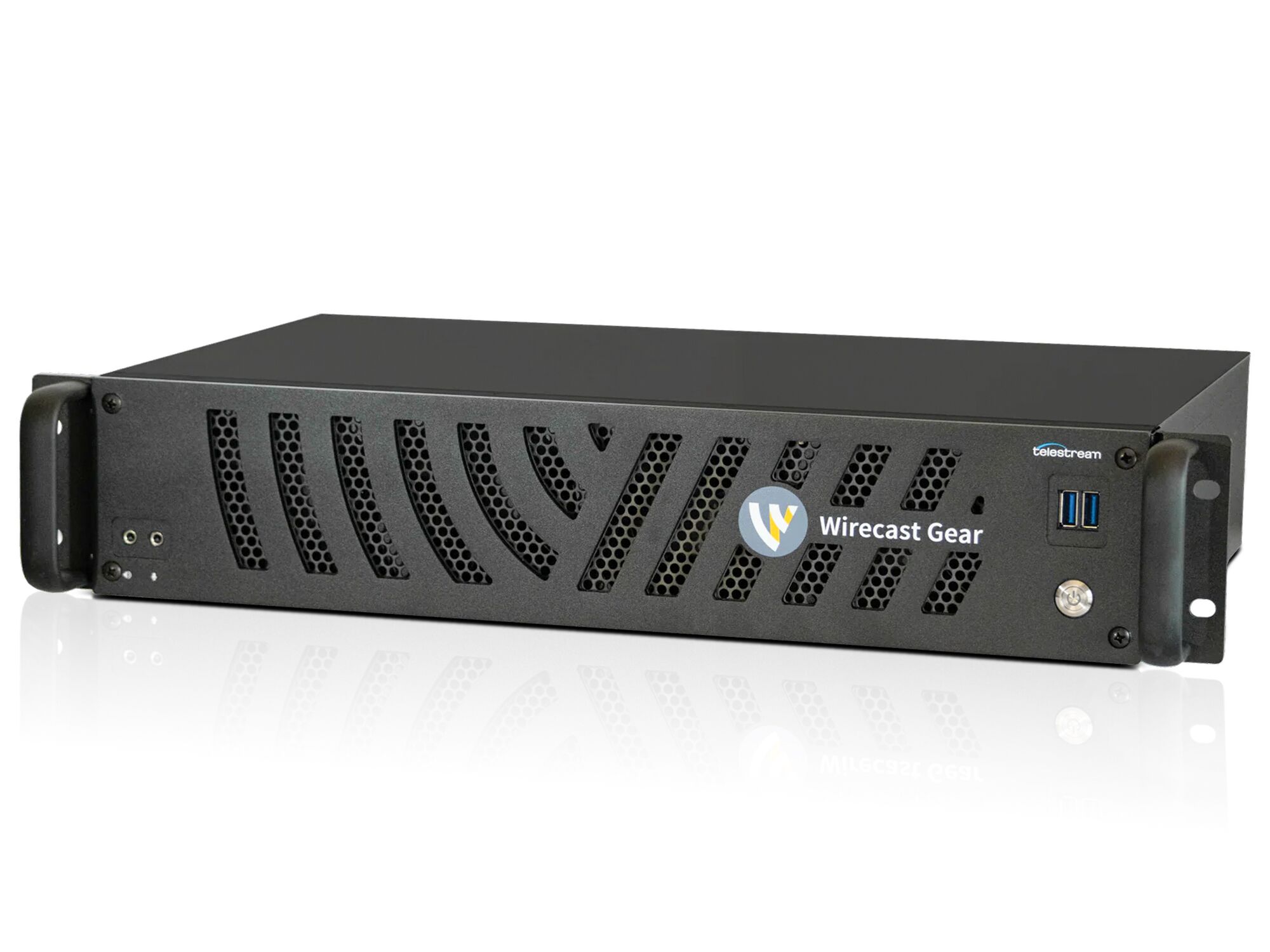

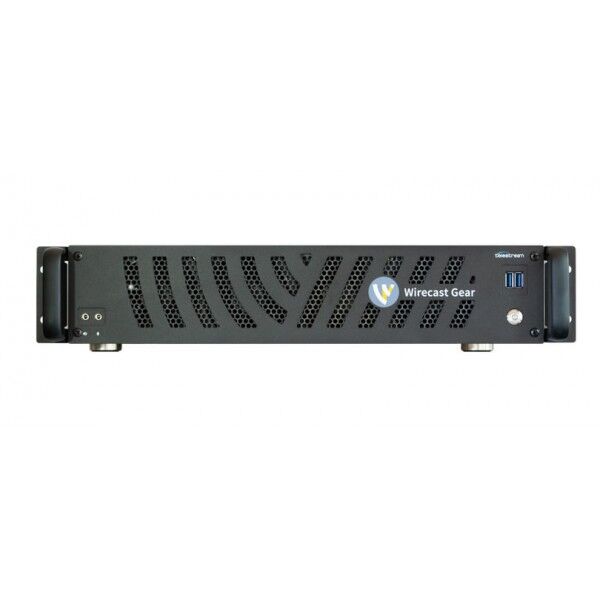

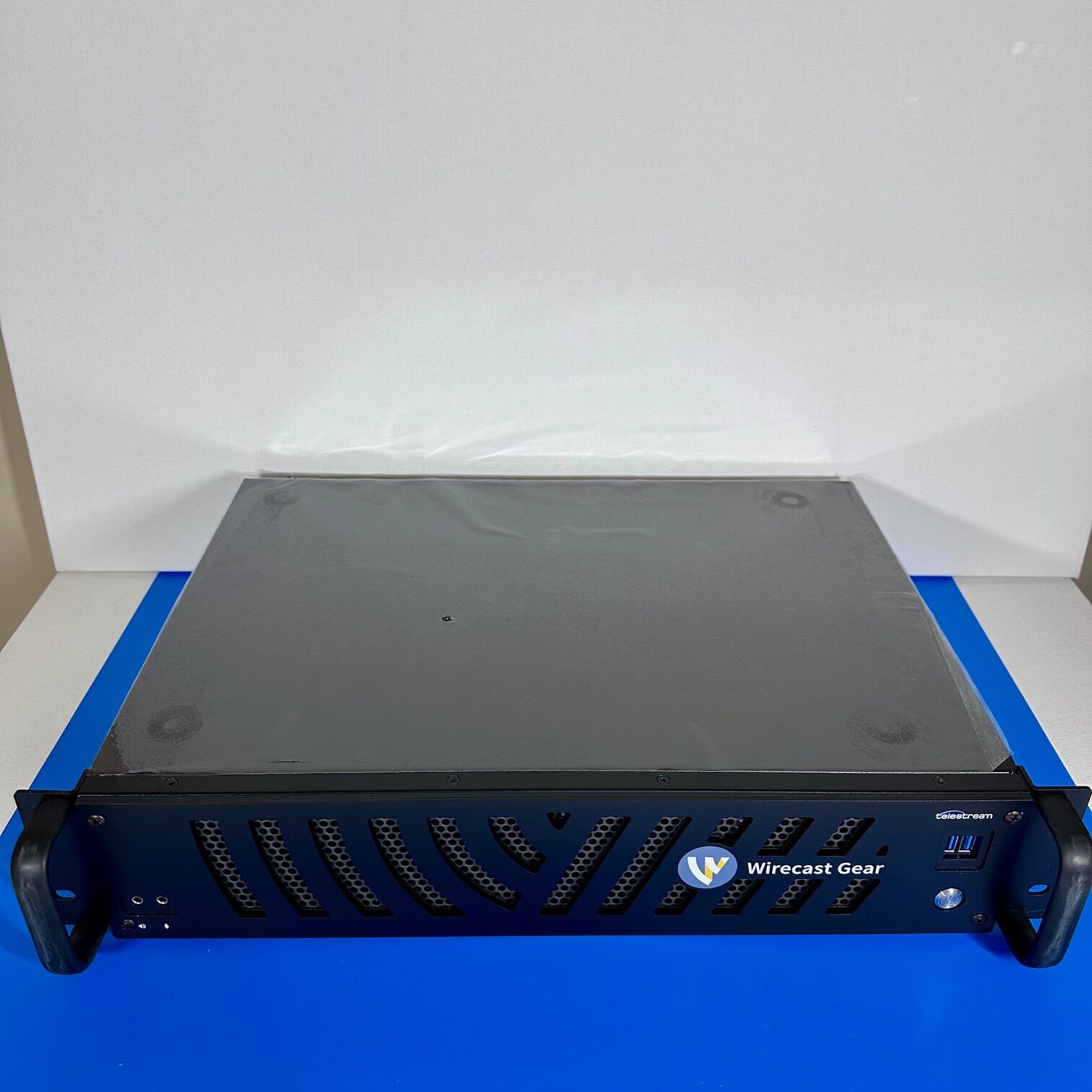

• 1x Wirecast Gear 3 HD HDMI Professional Streaming Device

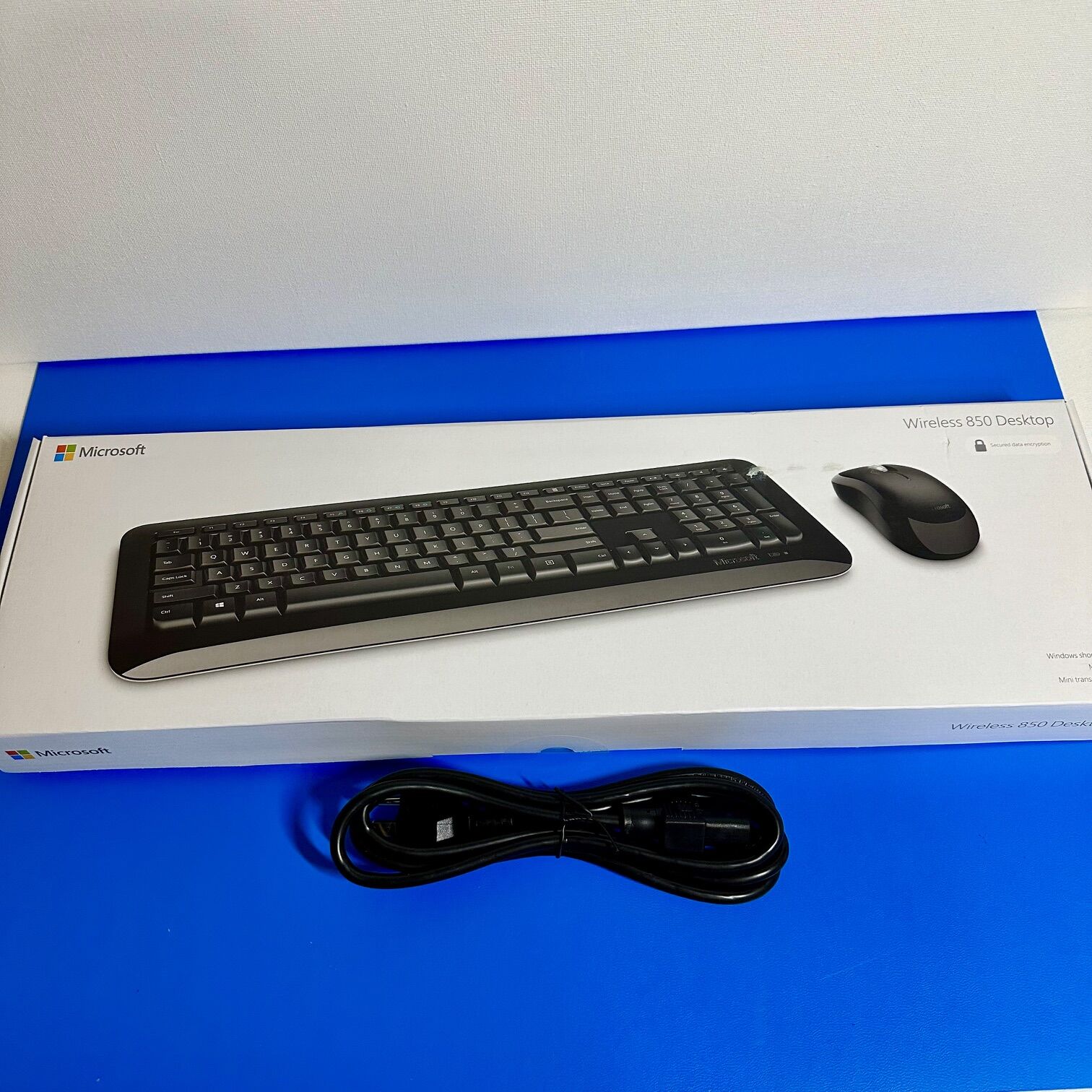

• 1x Power cable
• 1x Wireless keyboard
• 1x Wireless mouse
• 1x USB dongle for both the keyboard and mouse

Support:

• For support and capture card updates, visit: Telestream Wirecast – Help
• For additional products listed on ebay: Cyndtek | eBay Stores
• For additional options visit: Shop – Cyndtek
• PN: WCG2-510

For more information about the Telestream Wirecast Gear 510 or to discuss your specific streaming needs, please contact Cyndtek. Our team of experts is ready to assist you in finding the perfect solution for your professional video production and streaming requirements.
