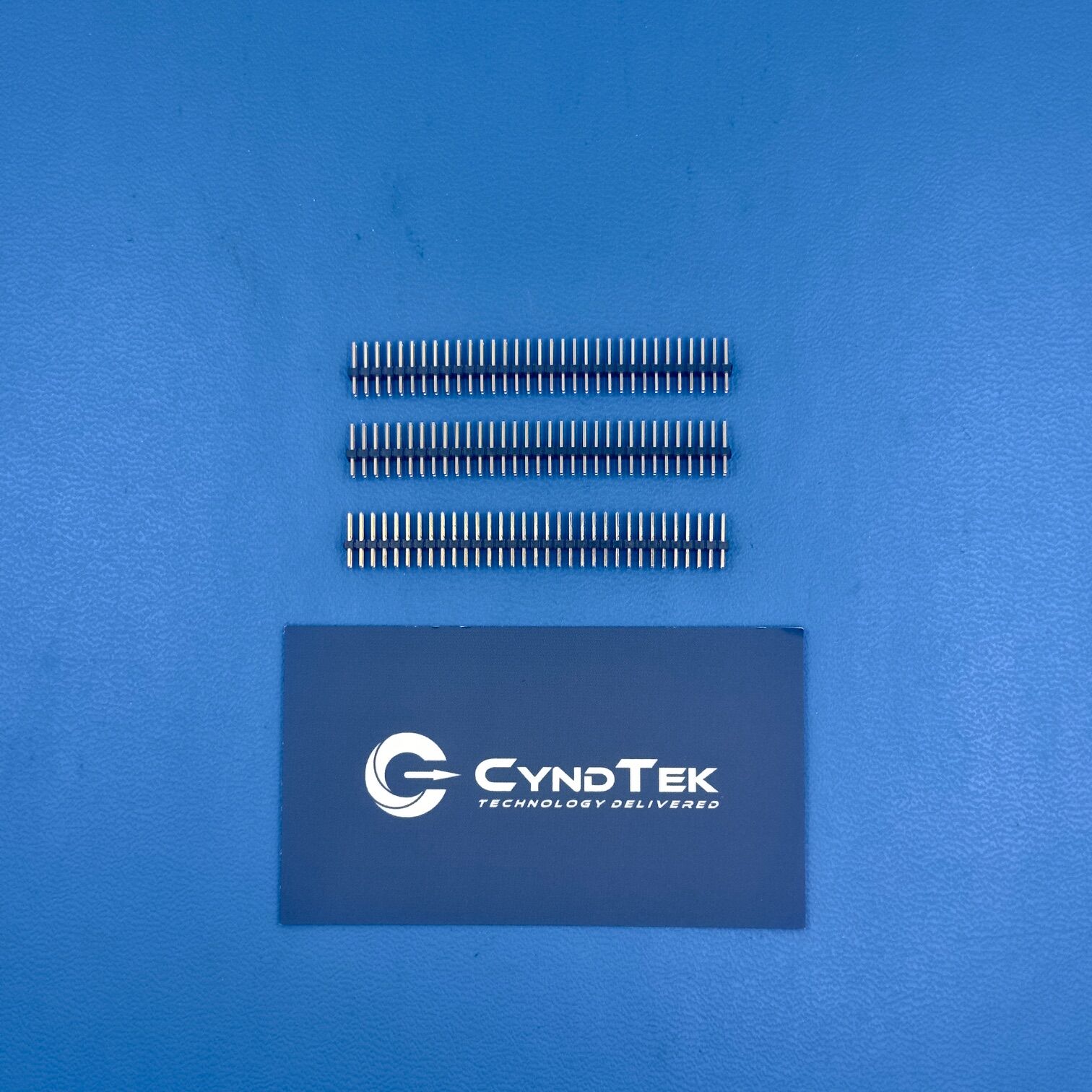

TMM-133-06-G-D-SM Specifications
Manufacturer: Samtec
Part Number: TMM-133-06-G-D-SM
Product Type: Board-to-Board Header
Number of Positions: 66
Pitch: 2.00 mm
Row Configuration: Dual Row
Mounting Type: Surface Mount
Contact Plating: Gold
Contact Material: Phosphor Bronze
Insulator Material: High Temperature Thermoplastic
Current Rating: Industry Standard for 2 mm Headers
Operating Temperature Range: -55°C to +125°C
Series: TMM Tiger Eye
Packaging: Factory
Key Features
The TMM-133-06-G-D-SM is a 2.00 mm pitch dual row surface mount header from Samtec’s Tiger Eye series. It provides 66 total positions in a compact board-to-board configuration. Additionally, gold-plated contacts enhance signal integrity and corrosion resistance. The Tiger Eye contact system supports reliable mechanical retention and consistent mating performance. Because it is designed for surface mount assembly, it integrates efficiently into automated PCB production. As a result, it delivers dependable interconnect performance in high-density electronic systems.
Applications
Embedded control boards
Industrial automation modules
Telecommunication equipment
Test and measurement platforms
Data acquisition systems
Robotics control assemblies
Compact computing platforms
High-density board-to-board interconnects
Product Overview
The TMM-133-06-G-D-SM from Samtec delivers stable and reliable board-level connectivity in compact electronic designs. First, the 2.00 mm pitch supports higher density layouts compared to traditional 2.54 mm headers. Furthermore, the dual row configuration enables organized signal routing within limited board space. Because the Tiger Eye contact system improves mating durability, it supports repeated insertion cycles.
Moreover, surface mount termination enhances automated assembly efficiency. In addition, gold contact plating improves long-term electrical reliability. Therefore, this header is suitable for both new system development and production builds. Overall, it provides compact integration, strong mechanical performance, and consistent signal transmission.
