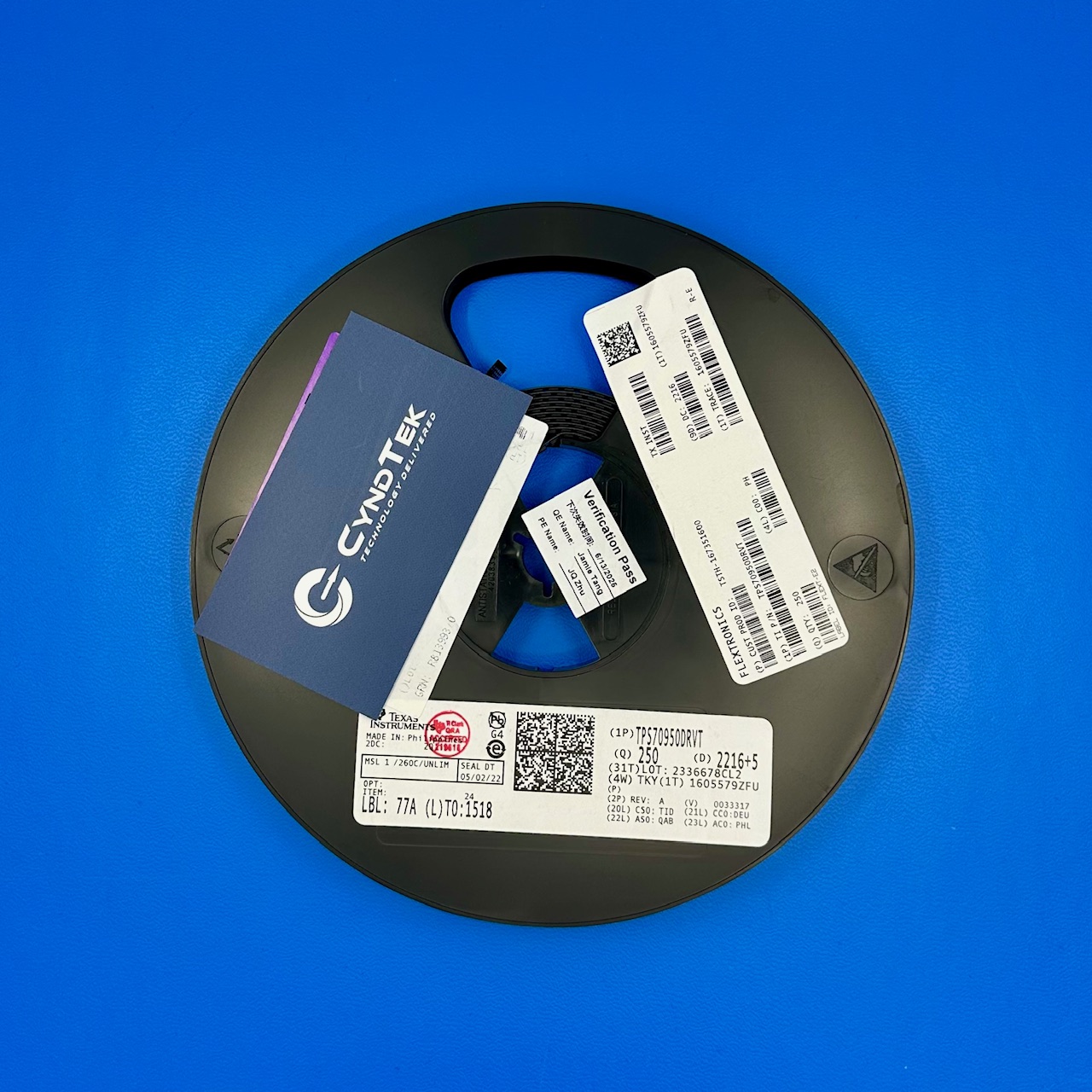

TPS70950DRVT

TPS70950DRVT Specifications

Manufacturer: Texas Instruments
Part Number: TPS70950DRVT
Product Type: Low-Dropout (LDO) Voltage Regulator
Output Voltage: 5.0 V
Output Current: Up to 150 mA
Peak Output Current: 200 mA
Input Voltage Range: 2.7 V to 30 V
Dropout Voltage: 1.2 V at 150 mA
Quiescent Current: 1 µA
Shutdown Current: 150 nA
Voltage Accuracy: ±2% over temperature
Protection Features: Thermal shutdown, overcurrent protection, reverse current blocking
Package / Case: 6-Pin WSON (2.00 mm × 2.00 mm)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +125°C
RoHS Status: RoHS Compliant

Key Features

The TPS70950DRVT from Texas Instruments is a precision low-dropout regulator designed to deliver high performance with minimal power draw. With a fixed 5.0 V output and support for up to 150 mA of continuous current, it can also handle brief peak loads up to 200 mA. Its broad input voltage range of 2.7 V to 30 V provides flexibility in sourcing power from various battery and DC systems. Notably, the device consumes just 1 µA during normal operation and only 150 nA when in shutdown. Making it ideal for energy-conscious, always-on systems. It incorporates advanced protection features like thermal shutdown, reverse current blocking, and current limiting to ensure safe and stable operation. Additionally, its ±2% output accuracy and compact WSON-6 footprint make it an excellent choice for space-constrained, low-power electronics.

Applications

Always-on power rails in wireless smoke detectors and heat sensors
Battery-powered motion sensors in home security and automation systems
Low-power control systems in cordless power tools
Embedded modules inside electricity and water metering devices
Power regulators in battery-operated appliance control units

Product Overview

The TPS70950DRVT offers exceptional efficiency and reliability in low-power applications requiring tight voltage regulation. Designed to support systems that remain operational over long battery life cycles, it delivers a highly stable 5.0 V output with minimal dropout, even under load. The device’s ultralow quiescent and shutdown currents make it ideal for standby-mode power rails where every microamp counts. Its protection mechanisms guard against electrical faults and ensure long-term stability in demanding environments. Thanks to its compact 6-pin WSON package and full industrial temperature range support, it integrates easily into tight board layouts. Whether used in safety systems, consumer devices, or smart utility applications, the TPS70950DRVT provides power with confidence and efficiency.
