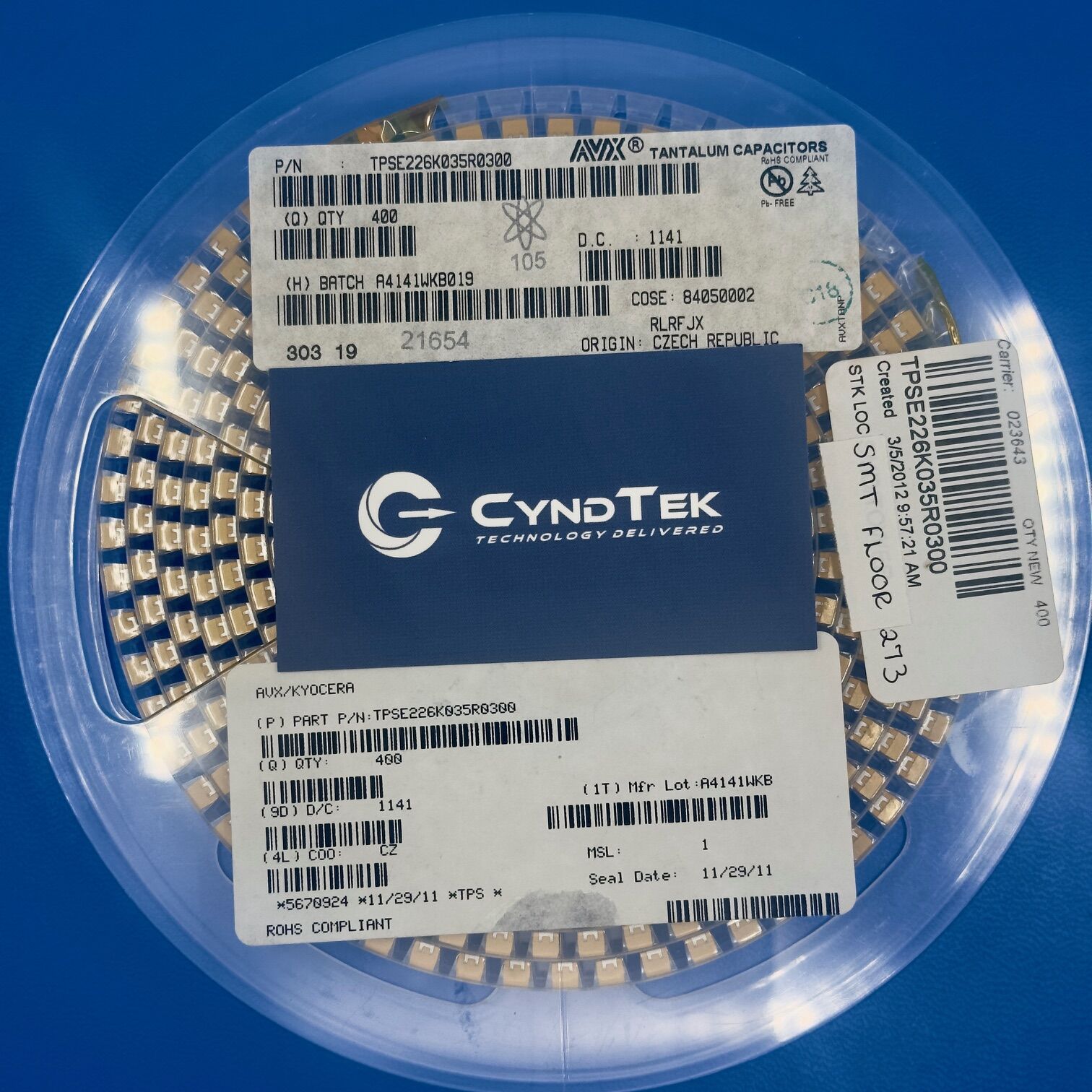

TPSE226K035R0300 Specifications
Manufacturer: AVX
Part Number: TPSE226K035R0300
Product Type: Solid Tantalum Capacitor
Capacitance: 22 µF
Voltage Rating: 35 V
Tolerance: ±10%
Equivalent Series Resistance: 0.3 Ohm
Case Size: E Case
Mounting Type: Surface Mount
Technology: MnO2 Tantalum
Operating Temperature Range: -55°C to +125°C
Application Class: Commercial and Industrial
Packaging: Factory
Key Features
The TPSE226K035R0300 is a surface mount solid tantalum capacitor designed for stable bulk capacitance and filtering applications. It provides 22 µF capacitance with a 35 V rating for reliable voltage margin. Additionally, the 0.3 ohm ESR supports efficient ripple current handling. The E case package allows integration into compact PCB layouts. Because it uses manganese dioxide technology, it delivers consistent performance across standard operating environments. As a result, it supports dependable decoupling and power stabilization in commercial and industrial electronics.
Applications
Switch mode power supplies
Industrial control boards
Telecommunication equipment
LED driver circuits
DC-DC converter modules
Consumer electronic assemblies
Embedded system power rails
General purpose decoupling networks
Product Overview
The TPSE226K035R0300 from AVX delivers reliable capacitance performance in compact surface mount designs. First, the 22 µF value supports bulk energy storage and filtering functions. Furthermore, the 35 V rating ensures suitable headroom for regulated supply rails. Because the device features controlled ESR characteristics, it enhances ripple suppression and transient response.
Moreover, the E case footprint allows automated assembly and high-density PCB placement. In addition, manganese dioxide construction provides predictable electrical behavior under typical operating conditions. Therefore, it is suitable for both new system builds and replacement applications. Overall, this tantalum capacitor offers stable filtering capability, efficient ripple handling, and dependable long-term operation.
