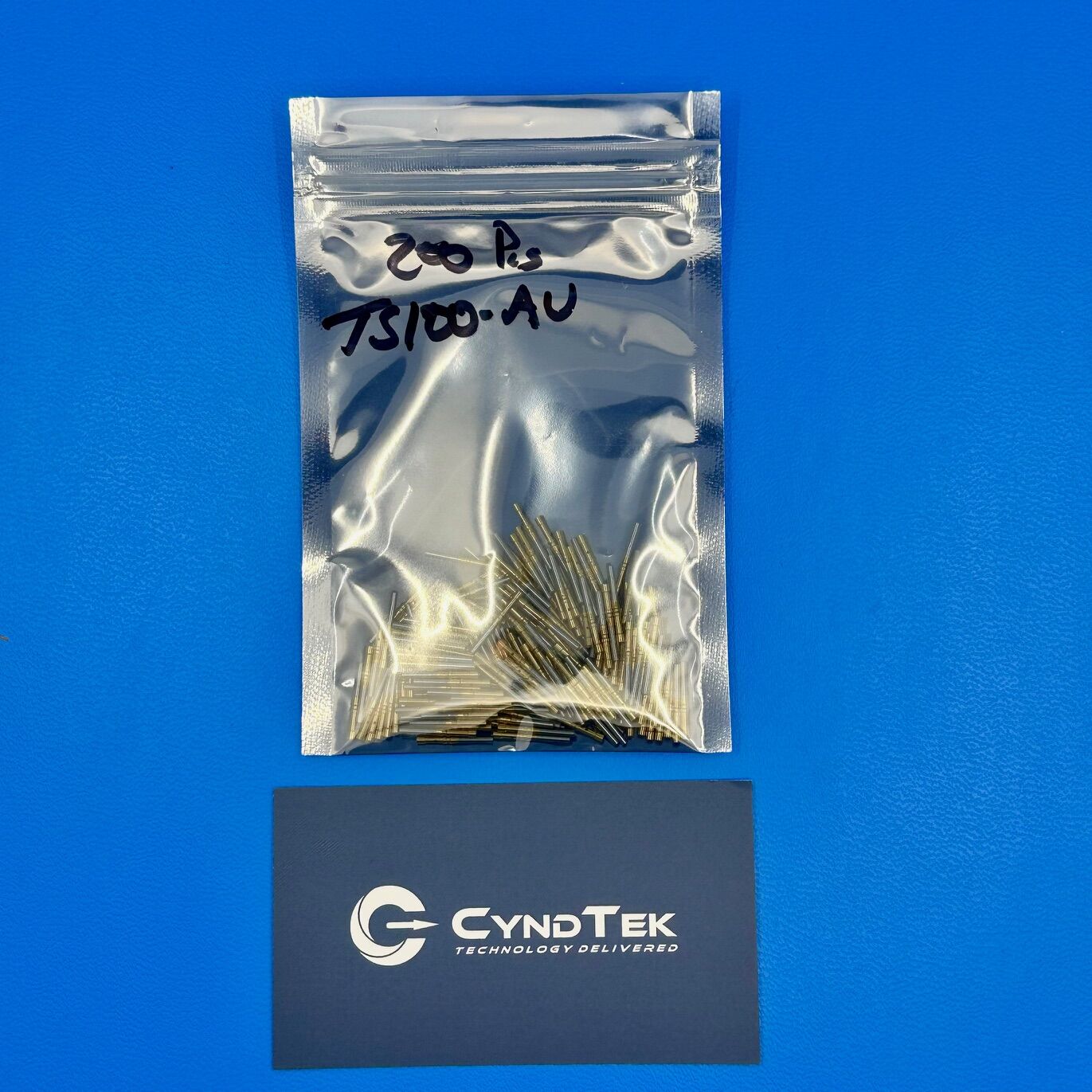

TS-100AU Specifications
Manufacturer: Eaton
Part Number: TS-100AU
Device Type: Connector contact
Contact Type: Machined pin contact
Contact Gender: Male pin
Termination Method: Screw termination
Supported Wire Size: 22 AWG to 26 AWG
Current Rating: Up to 5 A
Voltage Rating: Low-voltage signal applications
Body Orientation: Straight
Contact Material: Machined metal alloy
Installation Style: Field installable contact
Operating Temperature Range: -55 °C to +125 °C
Packaging Type: Bulk
Category: Connector
Key Features
This machined pin contact supports secure wire termination. It uses a screw clamp for easy installation. As a result, field wiring is faster. The contact handles up to 5 A. Therefore, it fits control and signal circuits. The straight body supports clean connector assembly. In addition, the metal construction improves durability. This helps maintain stable electrical contact.
Applications
Industrial control panel wiring
Field-installed connector assemblies
Automation and control equipment
Wiring harness repairs
Signal interconnect systems
Equipment interface connections
Product Overview
The TS-100AU from Eaton is designed for reliable wire termination in connector assemblies. First, it accepts wire sizes from 22 AWG to 26 AWG. This supports common control wiring. Next, the screw termination provides a firm mechanical hold. Because of this, wire pullout risk is reduced.
In addition, the machined metal pin improves electrical conductivity. This helps maintain consistent signal performance. The contact also supports operation across a wide temperature range. As a result, it performs well in industrial environments. The straight contact design simplifies alignment during installation. Therefore, assembly time is reduced.
Overall, this connector contact balances ease of use and durability. It is well suited for field wiring and equipment interfaces. Engineers rely on it for dependable signal connections.
Contact Us
For pricing, availability, or technical questions regarding TS-100AU, contact Cyndtek today. We supply factory-new electronic components for production and engineering needs. Email Sales@Cyndtek.com to request availability and lead time details.
