TS3A5018PWR Specifications
Manufacturer: Texas Instruments
Part Number: TS3A5018PWR
Product Type: Quad SPDT Analog Switch
Switch Configuration: 4-Channel, Single-Pole Double-Throw (SPDT)
Number of Channels: 4
ON-State Resistance: 10 Ω maximum
ON-State Resistance Matching: 300 mΩ
Charge Injection: 2 pC
Total Harmonic Distortion: 0.05%
Operating Voltage: 1.8 V to 3.6 V
Bandwidth (-3 dB): 300 MHz
Turn-On Time: 8 ns maximum
Turn-Off Time: 6.5 ns maximum
Off-State Source Capacitance: 4.5 pF
Off-State Drain Capacitance: 9 pF
Off-State Leakage Current: 100 nA maximum
Crosstalk: -48 dB at 10 MHz
Operating Temperature: -40°C to +85°C
Package Type: 16-Pin TSSOP (PW)
Mounting Style: Surface Mount
ESD Protection: 2,000 V HBM / 1,000 V CDM
Latch-Up Performance: Exceeds 100 mA per JESD 78, Class II
Moisture Sensitivity Level: MSL 1
Compliance: RoHS Compliant
Packaging: Factory Tape and Reel
Reel Quantity: 2,000 pieces
Sell Format: Sold by Complete Factory Reel
Key Features
Quad SPDT analog switch with four independent channels
Low 10 Ω maximum ON-state resistance
1.8 V to 3.6 V single-supply operation
300 MHz bandwidth for high-frequency signals
2 pC low charge injection
300 mΩ ON-state resistance matching
0.05% total harmonic distortion
Fast 8 ns turn-on and 6.5 ns turn-off times
Compact 16-pin TSSOP surface-mount package
Factory reel containing 2,000 pieces
Applications
High-speed signal routing
Audio and video switching circuits
Sample-and-hold circuits
Battery-powered electronic equipment
Portable instrumentation
Communication systems
Data acquisition equipment
Industrial control circuits
Test and measurement equipment
Analog signal multiplexing
Product Overview
The TS3A5018PWR from Texas Instruments is a quad single-pole double-throw (SPDT) analog switch. It provides four independent switching channels for analog and digital signals. In addition, its compact 16-pin TSSOP package supports space-saving circuit board designs.
This device operates from a single 1.8 V to 3.6 V power supply. Therefore, it works well in low-voltage and battery-powered electronic systems. The switch also provides low ON-state resistance of 10 Ω maximum. As a result, it helps reduce signal loss during switching operations.
The TS3A5018PWR offers a bandwidth of 300 MHz for high-frequency signal applications. It also features low charge injection of 2 pC. These characteristics help maintain signal integrity in sensitive analog circuits. Furthermore, its low total harmonic distortion supports audio and communication applications.
This analog switch provides fast switching performance. The maximum turn-on time is 8 ns, while the maximum turn-off time is 6.5 ns. Consequently, it supports applications that require rapid signal selection and routing.
The device also includes ESD protection and strong latch-up performance. Its operating temperature range extends from -40°C to +85°C. Therefore, it can support industrial controls, instrumentation, communication equipment, and embedded electronic systems.
Texas Instruments designed this switch for reliable analog and digital signal routing. In addition, its four-channel configuration reduces the need for separate switching components. This can simplify circuit layouts and help conserve valuable board space.

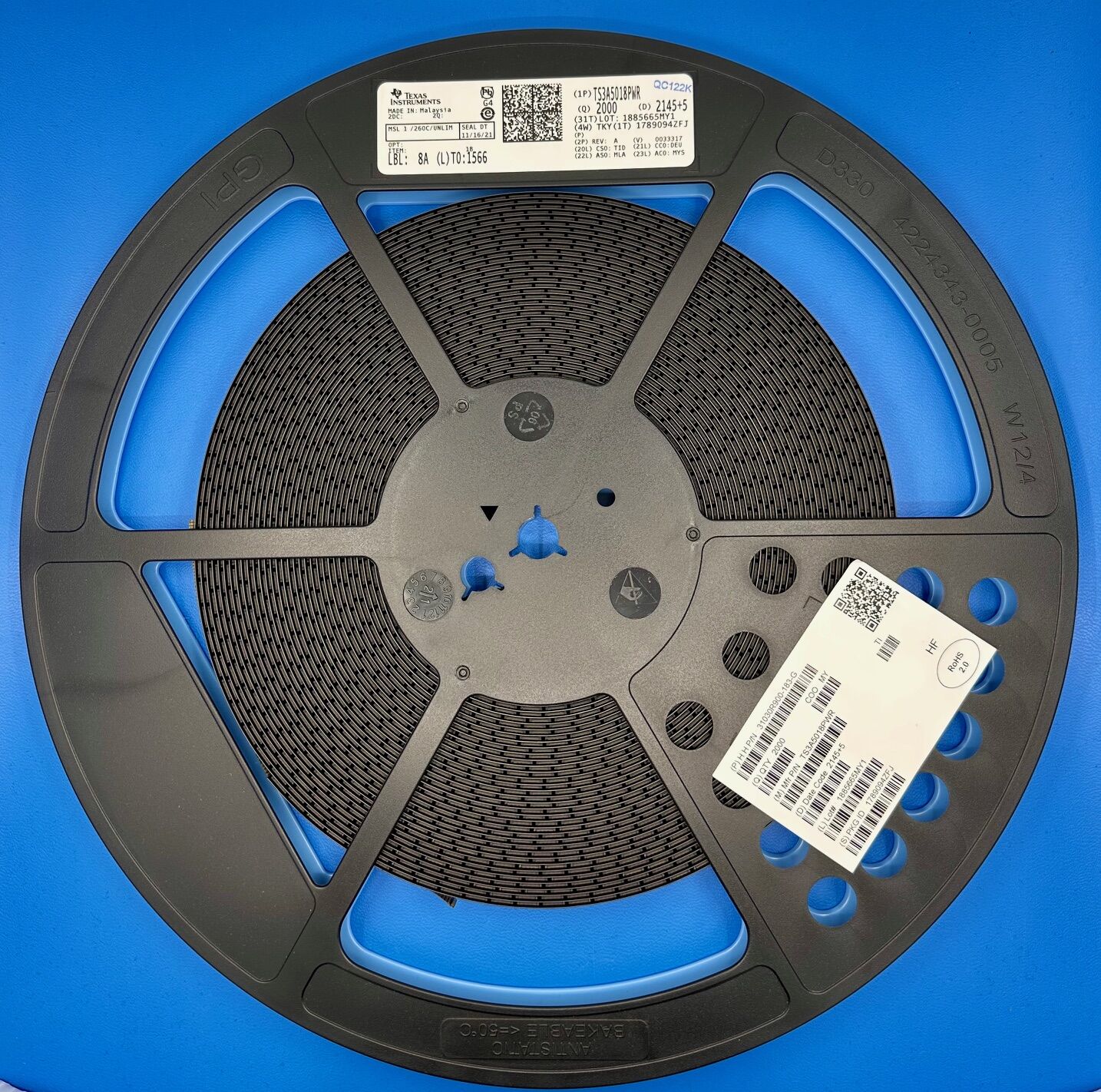

Cyndtek® sells the TS3A5018PWR exclusively by complete factory reel. Each reel contains 2,000 pieces. This packaging supports automated assembly, production manufacturing, and component handling requirements.
Cyndtek® supplies semiconductors, electronic components, and hard-to-find parts for OEM, repair, test, and production applications. To request pricing or availability for TS3A5018PWR, visit our Cyndtek shop or contact sales@cyndtek.com with your quantity, target price, and required delivery schedule.
