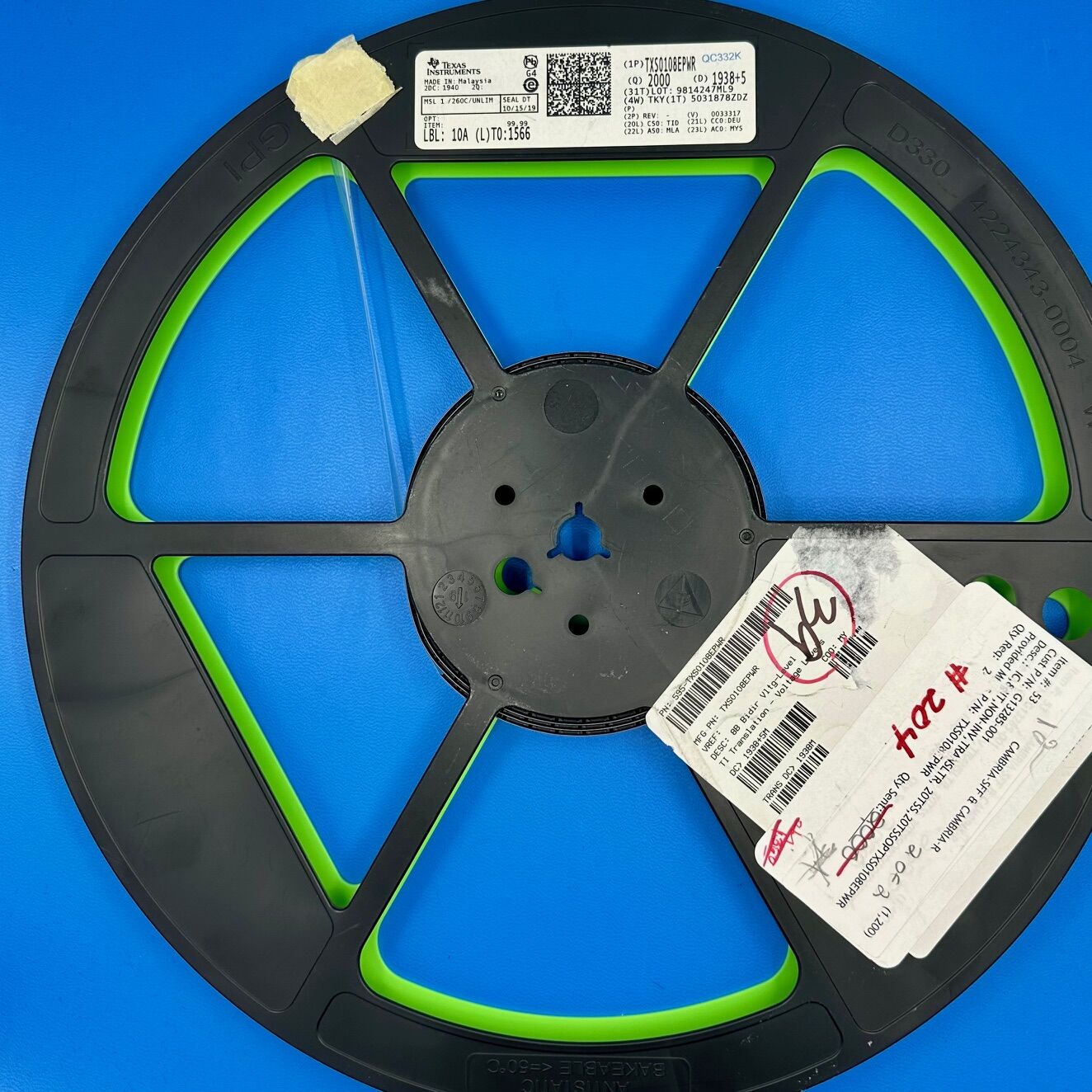

TXS0108EPWR Specifications
Manufacturer: Texas Instruments
Part Type: Voltage-Level Translator
Number of Channels: 8
Directionality: Bi-directional (Auto-Sensing)
Voltage Range (VCCA): 1.2 V to 3.6 V
Voltage Range (VCCB): 1.65 V to 5.5 V
Data Rate: Up to 110 Mbps (push-pull), 2 Mbps (open-drain)
Control Pin: OE (Output Enable, active high)
Input Type: CMOS
Output Type: Push-Pull/Open-Drain Compatible
Package Type: TSSOP-20
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
Propagation Delay: ~6 ns (typical)
Power Supply Type: Dual-Supply
RoHS Compliant: Yes
Key Features
The TXS0108EPWR is a versatile 8-bit bi-directional level shifter designed to bridge communication between ICs operating at different logic levels. It supports voltage translation between two separate power rails and automatically senses signal direction without the need for external control logic. With wide voltage compatibility and fast switching speeds, this translator enables seamless data exchange in complex digital systems. Additionally, its OE pin offers shutdown control, while the small TSSOP-20 package helps conserve PCB space in tight designs.
Applications
SDIO interface level shifting
Mobile phone and tablet platforms
Camera module integration
Mixed-voltage microcontroller designs
Sensor interface bridges
Portable medical devices
Communication protocol converters
FPGA-to-peripheral interfacing
Consumer electronics with multi-voltage buses
Embedded systems requiring logic-level conversion
Product Overview
The TXS0108EPWR simplifies voltage interfacing in mixed-signal systems with auto-sensing, bi-directional operation across eight channels. Supporting both open-drain and push-pull signaling, it accommodates a wide range of applications with data rates up to 110 Mbps. The flexible voltage range allows it to work across many host and peripheral combinations, making it a universal solution for modern embedded designs. Compact and energy-efficient, this level shifter ensures safe and reliable communication in systems requiring multi-voltage compatibility and fast logic transitions.
