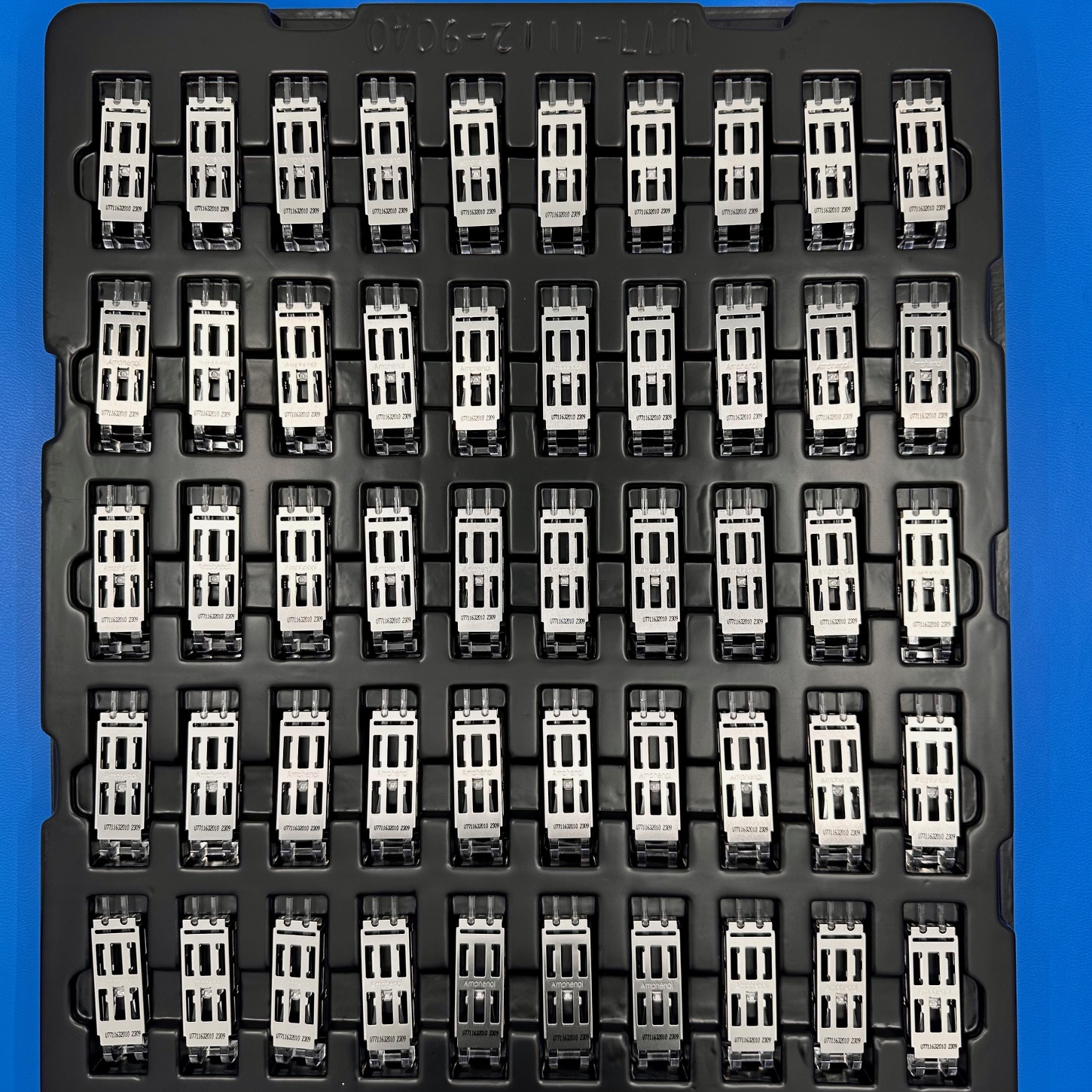

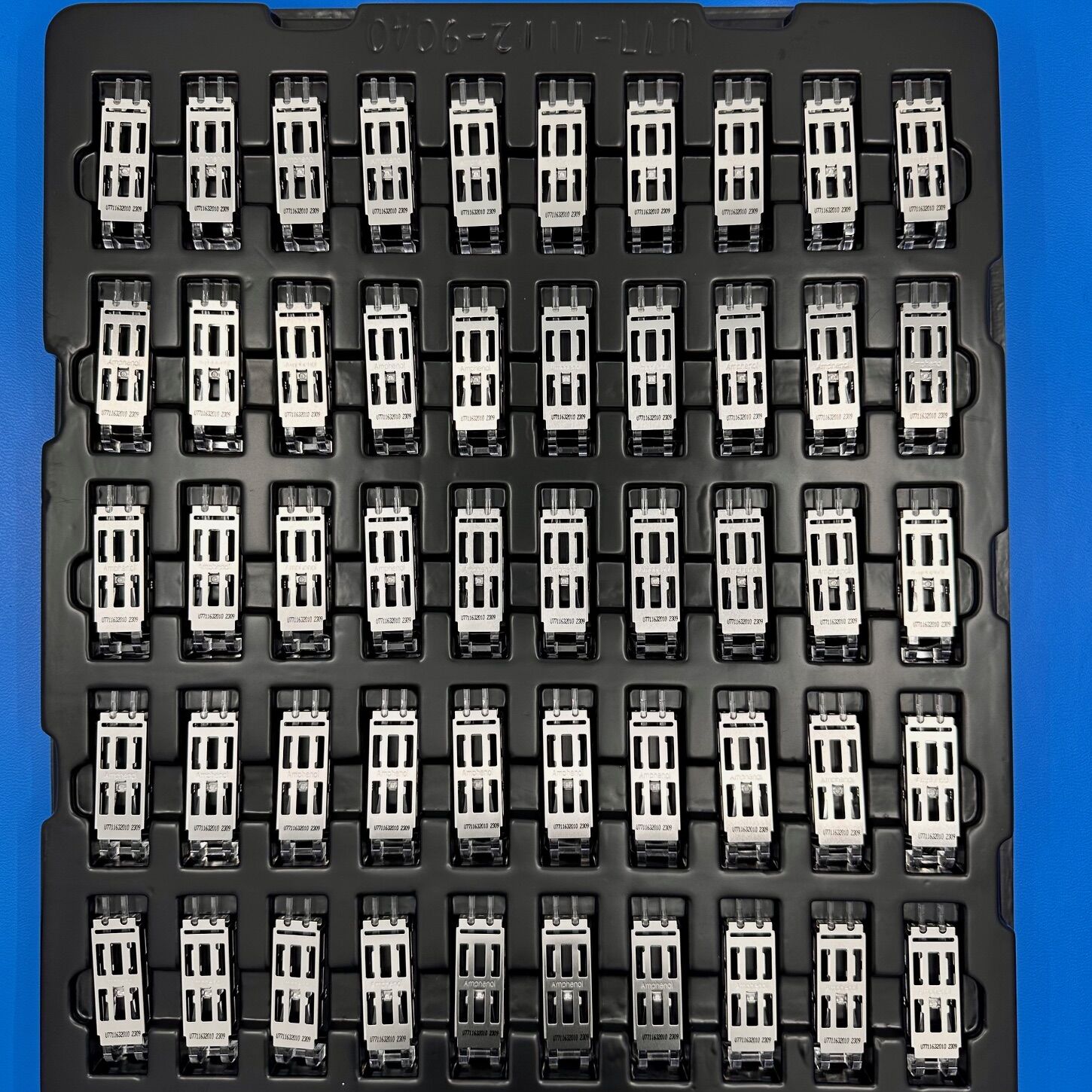

U77-1163-2010P Specifications
Manufacturer: Amphenol Commercial Products
Part Number: U77-1163-2010P
Product Type: SFP+ Cage Assembly
Mounting Type: Press-Fit Through Hole
Number of Ports: 1
Orientation: Right Angle
Data Rate Support: Up to 28 Gb/s
Shell Material: Copper Alloy
Plating Finish: Nickel with Tin and Gold on contacts
Grounding Tabs: Integrated
Cage Type: EMI Spring Tabs with Lightpipe Support
Insertion Life: 100 Mating Cycles Minimum
Operating Temperature Range: -40°C to +85°C
Flammability Rating: UL 94V-0
Connector Style: SFP+
RoHS Status: RoHS Compliant
Key Features
The U77-1163-2010P from Amphenol is a single-port SFP+ cage assembly engineered for next-generation data applications. With support for up to 28 Gb/s data rates, it provides high-speed connectivity for dense networking hardware. Its robust press-fit design eliminates the need for soldering, allowing for secure mechanical attachment and reliable signal integrity. Constructed with high-grade copper alloy and protective plating, this cage offers strong EMI shielding and long-term reliability. The right-angle orientation and integrated spring tabs make it ideal for use in compact, high-density systems that demand performance without compromising space.
Applications
High-throughput network interface cards and switch modules
Edge routers and aggregation layer telecom systems
Server boards in hyperscale data center racks
Storage appliances that rely on SFP+ link reliability
Broadcast and video-over-IP systems requiring precise signal handling
Product Overview
The U77-1163-2010P is a precision-engineered SFP+ cage assembly that combines EMI shielding, thermal robustness, and signal fidelity in one compact footprint. Designed by Amphenol for demanding environments, it ensures consistent high-speed data transmission through its 28 Gb/s support. The press-fit pins enable reliable, solder-free PCB attachment, saving both time and cost during assembly. Its durable construction and compliant materials make it ideal for use in next-generation network infrastructure and computing platforms. Additionally, its lightpipe-ready configuration supports system-level diagnostics and status indication for advanced systems.
