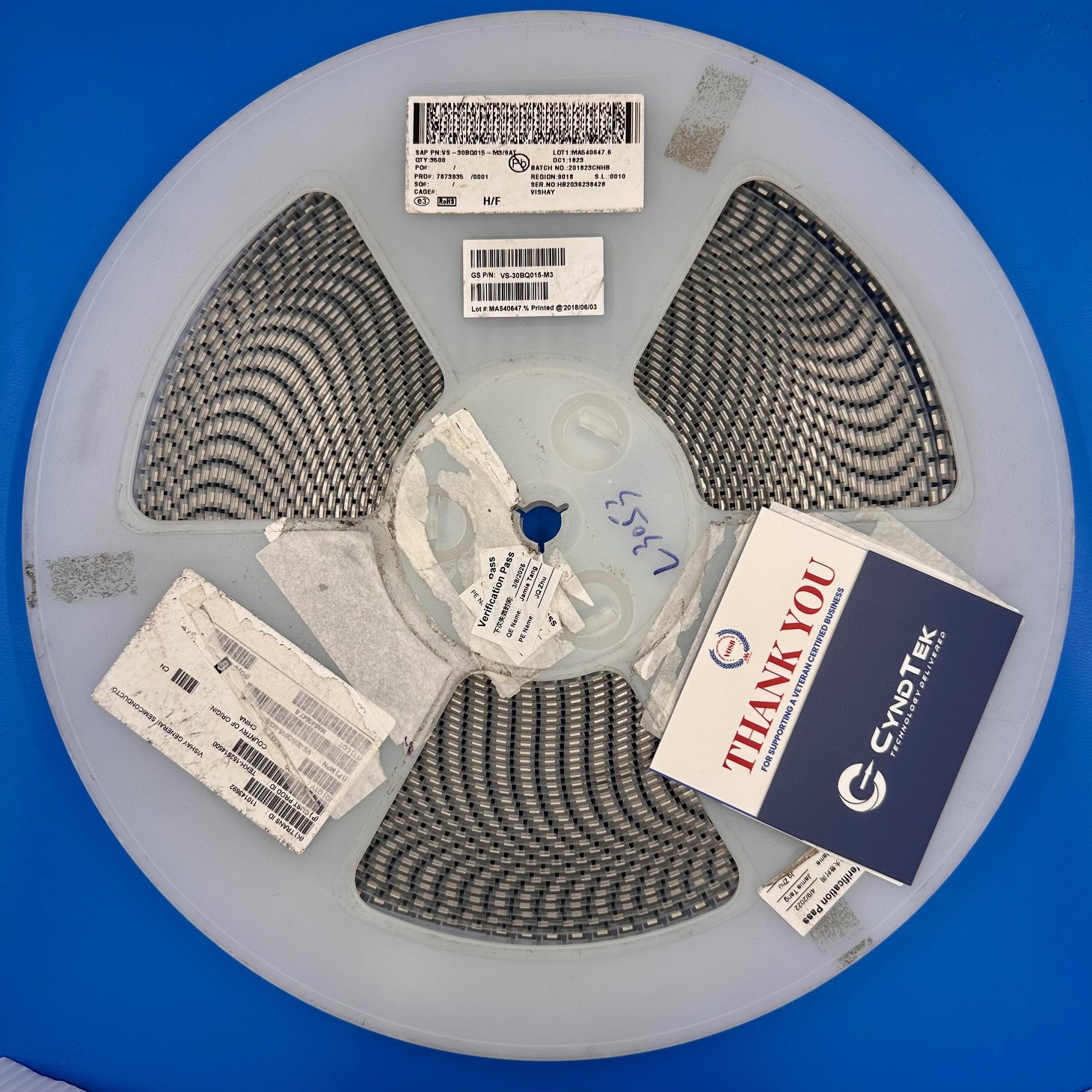

VS-30BQ015-M3/9AT Specifications
Manufacturer: Vishay Semiconductors
Part Number: VS-30BQ015-M3/9AT
Product Type: Schottky Rectifier
Maximum Repetitive Reverse Voltage (VRRM): 15 V
Average Forward Current (IF(AV)): 3.0 A
Forward Voltage Drop (VF): 0.35 V at 3 A
Peak Surge Forward Current (IFSM): 650 A (5 µs pulse)
Reverse Current (IR): 4 mA at 15 V, 25°C
Junction Capacitance (CT): 1120 pF at 5 V
Package / Case: DO-214AB (SMC)
Mounting Type: Surface Mount
Operating Junction Temperature Range: -55°C to +125°C
RoHS Status: RoHS Compliant
Key Features
The VS-30BQ015-M3/9AT is a high-performance Schottky rectifier designed for applications requiring low forward voltage drop and efficient operation. With a maximum repetitive reverse voltage of 15 V and an average forward current capability of 3.0 A, it is suitable for various power management applications. The device exhibits a forward voltage drop of 0.35 V at 3 A, ensuring minimal power loss during operation. Its peak surge forward current rating of 650 A (5 µs pulse) allows it to handle transient conditions effectively. The rectifier’s low reverse leakage current of 4 mA at 15 V and 25°C contributes to its efficiency and reliability. Packaged in the DO-214AB (SMC) case, it supports surface-mount installation, facilitating compact and efficient PCB layouts. Operating reliably within a junction temperature range of -55°C to +125°C, the VS-30BQ015-M3/9AT maintains consistent performance across various environmental conditions. Compliance with RoHS standards underscores Vishay’s commitment to environmental responsibility.
Applications
Switching power supplies
Converters
Freewheeling diodes
Battery charging systems
Reverse battery protection
Product Overview
The VS-30BQ015-M3/9AT from Vishay Semiconductors is engineered to provide efficient rectification in power management systems. Its Schottky barrier technology ensures low forward voltage drop, resulting in reduced power dissipation and enhanced efficiency. The device’s ability to handle an average forward current of 3.0 A and withstand peak surge currents up to 650 A makes it suitable for applications involving high inrush currents. Its low reverse leakage current enhances performance in high-frequency applications. The compact DO-214AB (SMC) package supports surface-mount technology, optimizing space utilization on PCBs. Operating across a wide junction temperature range, the VS-30BQ015-M3/9AT delivers reliable performance in diverse environmental conditions, making it a versatile choice for designers seeking efficient and robust rectification solutions.
