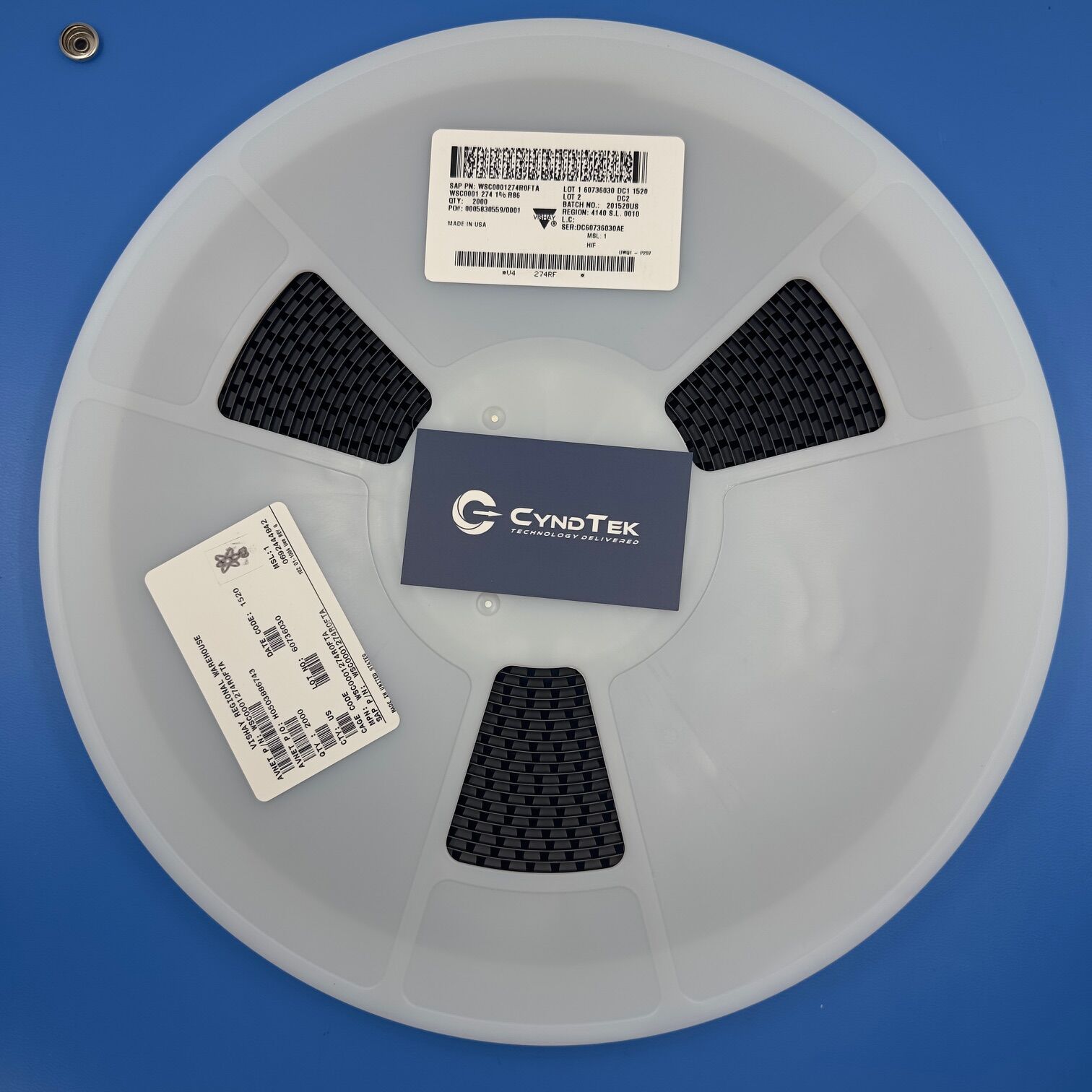

WSC0001274R0FBA Specifications
Manufacturer: Vishay
Part Number: WSC0001274R0FBA
Product Type: Power Resistor
Resistance Value: 274 Ohm
Tolerance: ±1%
Power Rating: 1 W
Resistor Type: Wirewound Current Sense Resistor
Technology: Precision Wirewound Construction
Package Type: Surface Mount Power Resistor
Mounting Type: Surface Mount
Temperature Coefficient: Low TCR Design
Operating Temperature Range: -55°C to +175°C
Applications Class: Power and Current Sensing
Packaging: Factory
Key Features
The WSC0001274R0FBA is a precision wirewound power resistor designed for high power and current sensing applications. It provides a resistance value of 274 ohms with a power rating of 1 watt. Additionally, the wirewound construction offers stable resistance and excellent temperature performance. Because precision power resistors must maintain accuracy under load conditions, engineers frequently use them in power regulation and measurement circuits. As a result, the WSC series supports dependable electrical performance in demanding electronic designs.
Applications
Current sensing circuits
Power supply regulation systems
Industrial control electronics
Motor control circuits
Instrumentation electronics
Power distribution modules
Embedded power management systems
High reliability electronic assemblies
Product Overview
The WSC0001274R0FBA from Vishay provides reliable power dissipation and stable resistance characteristics for electronic circuits. First, the wirewound resistor construction allows the component to handle higher power levels compared to many thin film resistor types.
Additionally, the precision resistance tolerance supports accurate current measurement and voltage drop monitoring. Because power electronics often require stable resistors for sensing and load balancing, wirewound power resistors remain widely used in industrial and instrumentation applications.
Moreover, the surface mount package allows compact circuit board integration while maintaining effective thermal performance. Engineers frequently select Vishay WSC series resistors for power supply circuits, motor control electronics, and embedded power regulation systems.
Therefore, the WSC0001274R0FBA remains a dependable component for current sensing, power regulation, and high reliability electronic applications.
Contact Us
Cyndtek supplies new, factory-packaged Vishay power resistors and electronic components for OEM manufacturing, repair operations, and procurement programs. Our inventory supports engineers, buyers, and procurement professionals sourcing reliable electronic components. For ordering details and current inventory availability, visit https://cyndtek.com/shop/.
For additional available stock, browse our full inventory.
