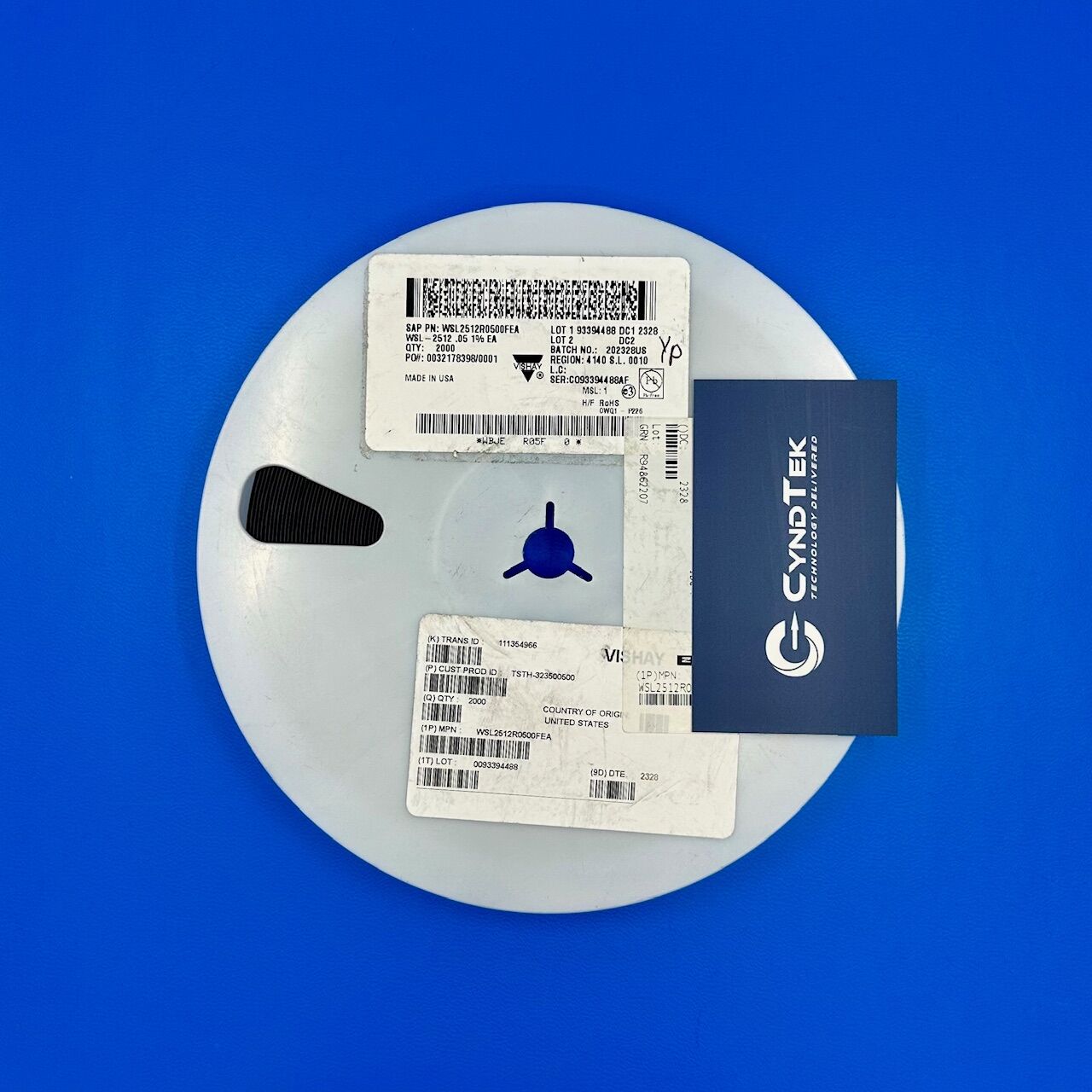

WSL2512R0500FEA

WSL2512R0500FEA Specifications

Manufacturer: Vishay Dale
Part Number: WSL2512R0500FEA
Product Type: Surface-Mount Current Sense Resistor
Series: WSL
Resistance: 50 mΩ
Tolerance: ±1%
Power Rating: 1 W
Temperature Coefficient: ±75 ppm/°C
Package / Case: 2512 (6432 Metric)
Operating Temperature Range: -65°C to +170°C
Resistor Material: Metal Strip
Features: Anti-Sulfur, AEC-Q200 Qualified, Moisture Resistant, Pulse Withstanding
Mounting Type: Surface Mount
Dimensions: 6.35 mm Length x 3.18 mm Width x 0.89 mm Height
RoHS Status: RoHS Compliant

Key Features

The WSL2512R0500FEA is a surface-mount current sense resistor from Vishay Dale’s WSL series, designed for applications requiring precise current measurement and control. With a low resistance value of 50 mΩ and a ±1% tolerance, it ensures accurate current sensing with minimal power loss. The resistor’s metal strip construction provides excellent durability and stability. Allowing its power rating of 1 W to handle significant current levels. The ±75 ppm/°C temperature coefficient ensures consistent performance across a wide operating temperature range of -65°C to +170°C. Additionally, the resistor features anti-sulfur properties, is AEC-Q200 qualified for automotive applications, and exhibits moisture resistance and pulse withstanding capabilities, making it suitable for use in challenging environments.

Applications

Automotive electronic systems requiring precise current sensing
Power management applications in industrial equipment
Battery management systems for accurate charge and discharge monitoring
DC-DC converters needing efficient current measurement
Consumer electronics where space-saving, surface-mount components are essential

Product Overview

Vishay Dale’s WSL2512R0500FEA current sense resistor offers a reliable solution for accurate current measurement in various electronic applications. Its low resistance value minimizes power loss, enhancing overall system efficiency. The robust metal strip construction and surface-mount design facilitate easy integration into compact circuit layouts. Operating effectively across a broad temperature range, this resistor maintains stability and performance. Its compliance with AEC-Q200 standards and RoHS directives underscores its suitability for automotive and environmentally conscious applications. Overall, the WSL2512R0500FEA combines precision, durability, and versatility, making it a valuable component in modern electronic designs.
