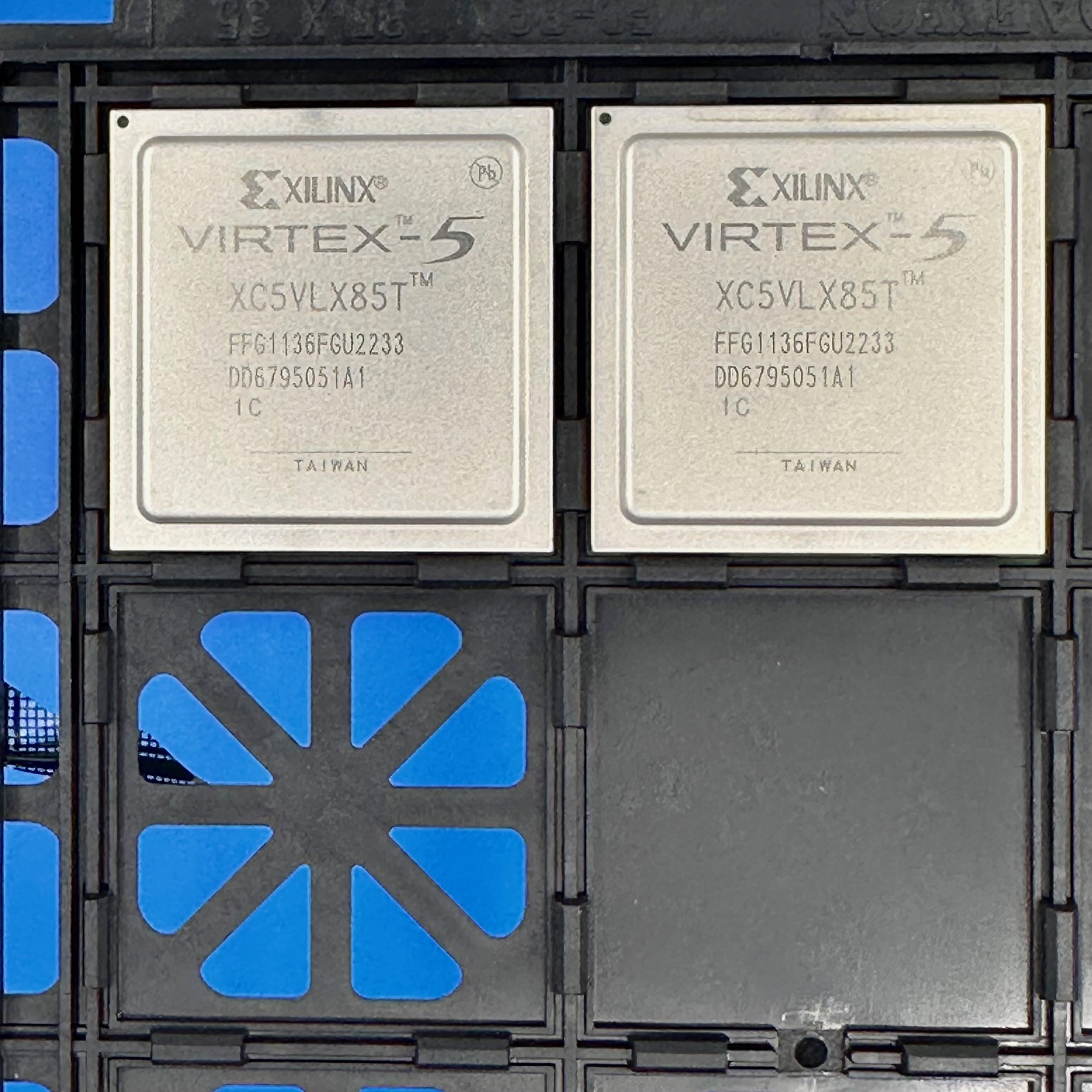

XC5VLX85T-1FFG1136C

XC5VLX85T-1FFG1136C Specifications

Manufacturer: Xilinx
Part Number: XC5VLX85T-1FFG1136C
Product Type: FPGA (Field Programmable Gate Array)
Family: Virtex-5 LXT
Logic Cells: 82,944
RAM Bits: 3,981,312
DSP Slices: 48
Transceivers: 16
I/O Pins: 480
Package / Case: 1136-Ball FCBGA
Speed Grade: -1
Core Voltage: 1.0V
Operating Temperature Range: 0°C to +85°C
Mounting Type: Surface Mount
RoHS Status: RoHS Compliant

Key Features

The XC5VLX85T-1FFG1136C is a high-performance FPGA from the Virtex-5 LXT family by Xilinx. It features 82,944 logic cells and 48 DSP slices, which support advanced signal processing and logic-intensive tasks. The device includes 16 high-speed serial transceivers, offering seamless integration with multi-gigabit communication standards. It operates at a 1.0V core voltage, enabling energy-efficient performance. Its compact 1136-ball FCBGA package improves thermal performance and supports dense PCB layouts. Furthermore, this device is ideal for systems requiring a balance of high bandwidth, logic density, and DSP power.

Applications

Real-time processing in MRI and CT imaging systems
Sensor integration and object tracking in automotive driver-assist modules
Motion control and machine coordination in robotic automation platforms
Flight control systems and avionics data processing in aerospace electronics
Data stream acceleration and predictive analytics in high-frequency trading systems

Product Overview

The XC5VLX85T-1FFG1136C from Xilinx delivers scalable performance for compute-heavy, latency-sensitive applications. It supports a wide range of protocols through its 16 integrated serial transceivers. In addition, its high logic density and large RAM capacity make it suitable for applications where parallel processing and bandwidth are critical. Designers benefit from its flexible architecture, which simplifies development while enabling precise control. Moreover, the FPGA’s packaging and thermal efficiency support integration into compact, high-performance hardware. This device excels in environments where precision, speed, and reliability must align seamlessly.
