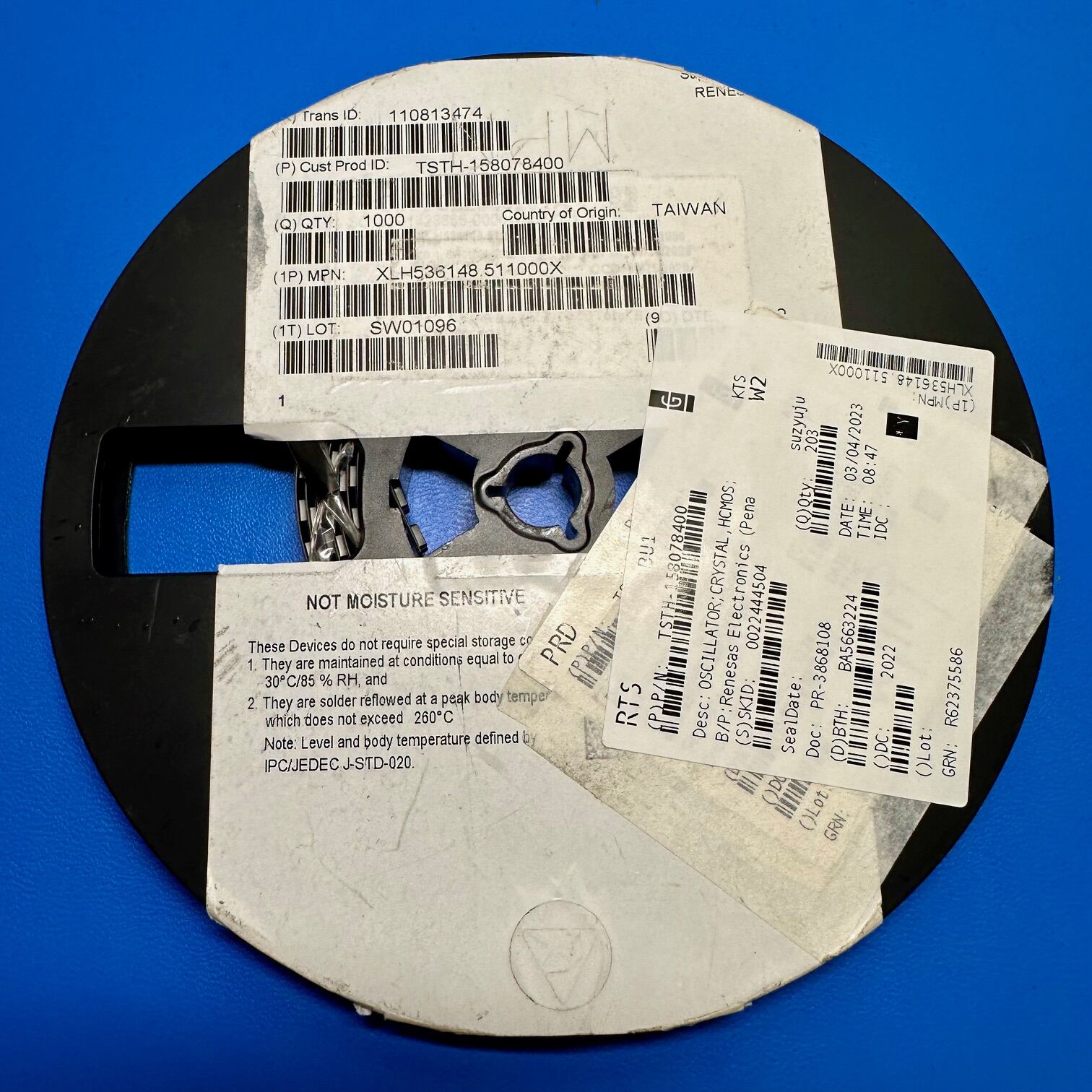

XLH536148.511000X – Specifications
Manufacturer: Integrated Device Technology (IDT) / Renesas
Part Number: XLH536148.511000X
Product Type: Oscillator
Frequency: 48.511 MHz
Supply Voltage: 3.3V
Output Type: HCMOS
Stability: ±50 ppm
Operating Temperature Range: -40°C to +85°C
Package / Case: 5.0mm x 3.2mm SMD
Mounting Type: Surface Mount
Current Consumption: 25 mA (typical)
Duty Cycle: 45% to 55%
Startup Time: 5 ms (typical)
RoHS Status: RoHS Compliant
Key Features
The XLH536148.511000X is a high-performance surface-mount oscillator that delivers a stable 48.511 MHz output with HCMOS logic compatibility. Operating at 3.3V with a tight stability of ±50 ppm, this oscillator ensures consistent performance in demanding environments. Its compact 5.0mm x 3.2mm SMD package enables efficient use of board space in modern electronic designs. The device offers quick startup time, low typical current consumption, and a broad operating temperature range of -40°C to +85°C, making it an ideal timing solution for a wide range of industrial and communications systems.
Applications
Industrial control and automation systems
Networking and telecommunications equipment
Consumer electronics and multimedia devices
Embedded systems and microcontroller-based applications
Test and measurement instruments
Medical and diagnostic devices
Product Overview
The XLH536148.511000X oscillator from IDT (Renesas) offers a dependable and compact timing solution suited for applications requiring precise frequency control. Delivering a stable 48.511 MHz output with HCMOS logic levels, this oscillator features tight frequency stability of ±50 ppm across a wide industrial temperature range. This product is designed for 3.3V systems. Additionally, it supports fast startup and maintains low power operation with a typical current draw of only 25 mA. Its small form factor 5.0mm x 3.2mm package makes it ideal for space-constrained designs. Whether deployed in industrial controls, communication devices, or consumer electronics, the XLH536148.511000X provides a balance of accuracy, efficiency, and durability.
