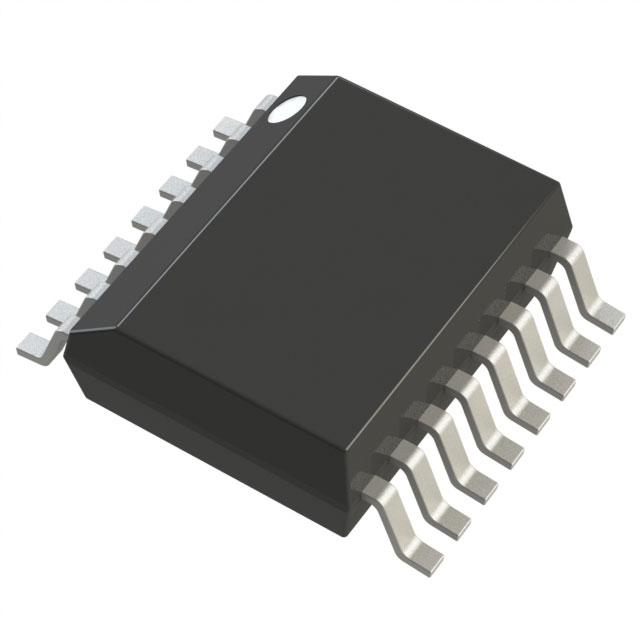

MAX4566CEE+T Specifications

Product Type: RF/Video Switch
Configuration: 2 x SPST (Single-Pole, Single-Throw)
On Resistance (Max): 60 Ω
Bandwidth: 350 MHz
On Time (Max): 150 ns
Off Time (Max): 100 ns
Operating Supply Voltage: 2.7V to 12V
Dual Supply Voltage: ±2.7V to ±6V
Supply Current (Max): 10 µA
Switch Continuous Current: 25 mA
Switch Voltage (Max): 5.5V
Off Isolation (Typical): -82 dB
Power Dissipation: 667 mW
Operating Temperature Range: 0°C to +70°C
Mounting Style: SMD/SMT
Package / Case: QSOP-16
Dimensions:
- Height: 1.55 mm (Max)
- Length: 4.98 mm (Max)
- Width: 3.99 mm (Max)
Packaging: Tube
Manufacturer: Analog Devices / Maxim Integrated
Series: MAX4566
Subcategory: Switch ICs

Product Overview

The MAX4566CEE+T is a low-voltage RF/video switch designed for seamless switching of RF and video signals across a DC to 350 MHz spectrum in 50Ω and 75Ω systems. It features two dual SPST switches, with one normally open and one normally closed.

Key Features:

Superior Signal Isolation & Crosstalk: Provides exceptional off isolation (-82 dB) and low crosstalk (-83 dB at 10 MHz) for high-fidelity signal transmission.
Flat & Matched On-Resistance: Maintains a consistent on-resistance (60Ω max) with a flat variation of only 2Ω max, ensuring minimal signal distortion.
Low Leakage Current: Less than 5 nA at 25°C and 50 nA at 85°C, making it ideal for sensitive signal applications.
Flexible Power Supply: Operates with a single supply (2.7V to 12V) or dual supply (±2.7V to ±6V) for versatile integration.
Rail-to-Rail Analog Signal Handling: Supports bidirectional signal flow, ensuring compatibility with various system architectures.
TTL & CMOS Logic Compatibility: Digital inputs with 0.8V/2.4V logic thresholds allow seamless interfacing with standard logic families.

Applications:

RF Switching
Video Signal Routing
High-Speed Data Acquisition
Test Equipment & Automated Test Equipment (ATE)
Networking Systems
