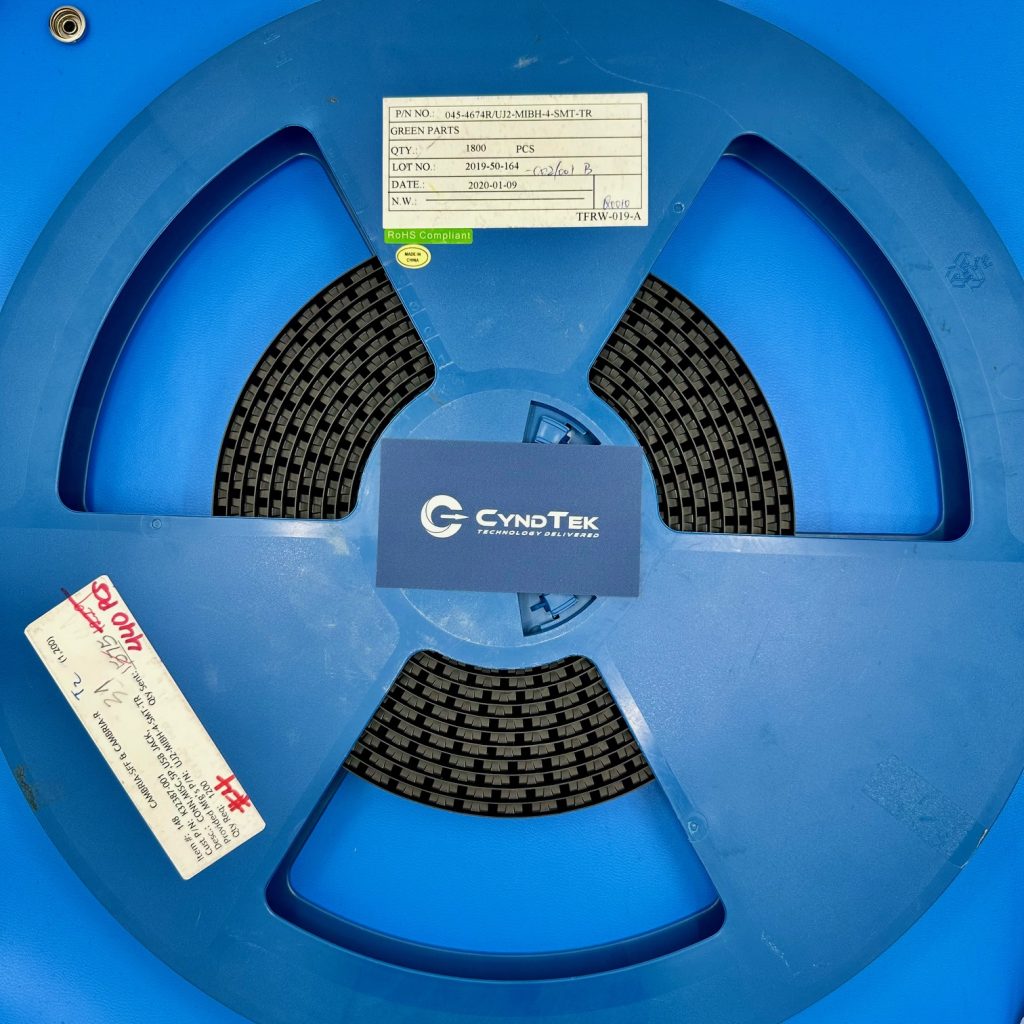

UJ2-MIBH-4-SMT-TR Specifications

Manufacturer: Same Sky (formerly CUI Devices)
Part Number: UJ2-MIBH-4-SMT-TR
Product Type: USB 2.0 Micro-B Receptacle
Number of Positions: 5
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Contact Material: Copper Alloy
Plating Contact – Mating: Gold
Contact Plating – Termination: Tin
Insulation Material: Thermoplastic
Color – Resin: Black
Current Rating (Amps): 1.8A
Voltage Rating: 30V AC
Operating Temperature Range: -25°C to +85°C
Durability (mating cycles max): 10,000
Shielding: Shielded
Flammability Rating: UL94 V-0
Compliance: RoHS Compliant

Key Features

The UJ2-MIBH-4-SMT-TR is a USB 2.0 Micro-B receptacle designed for reliable high-speed data transmission up to 480 Mbps. Its right-angle, surface-mount configuration allows for efficient PCB layout in compact devices. The connector’s robust construction supports up to 10,000 mating cycles, ensuring durability in applications requiring frequent connections. Gold-plated copper alloy contacts provide excellent conductivity and resistance to wear, while the black thermoplastic housing meets UL94 V-0 flammability standards, ensuring safety and compliance. Additionally, the connector’s shielding enhances signal integrity by minimizing electromagnetic interference.

Applications

Smartphones and tablets requiring reliable USB connectivity
Portable media players supporting high-speed data transfer
Digital cameras and camcorders with USB interfaces
External storage devices such as portable hard drives and flash drives
GPS devices and other handheld electronics needing compact USB ports

Product Overview

The UJ2-MIBH-4-SMT-TR USB 2.0 Micro-B receptacle from Same Sky offers a compact and durable solution for devices requiring high-speed data connectivity. Its right-angle, surface-mount design facilitates efficient use of PCB space, making it ideal for compact electronic devices. The connector’s gold-plated contacts ensure reliable signal transmission and longevity, supporting up to 10,000 mating cycles. With a current rating of 1.8A and voltage rating of 30V AC, it accommodates various power requirements. The black thermoplastic housing complies with UL94 V-0 flammability standards, providing enhanced safety. Shielding is incorporated to reduce electromagnetic interference, ensuring signal integrity in sensitive applications. Operating effectively within a temperature range of -25°C to +85°C, this connector is suitable for a wide array of consumer electronics, including smartphones, tablets, digital cameras, and portable storage devices.
