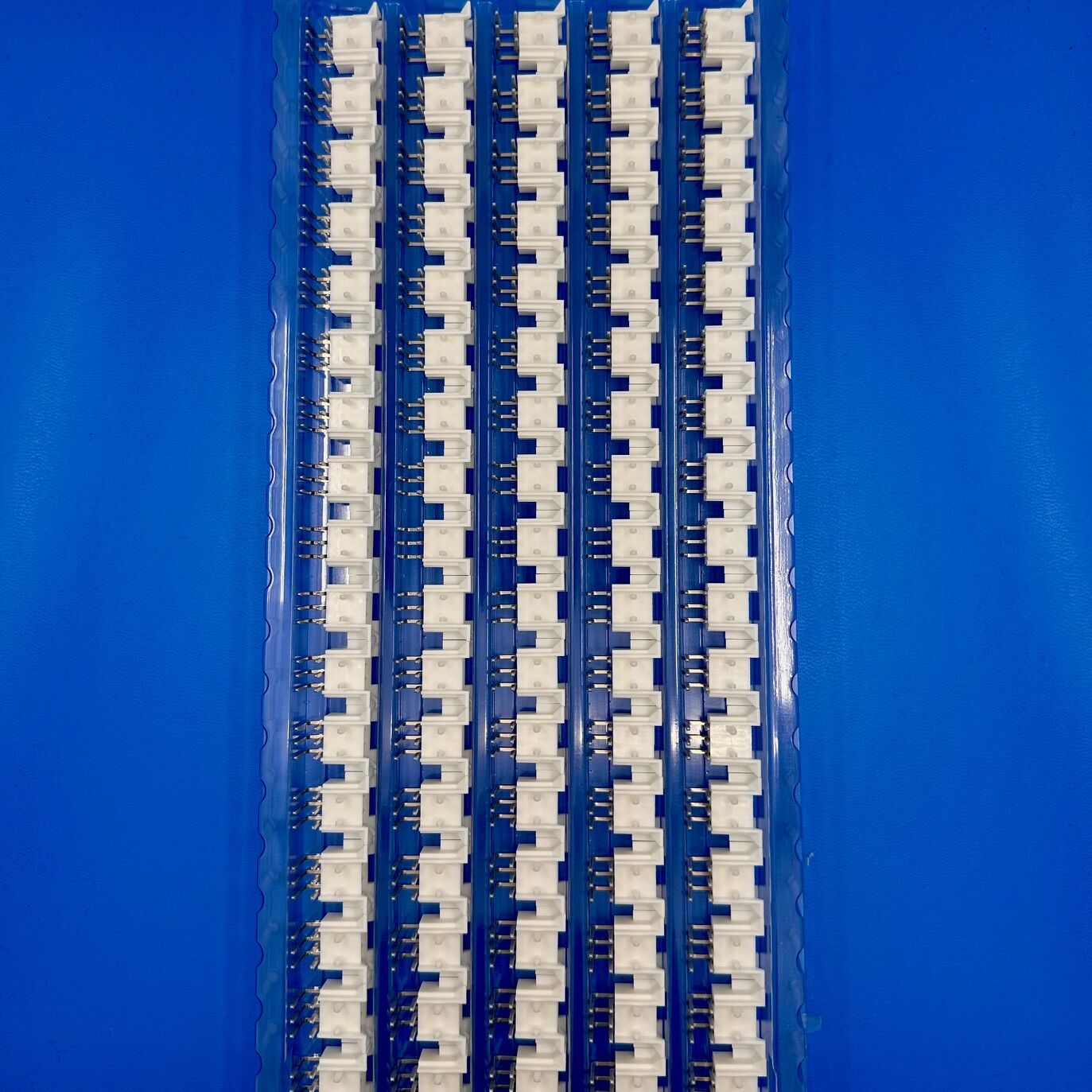

15246063

15246063 Specifications

Manufacturer: Molex
Part Number: 15246063
Product Type: Mini-Fit BMI Header
Series: 42404
Mounting Type: Through Hole
Orientation: Right Angle
Number of Positions: 6
Pitch: 4.20mm (0.165 inches)
Row Spacing: 4.20mm (0.165 inches)
Contact Material: Brass
Contact Plating: Gold (0.762µm) on mating area, Tin on solder tail
Housing Material: Nylon, UL 94V-0, Natural (White)
Current Rating: 13A per contact
Voltage Rating: 600V
Operating Temperature Range: -40°C to +105°C
Flammability Rating: UL 94V-0
Durability: Up to 30 mating cycles
PCB Thickness Compatibility: 1.80mm
Recommended Mounting Hardware: Molex P/N 71781-0001, 82007-0300, or 88780-6066

Key Features

• Secure right-angle connection with snap-in PCB lock for enhanced retention.
• High current rating of 13A per contact, suitable for power applications.
• Gold-plated contacts ensure reliable electrical connections and minimize contact resistance.
• Durable nylon housing with UL 94V-0 rating ensures resistance to high temperatures and flammability.
• Compatible with 1.80mm thick PCBs, ideal for various board designs.

Applications

• Power connections in consumer electronics.
• Industrial equipment requiring robust power headers.
• Automotive applications demanding secure and high-current connections.
• Networking hardware needing reliable power interfaces.
• Audio-visual equipment requiring durable and secure header connections.

Product Overview

The Molex 15246063 Mini-Fit BMI Header is a right-angle, dual-row connector with 6 positions, designed for through-hole mounting on PCBs. It features a snap-in plastic peg PCB lock for secure attachment and is constructed from natural (white) nylon with a UL 94V-0 flammability rating. The header is compatible with Mini-Fit BMI receptacles and is ideal for applications requiring secure, high-current power connections.
