2309411-5

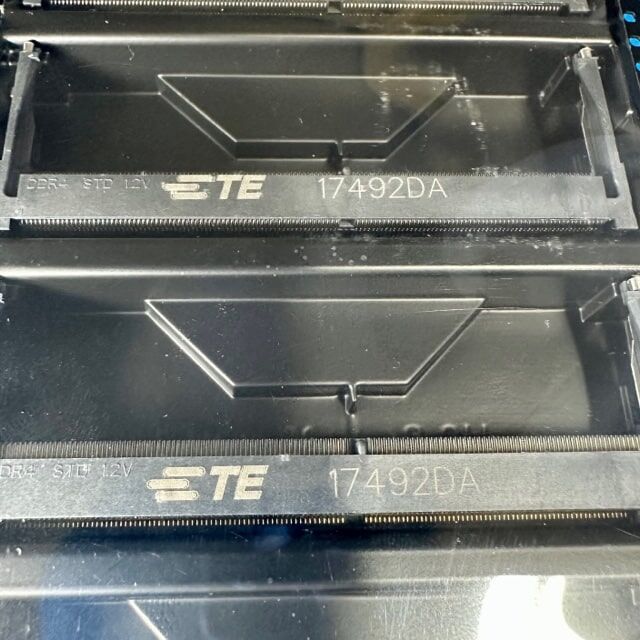

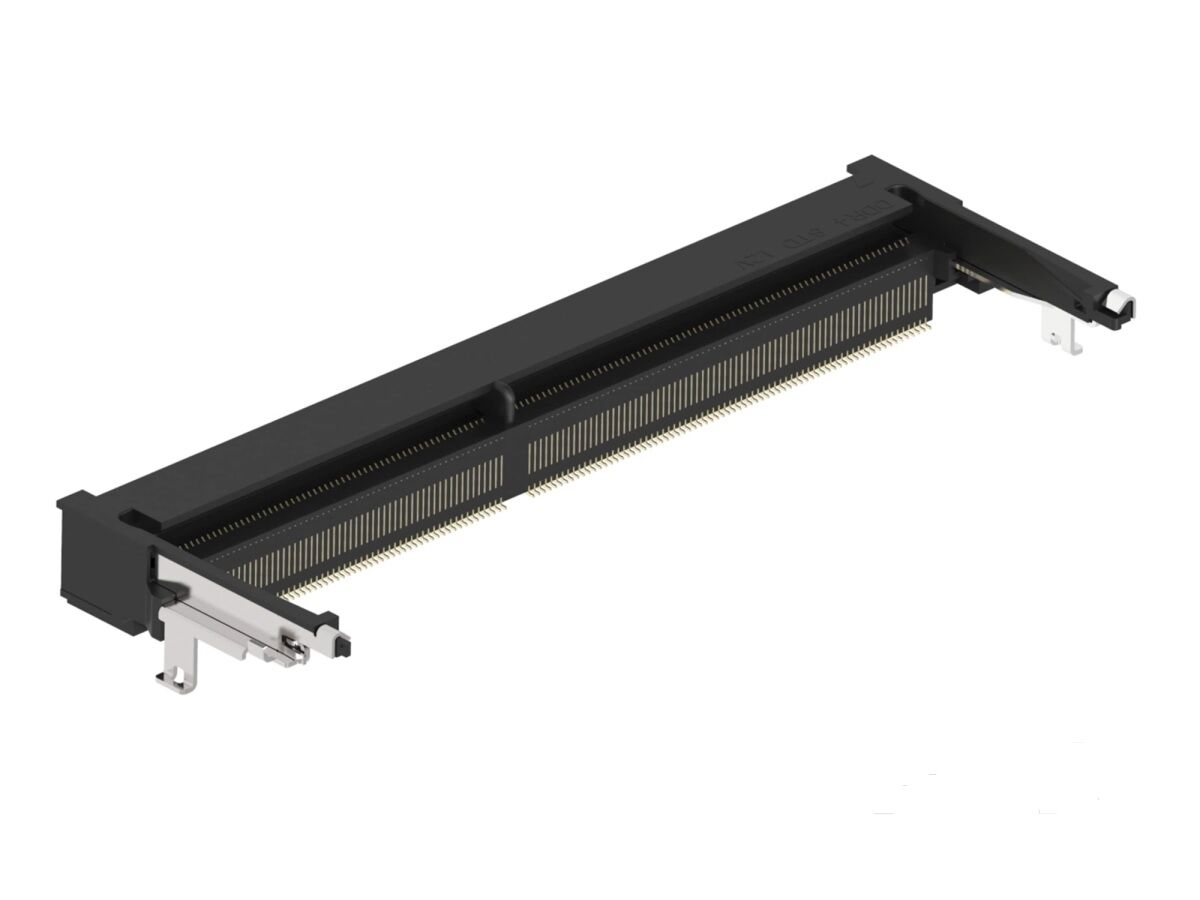

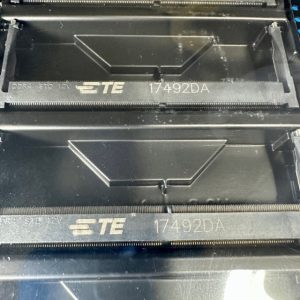

2309411-5 Specifications:

• Application Specification: DDR4 SODIMM 260P 0.50mm Pitch Socket
• DRAM Type: Small Outline (SO)
• Connector System: Cable-to-Board
• Profile: High
• Row-to-Row Spacing: 8.2 mm [ .322 in ]
• Sealable: No
• Connector & Contact: Terminates To Printed Circuit Board, Center Post Without
• Product Type: Socket
• Module Orientation: Right Angle
• Number of Positions: 260
• Number of Rows: 2
• Keying Standard: 1, Center Key Offset Left
• DRAM Voltage (V): 1.2
• SGRAM Voltage (V): 1.2
• Ejector Type: Locking
• Module Key Type: Offset Left
• Retention Post Location: Both Ends
• Latch Material: High Temperature Thermoplastic
• Ejector Location: Both Ends
• Retention Post Material: Stainless Steel
• Contact Features: Solder Tail Contact Plating Material: Gold Flash over Nickel, Contact Mating Area Plating Material: Gold, Plating Thickness: .76 µm [ 30 µin ], Max Current Rating: 0.5A, Contact Base Material: Copper Alloy
• Socket Type: Memory Card
• Socket Style: SO DIMM
• Insertion Style: Cam-In
• PCB Mounting Style: Surface Mount
• Connector Mounting Type: Board Mount, PCB Mount Retention: With, Retention Type: Solder Peg
• Centerline (Pitch): 0.5 mm [ .0197 in ]
• Housing Material: High Temperature Thermoplastic
• Housing Color: Black
• Stack Height: 8 mm [ .315 in ]
• Operating Temperature Range: -55 – 85 °C [ -67 – 185 °F ]
• Circuit Application: Power
• UL Flammability Rating: UL 94V-0

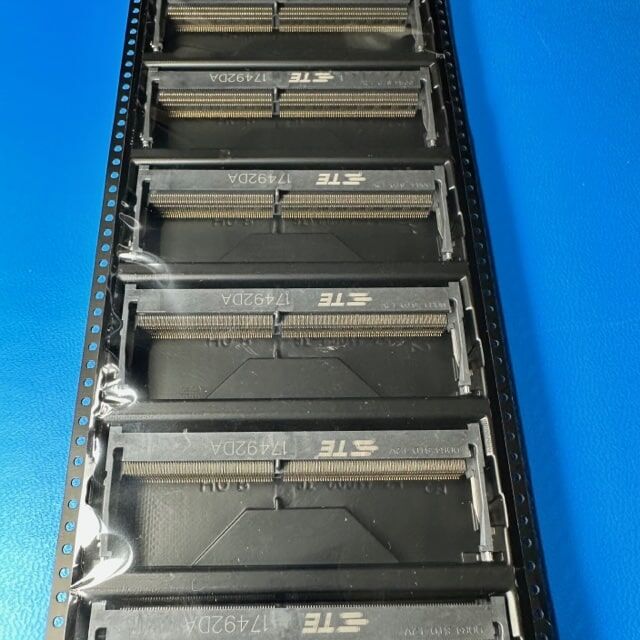

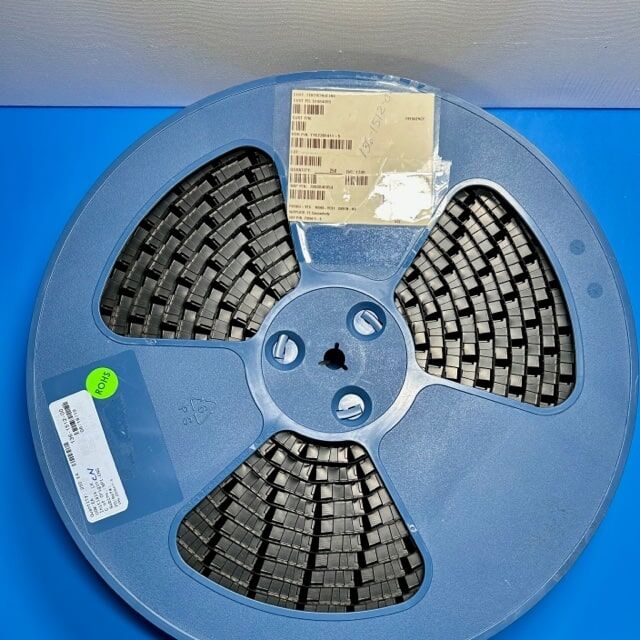

• Packaging Method: Tape & Reel

Additional information:

2309411-5 specifications outline a high-performance DDR4 SODIMM 260P 0.50mm Pitch Socket, tailored for advanced memory applications. This socket boasts a compact small outline (SO) design, incorporating a cable-to-board connector system and a high-profile configuration. It provides a comfortable row-to-row spacing of 8.2 mm, ensuring efficient connectivity. Notably, the socket is not sealable and terminates directly to a printed circuit board, omitting the need for a central post. Structured as a right-angle module with 260 positions distributed across 2 rows, it adheres to a specific keying standard for seamless compatibility. Operating at a reliable 1.2V for both DRAM and SGRAM, the socket is equipped with a secure locking ejector, an offset left module key type, and retention posts at both ends – all crafted from high-temperature thermoplastic for enhanced durability.

With a robust maximum current rating of 0.5A, 2309411-5 finds suitability in power circuit applications, backed by a UL Flammability Rating of 94V-0, ensuring safety and reliability. Encased in a sleek black housing, the socket features a stack height of 8 mm and can function flawlessly within a wide operating temperature range from -55 to 85°C. For added convenience, it is thoughtfully packaged using the tape & reel method, ensuring easy handling and installation.
