5745783-4

5745783-4 Specifications

Manufacturer: TE Connectivity
Part Number: 5745783-4
Product Type: D-Sub Receptacle Connector
Connector Type: Receptacle, Female Sockets
Number of Positions: 25
Number of Rows: 2
Shell Size: 3
Centerline (Pitch): 2.77 mm [0.109 in]
Mounting Type: Through Hole, Right Angle
Termination Style: Solder
Contact Material: Phosphor Bronze
Plating Contact – Mating Area: Gold
Contact Plating – Termination Area: Tin
Shell Material: Carbon Steel
Shell Plating: Tin
Housing Material: Thermoplastic
Flammability Rating: UL94 V-0
Operating Temperature Range: -55°C to +105°C
Current Rating: 6A per contact
Compliance: RoHS Compliant

Key Features

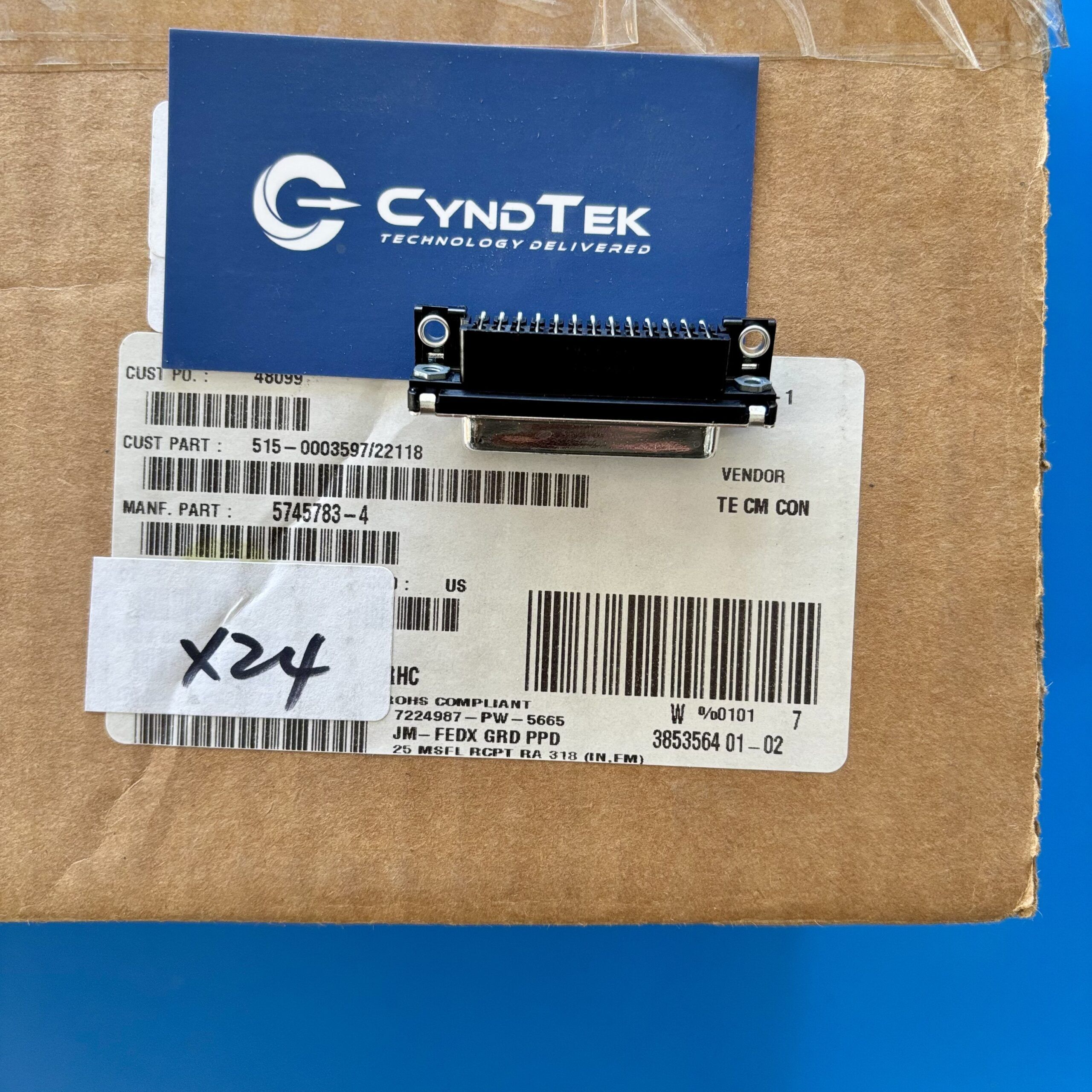

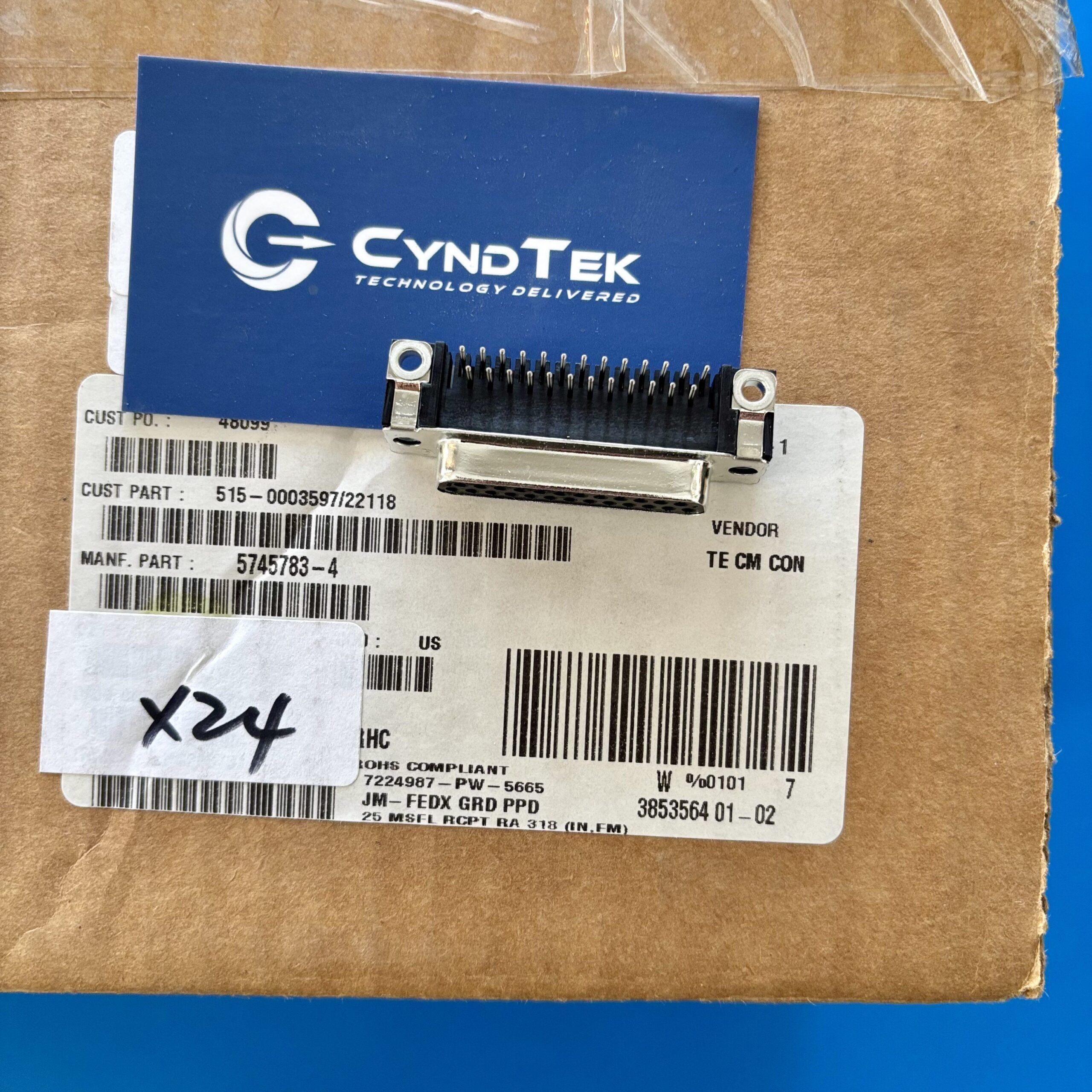

The 5745783-4 is a 25-position D-Sub receptacle connector designed for board-to-board signal applications. Its right-angle, through-hole configuration facilitates efficient PCB mounting and space utilization. The connector features gold-plated phosphor bronze contacts, ensuring reliable conductivity and resistance to corrosion. The tin-plated carbon steel shell provides robust mechanical protection and EMI shielding. Additionally, the thermoplastic housing meets UL94 V-0 flammability standards, enhancing safety in various operating environments.

Applications

Data communication interfaces requiring secure D-Sub connections
Industrial control systems utilizing standard signal transmissions
Computer peripherals needing reliable board-to-board connectivity
Instrumentation equipment with compact design constraints
Telecommunication devices employing multi-pin interconnects

Product Overview

The TE Connectivity 5745783-4 D-Sub receptacle connector offers a dependable solution for applications necessitating 25-pin signal connections. Its 2.77 mm pitch and right-angle orientation support compact PCB layouts, while the gold-plated contacts ensure consistent electrical performance. The connector’s tin-plated shell enhances durability and provides effective shielding against electromagnetic interference. Operating within a temperature range of -55°C to +105°C and rated for 6A per contact, this connector is suitable for demanding environments across various industries.
