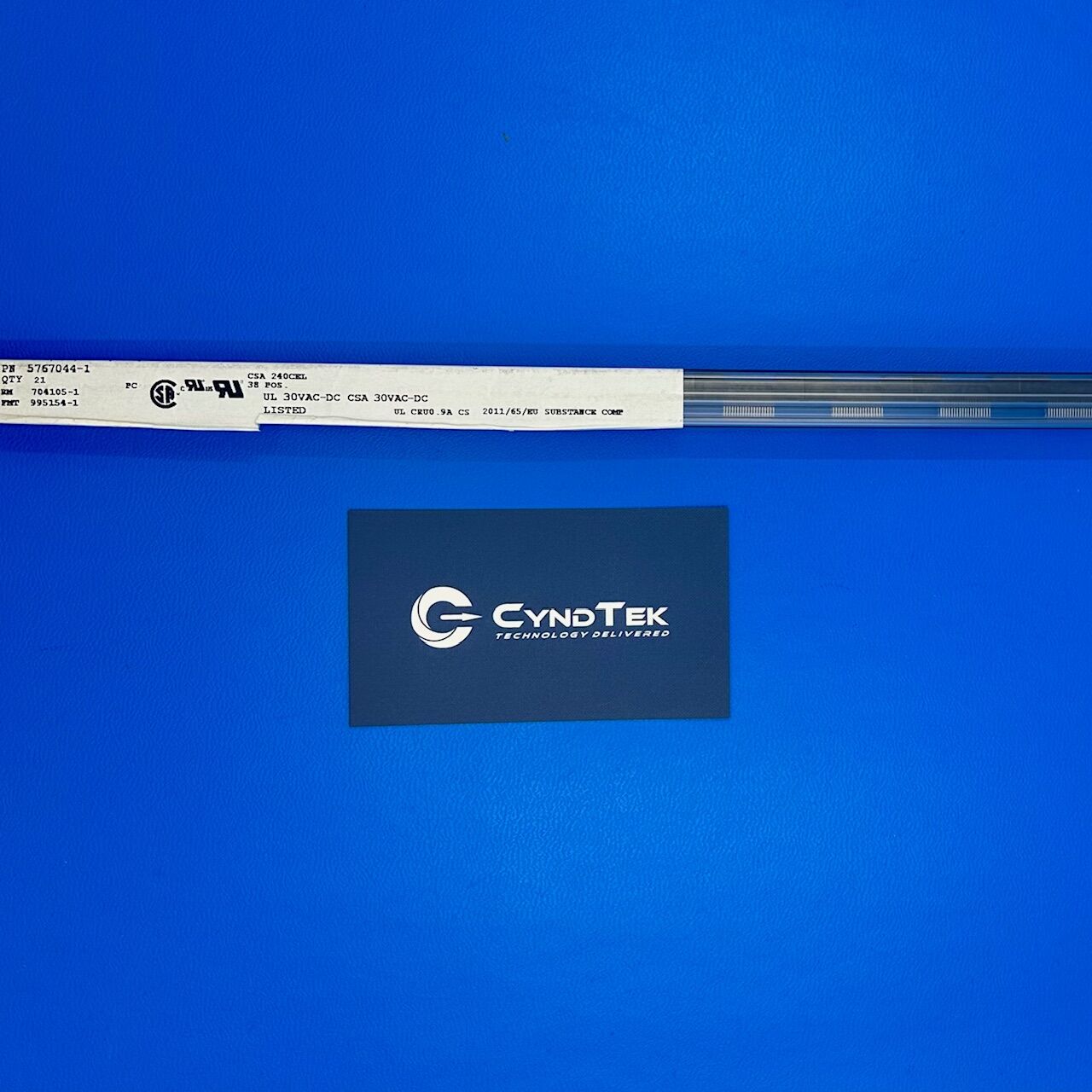

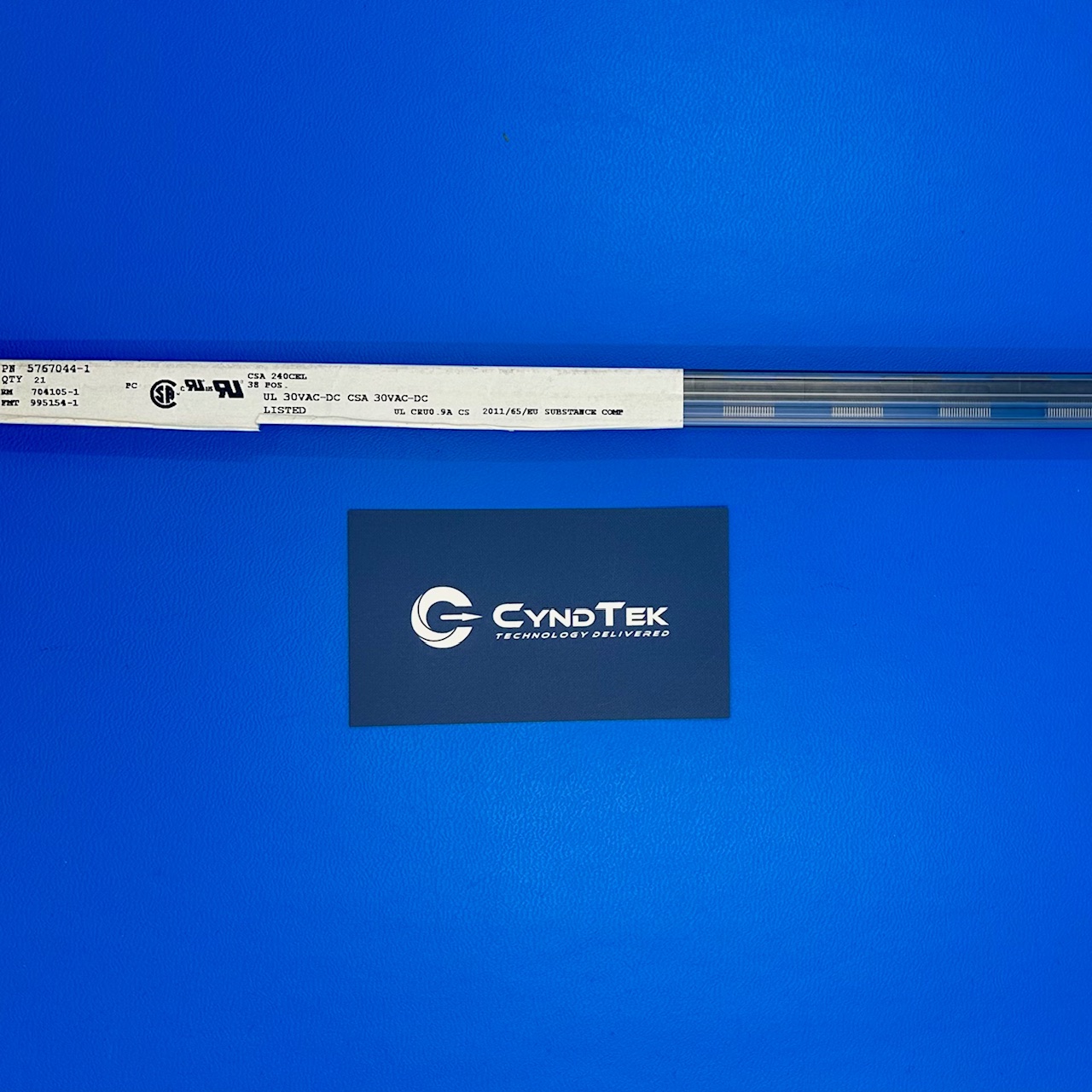

5767044-1 Specifications
Manufacturer: TE Connectivity / AMP
Product Category: Connector
Connector Type: Board-to-Board / Mezzanine Receptacle
Number of Positions: 38
Pitch: 0.64 mm
Rows: 2
Mounting Style: Straddle Mount / Board Edge
Contact Plating: Palladium-nickel or equivalent performance
Termination Style: Surface mount / straddle
Operating Temperature Range: –55 °C to +125 °C
Current Rating: Typically ~11.5 A total (varies by application)
Voltage Rating: Standard low-voltage signal levels
Housing Material: High-performance polymer suitable for dense connector environments
Category: Connector
Key Features:
Moreover, the 5767044-1 is a high-density board-to-board receptacle designed for signal-rich system interconnects. Additionally, its fine 0.64 mm pitch supports dense PCB layouts without sacrificing signal integrity. Also, the mezzanine-style straddle mount provides strong mechanical retention for rugged environments. Furthermore, the dual-row contact design supports reliable signal paths across mating boards. Finally, the connector’s materials and finish ensure good contact durability in repeated mating cycles.
Applications:
High-speed board-to-board interconnects
Embedded system daughter/parent card links
Telecommunications backplanes
Networking equipment interfaces
Industrial automation modules
Product Overview:
The 5767044-1 from TE Connectivity is a compact, fine-pitch board-to-board connector that enables high-density signal routing between PCBs. Consequently, its 38 positions and 0.64 mm pitch make it ideal for modern electronics where board space is limited. Also, the straddle mount / board edge format simplifies mechanical integration while maintaining robust electrical contacts. Furthermore, its broad operating temperature range and durable material choices support use in industrial and commercial platforms. Therefore, this connector is suited for embedded systems, telecom infrastructure, and other high-density interconnect applications that demand reliable board-level connections. Moreover, the dual-row design ensures consistent performance across many cycles. As a result, engineers can use the 5767044-1 to streamline board stacking and signal distribution without compromising durability or layout density.
