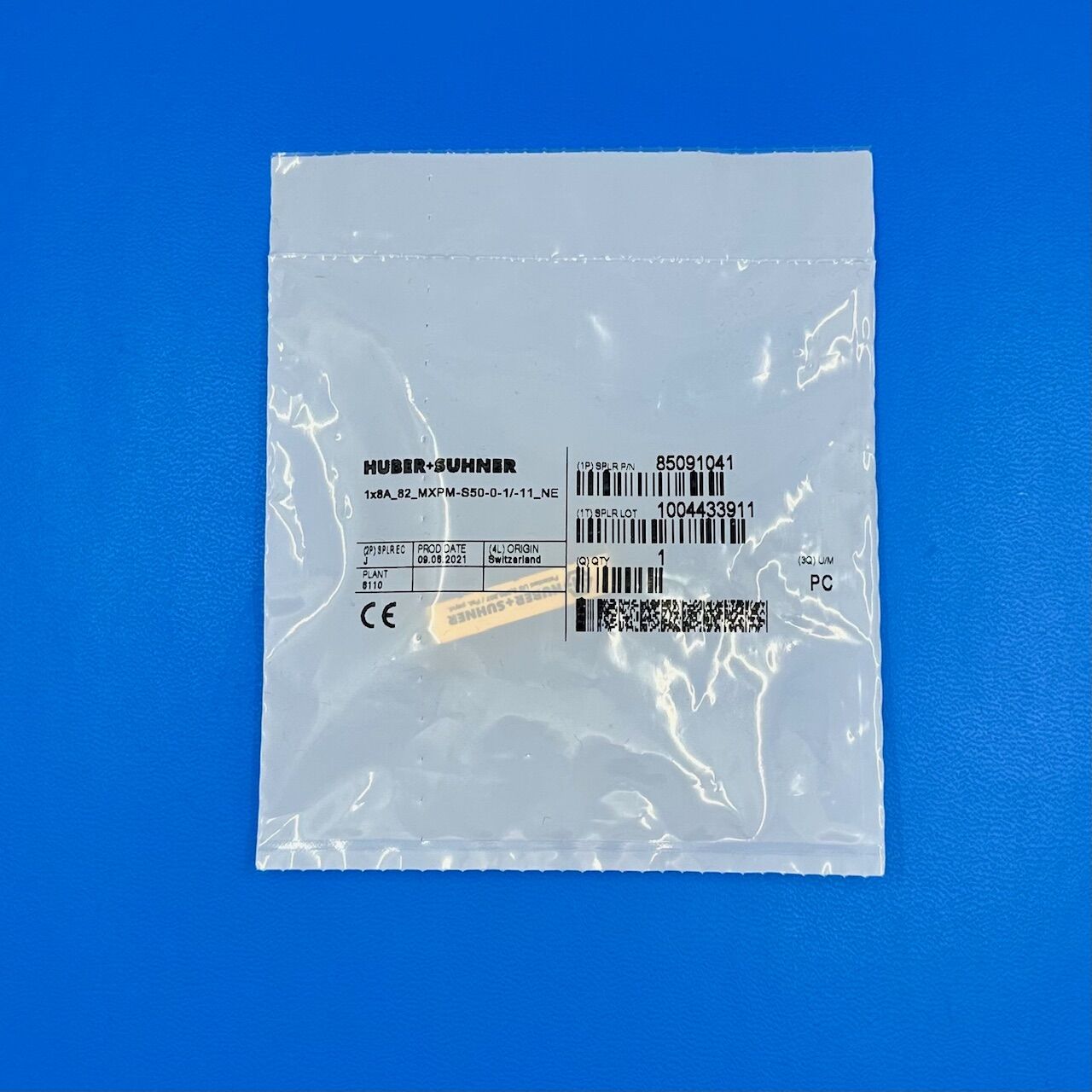

85091041

85091041 Specifications

Manufacturer: Huber+Suhner
Part Number: 85091041
Product Type: Coaxial Connector
Connector Type: MXPM Straight PCB Jack (Female)
Impedance: 50 Ohms
Mounting Type: Surface Mount
Termination Style: Solder
Frequency Range: Up to 90 GHz
Pitch – Mating Interface: 2.54 mm (0.1 inch)
Locking Mechanism: Magnetic
Housing Material: Brass with Gold Finish
Contact Material: Not specified
Operating Temperature Range: Not specified
Compliance: RoHS Compliant

Key Features

The 85091041 MXPM coaxial connector is designed to support high-frequency applications up to 90 GHz. Its 50-ohm impedance ensures optimal signal integrity for high-speed data transmission. The connector’s straight PCB jack configuration and 2.54 mm pitch facilitate efficient PCB layout. The magnetic locking mechanism provides secure and reliable mating, enhancing ease of use in test and measurement environments. The gold-finished brass housing offers durability and resistance to corrosion, ensuring long-term performance.

Applications

High-speed digital testing requiring frequencies up to 90 GHz
Semiconductor testing environments demanding reliable multicoax solutions
Test and measurement equipment for evaluating high-frequency components
Automated test equipment (ATE) setups needing secure and repeatable connections
Communication systems development involving E-band frequency ranges

Product Overview

The 85091041 MXPM coaxial connector from Huber+Suhner offers a high-performance solution for applications requiring frequencies up to 90 GHz. Its 50-ohm impedance and straight PCB jack design ensure efficient signal transmission and seamless integration into PCB layouts. The magnetic locking mechanism simplifies the mating process while providing a secure connection, making it particularly suitable for test and measurement applications. The gold-finished brass housing enhances the connector’s durability and resistance to environmental factors. This connector is ideal for high-speed digital testing, semiconductor evaluations, and other applications where high-frequency performance and reliable connections are critical.
